No monitor audio output
Is the audio output from the monitor set at "Variable" or "Fixed" on the menu screen?
YES
NO
Check IC3301(CPU) and its peripheral circuits.
Are there the audio signal outputs at pins (19)(AV_OUT_L) and (20)(AV_OUT_R) of IC3301 (CPU)?
YES
NO
Check the line between IC3301 and J502 and their peripheral circuits.
Check the Cable and connected equipment condition.
No connect network
Does the signal come to 1pin of LAN-jack J509?

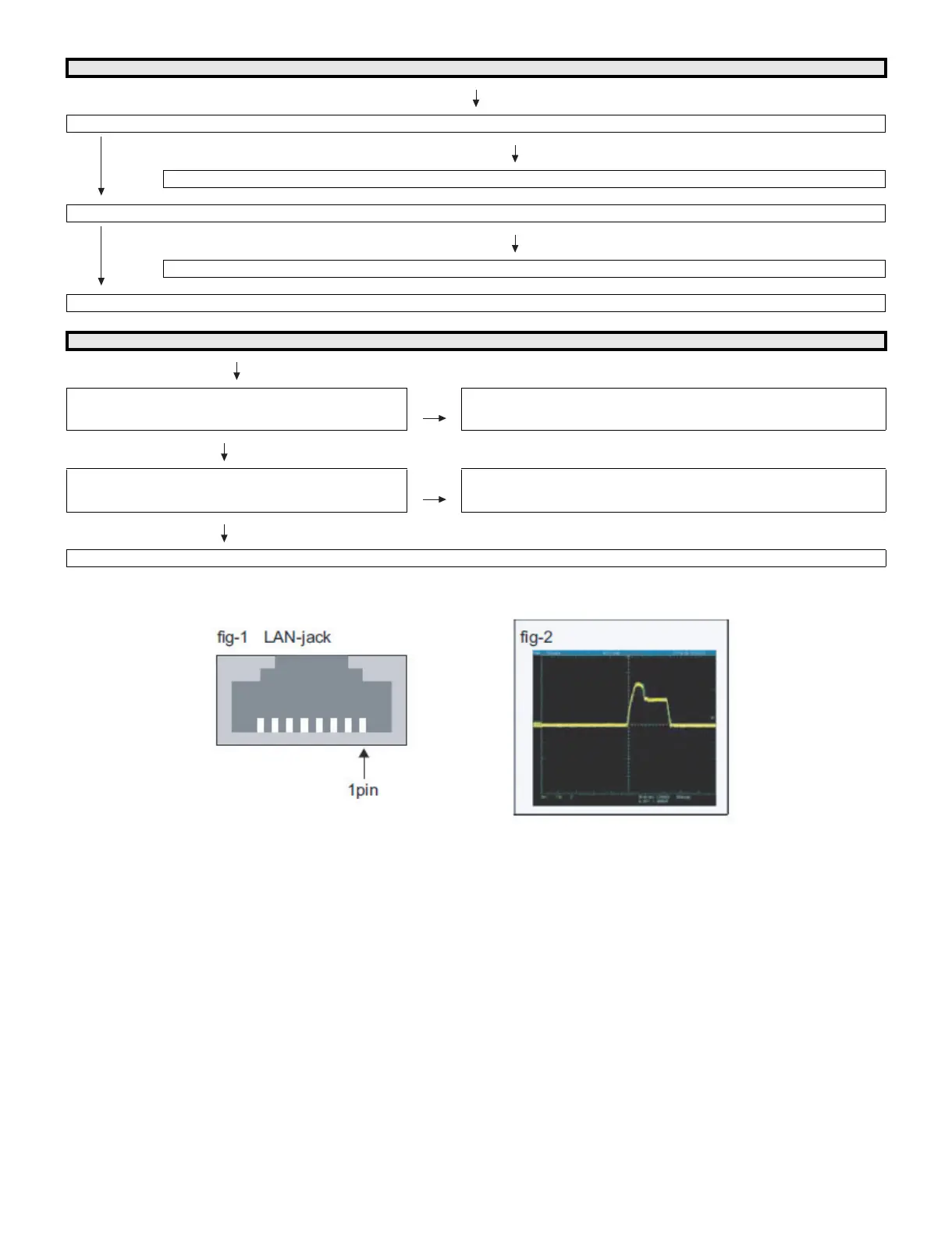

(see fig-1, fig-2)
NO Check the interface device and peripheral circuits.
YES
Does the signal come to 28 pin of IC3301?
(see fig-2)
NO Check the line between J509 and IC3301.
Check the LAN-jack J509
YES
Check IC3301 and its peripheral circuits.
J509

Sharp LC-60LE660U Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	60 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Edge-Lit LED
Contrast ratio (dynamic)	4000000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	AquoMotion 240
3D	No
Teletext function	-
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Package depth	200 mm
Package width	1521 mm
Package height	949 mm
Package weight	31700 g
Sustainability certificates	ENERGY STAR
Cables included	AC

Weight and Dimensions

Depth (with stand)	343 mm
Height (with stand)	824 mm
Weight (with stand)	24600 g
Depth (without stand)	86 mm
Width (without stand)	1355 mm
Height (without stand)	781 mm
Weight (without stand)	22800 g
