CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

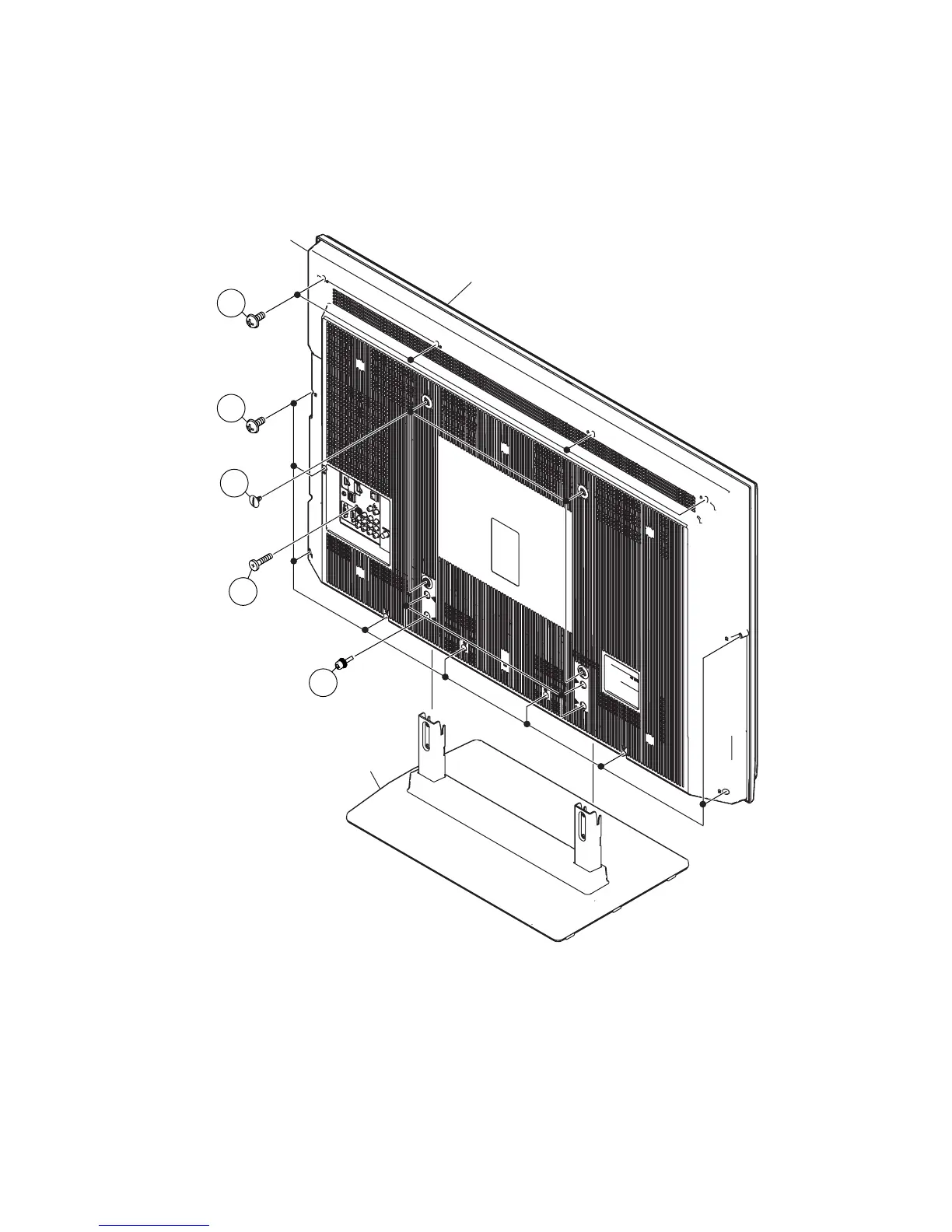

1. Remove the 4 lock screws and detach the Stand.
2. Remove the 4 VESA Hole Covers.
3. Remove the 1 lock screw.
4. Remove the 4 lock screws, 9 lock screws and detach the Rear Cabinet.
Stand
Front Cabinet
Rear Cabinet
4
4
3
2
1
