Sharp MD-MT20 - P.W. Board Wiring (1;5)

MD-MT20/20C/20W
– 31 –
A
B
C
D
E
F
G
H
1
23456

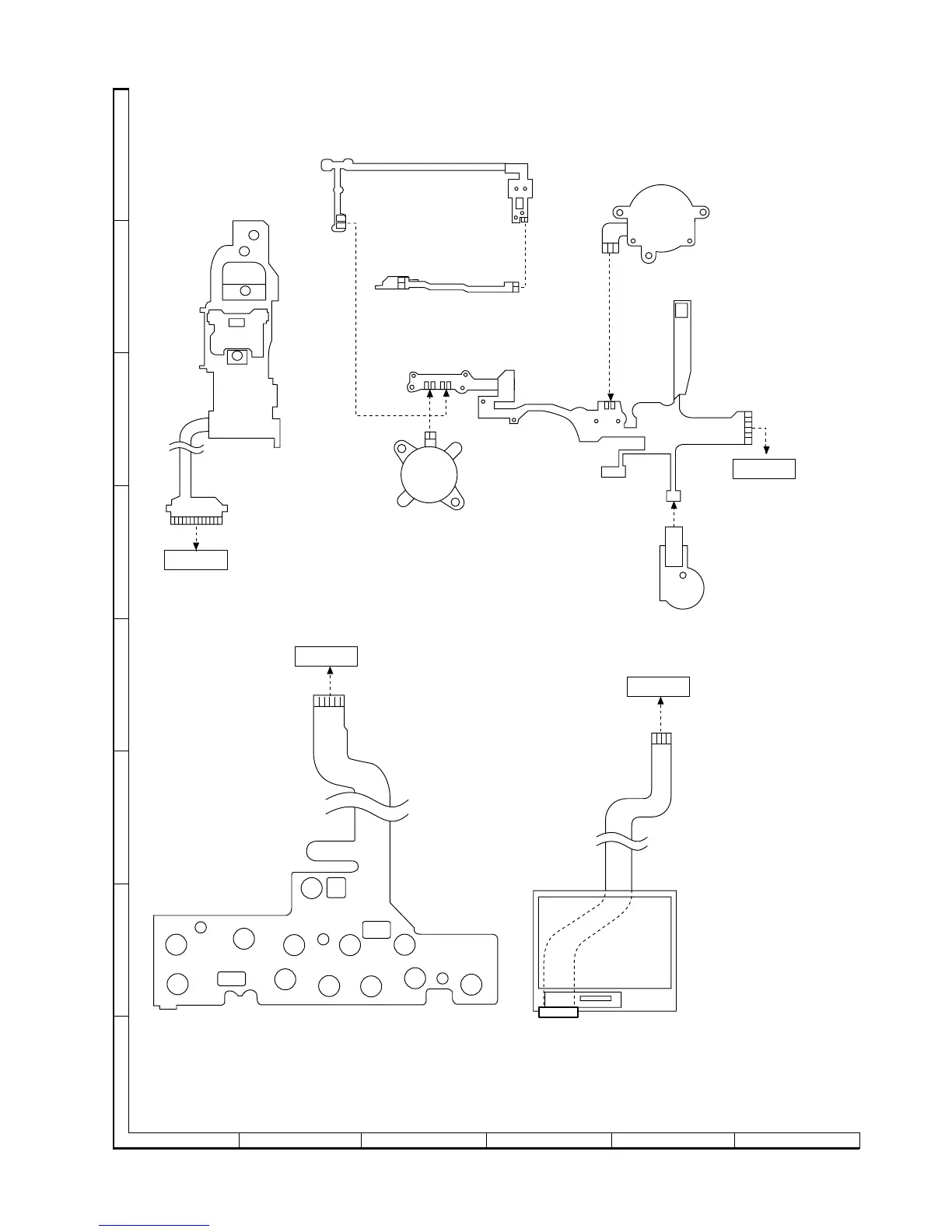

Figure 31 WIRING OF P.W.BOARD (1/5)
OPTICAL PICKUP
UNIT(13)
MAGNETIC HEAD FLEXIBLE PWB(18)
MAGNETIC
HEAD(24)
MECHANISM
FLEXIBLE PWB
M902
SLED MOTOR
M903
HEAD
UP/DOWN MOTOR
PH901
INTERRUPTER
M901
SPINDLE MOTOR
SW902
DISC
PROTECT
TO MAIN PWB
P32 5-H
CN601
TO MAIN PWB
P32 3-C
CN482
LCD Ass'y (214)
KEY SWITCH FLEXIBLE PWB Ass'y (213)
TO MAIN PWB
P32 2-C
CN451
CN101
TO MAIN PWB
P32 4-H
