MD-MT20/20C/20W
A
B
C
D
E
F
G
H
1
23
456

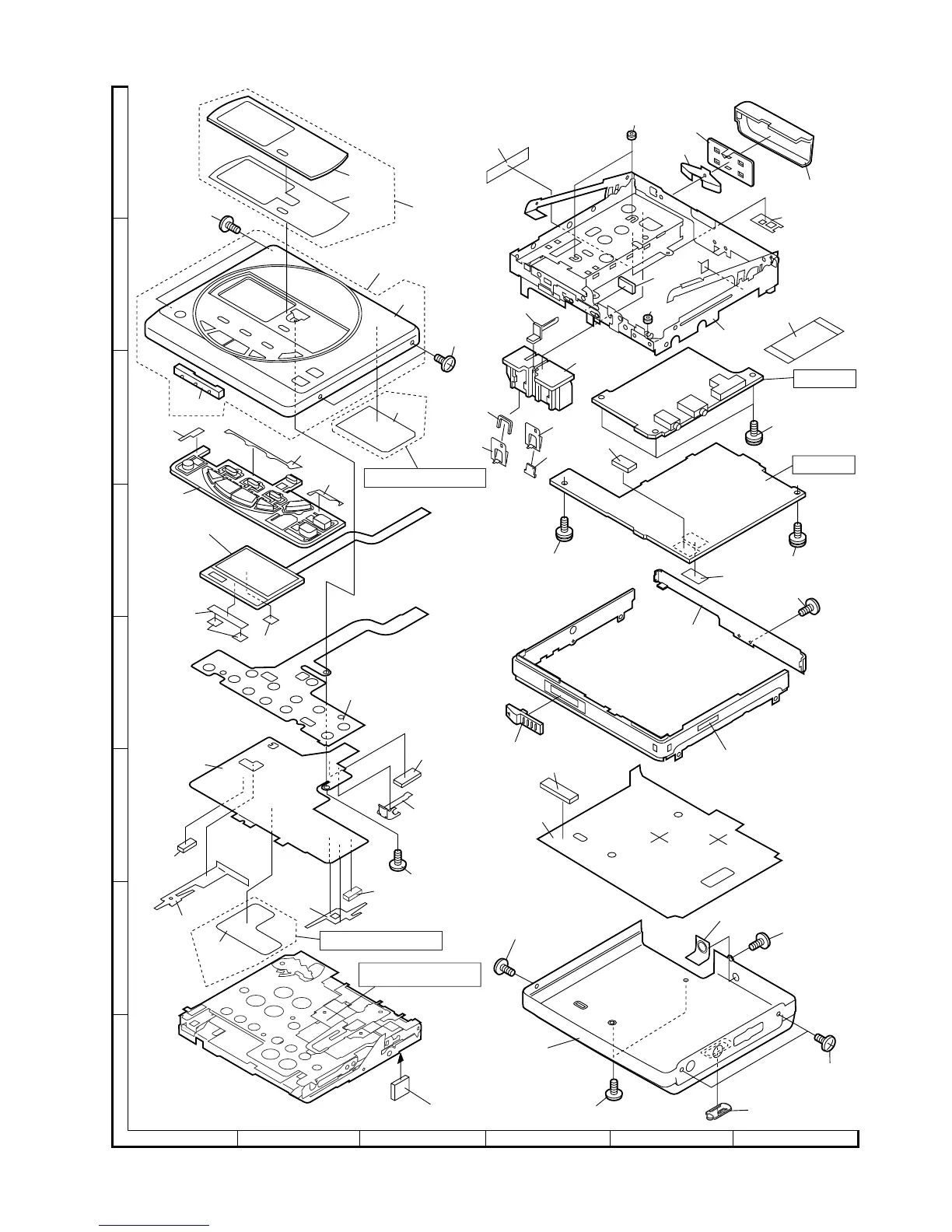

Figure 6 CABINET EXPLODED VIEW
– 6 –
MD MECHANISM
202-2
202-1
202
201
201-1
603x2
203
205
207
206
204
201-2
214
216x2
215
213
217
209
208
211
601
212
210
224
223
240
242
601
602
602
244
602x3
225
243
245
238
237
229x2
230
239
231
603x2
241
226
228
227
PWB-A2
PWB-A1
236
235
234
233
232
218
603x2
221
603x2
603x2
603
222
220
219
219
246
MD-MT20W Only
MD-MT20W Only
247
50
52
Table of Contents
Table of Contents
1
Safety Precaution for Service Manual (MD-Mt20W Only)
2
Specifications
3
Names of Parts
4
Power Source
5
Recording Using the Optical Digital Cable
5
Operation Manual
5
Quick Guide (MD-Mt20 Only)
8
Disassembly
10
Removing and Reinstalling the Main Parts
11
Test Mode
12
Adjustment
12
Notes on Schematic Diagram
25
Types of Transistor and Diode
25
Voltage
26
Block Diagram
27
Schematic Diagram
28
Wiring Side of P.w.board
31
Waveforms of MD Circuit
36
Trouble Shooting
37
Function Table of IC
40
Circuit Description
42
