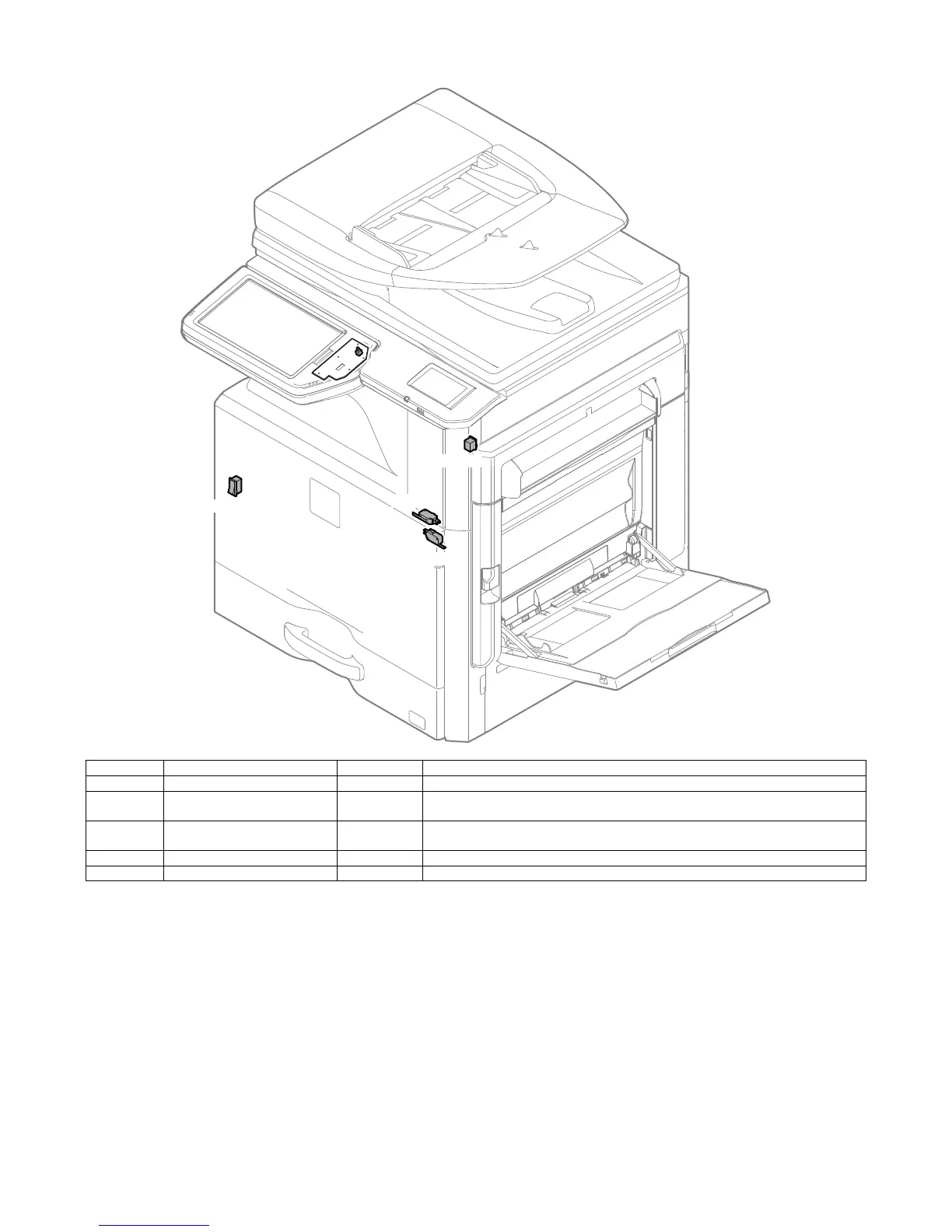

MX-3610N EXTERNAL VIEW AND INTERNAL STRUCTURE 3 – 14
B. 26cpm/36cpm/31cpm(A) machine
Signal name Name Type Function/Operation
DHSW Dehumidifier heater switch Seesaw switch Turns ON/OFF the power line of the dehumidifier heater.
DSW_F Front door open/close switch Micro switch Detects open/close of the front door. Detects ON/OFF of the power line of the fusing unit,
the motors, and the LSU laser.
DSW_R Right transport unit (right door)
open/close switch
Micro switch Detects open/close of the right paper transport section (right door). Detects ON/OFF of the
power line of the fusing unit, the motors, and the LSU laser.
MSW Main power switch Seesaw switch Turns ON/OFF the main power.
PWRSW Operation panel power switch Push switch Turns ON/OFF the power on the secondary side.
