BEFORE USING THE MACHINE
PART NAMES AND FUNCTIONS
(1) Automatic document feeder
It automatically feeds and scans multiple originals. 2-sided
originals can be automatically scanned. For the MX-B476W,
both sides of 2-sided originals can be automatically scanned at
one time.
►
USING THE AUTOMATIC DOCUMENT FEEDER (page 16)
(2) Document feeding area cover
Open this cover to remove an original misfeed or clean the
paper feed roller.
(3) Original guides
These guides help ensure that the original is scanned correctly.
Adjust the guides to the width of the original.
(4) Document feeder tray
Place the original.
Place the original with the print side facing up.
(5) Original exit tray
The original is discharged to this tray after scanning.
(6) Output tray
Output is delivered to this tray.
(7) Operation panel
This panel hosts the [Power] button, [Power Save]
button/indicator, error indicator, [Home Screen] key, main power
indicator, data notification indicator, and touch panel.
Use the touch panel to operate each of these functions.
► OPERATION PANEL (page 13)
(8) Main power indicator
This lamp lights up when the machine's main power switch is in
the “ ” position.
(9) [Power] button
Use this button to turn the machine's power on and off.
(10) USB port (A type)
This is used to connect a USB device such as a USB memory
device to the machine.
Supports USB 2.0 (Hi-Speed).
If USB memory devices are connected to both the front and
back sides, only the USB memory device that was inserted first
will be recognized.
(11) Inner finisher*
This staples paper.
(12) Tray 1
Store paper in this tray. A maximum of 500 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(13) Tray 2 (when a 600-sheet paper feed unit is installed)*
Store paper in this tray. A maximum of 600 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(14) Tray 3 (when two 600-sheet paper feed units are installed)*
Store paper in this tray. A maximum of 600 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(15) Tray 4 (when three 600-sheet paper feed units are installed)*
Store paper in this tray. A maximum of 600 sheets (80 g/m
2
(20
lbs.)) of paper can be loaded.
(16) Front cover
Open this cover to replace a toner cartridge.
* Peripheral device. For more information, see the User's Manual.

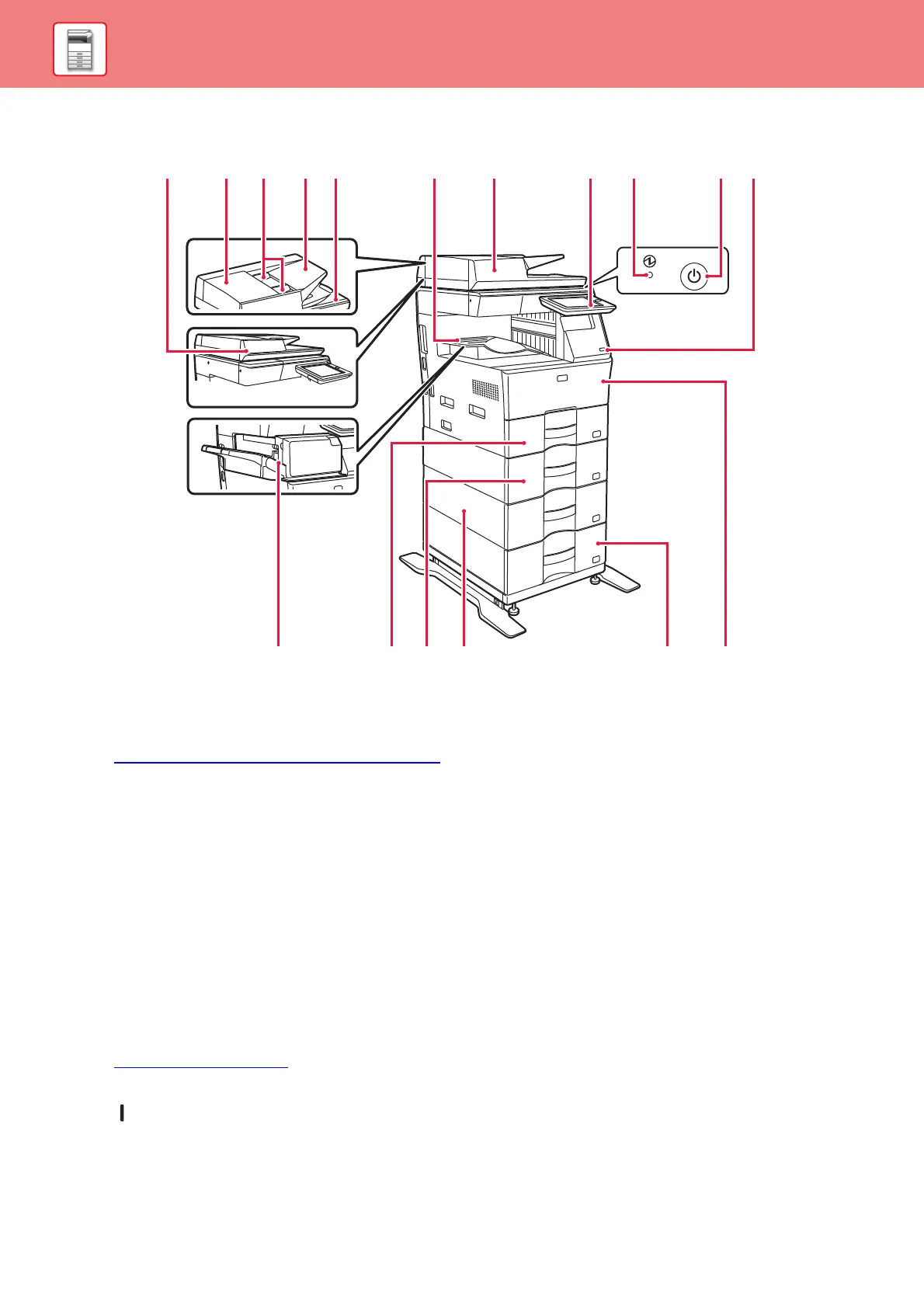

(3)(2) (4) (5) (1) (7) (8)(6) (10)(9)(1)
