MX-C301 MX-C301/C301W(MAIN UNIT) 2 – 4
G. Specifications setting
Use SIM26 to set to the specifications according to the customer's
request.
To customize one of the following items after destination setting,
change the set value of the item.
3.Image quality check
A. Execution items
Execute the checking items about the printing quality. Regarding
the specific procedures for the printing quality, refer to the Service
Manual [5] ADJUSTMENT.
B. Description
(1) Print engine image distortion confirmation and
adjustment
This adjustment performs the print engine image distortion adjust-
ment, the OPC drum phase adjustment, and the color registration
adjustment simultaneously.

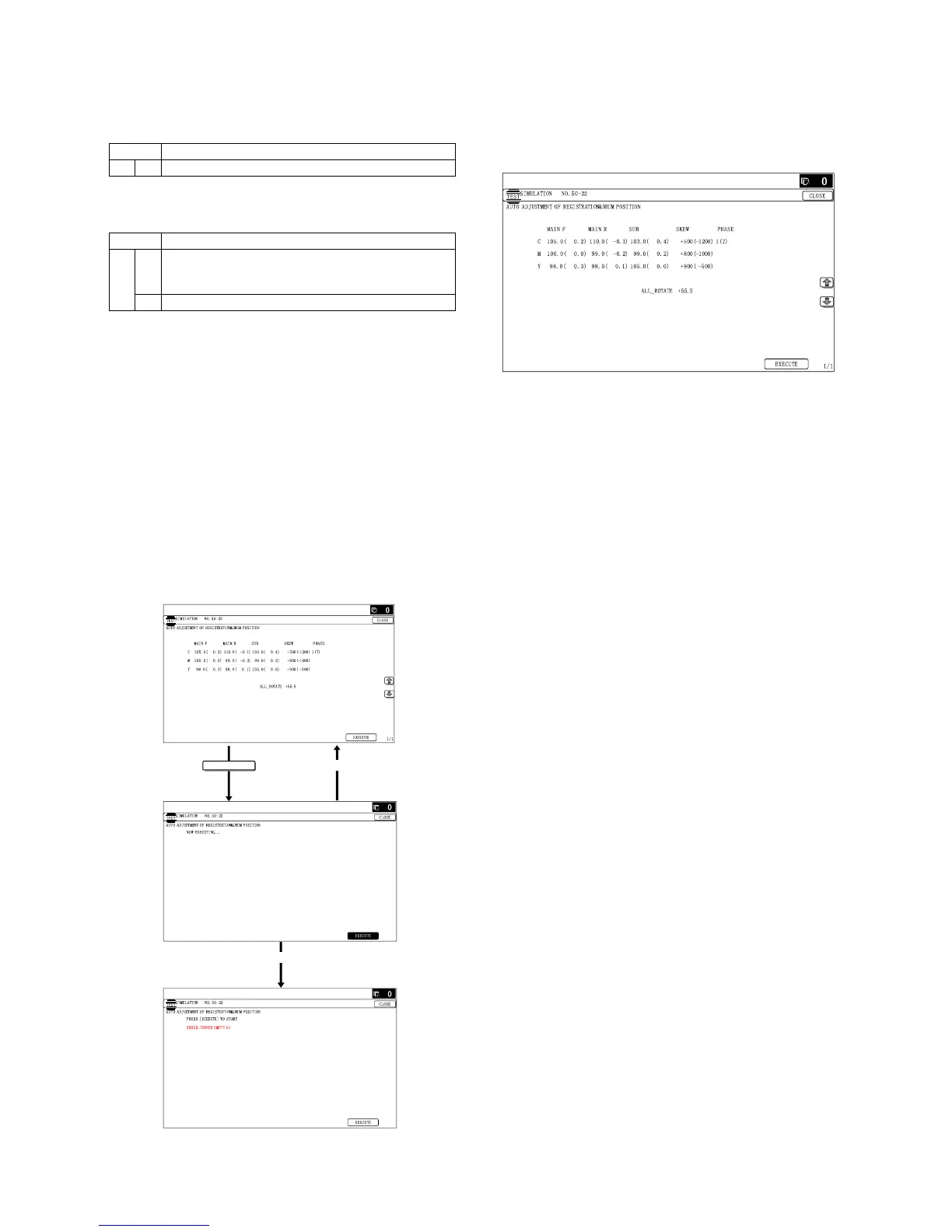

1) Enter SIM50-22 mode and perform the auto registration adjust-
ment by pressing [EXECUTE] key.
2) When the adjustment is completed, [EXECUTE] key returns to
the normal display, and the value of the adjustment result is dis-
played.
The current skew level for each color is displayed on the SKEW
display section.
3) Make test print in the simulation mode for checking whether
the void, off-center and printing quality are correct.
If the test results are not correct, refer to [5] ADJUSTMENT
from the Service Manual and perform the adjustments.
- Void ; SIM50-01/50-10
- Printing position ; SIM50-10
- Off-center, Registration ; SIM50-20
When the result of the void and the printing position are not
suitable, perform [ADJ4] by referring the [5] ADJUSTMENT of
the Service Manual.
When the result of the off-center is not adequate, perform
[ADJ5] by referring the [5] ADJUSTMENT of the Service Man-
ual.
- Printing quality ; SIM64-5
When the result of the print quality is not good, perform
[ADJ10] by referring the [5] ADJUSTMENT of the Service
Manual.
SIM No Content
26 6 Destination setting
SIM No Content
26
18
Toner save mode enable/disable setting
* For the other destinations, this setting is made by
the user program.
53 Auto color calibration enable/disable setting
Error occurs
(;(&87(
Successfully Finished
To Previous Page
