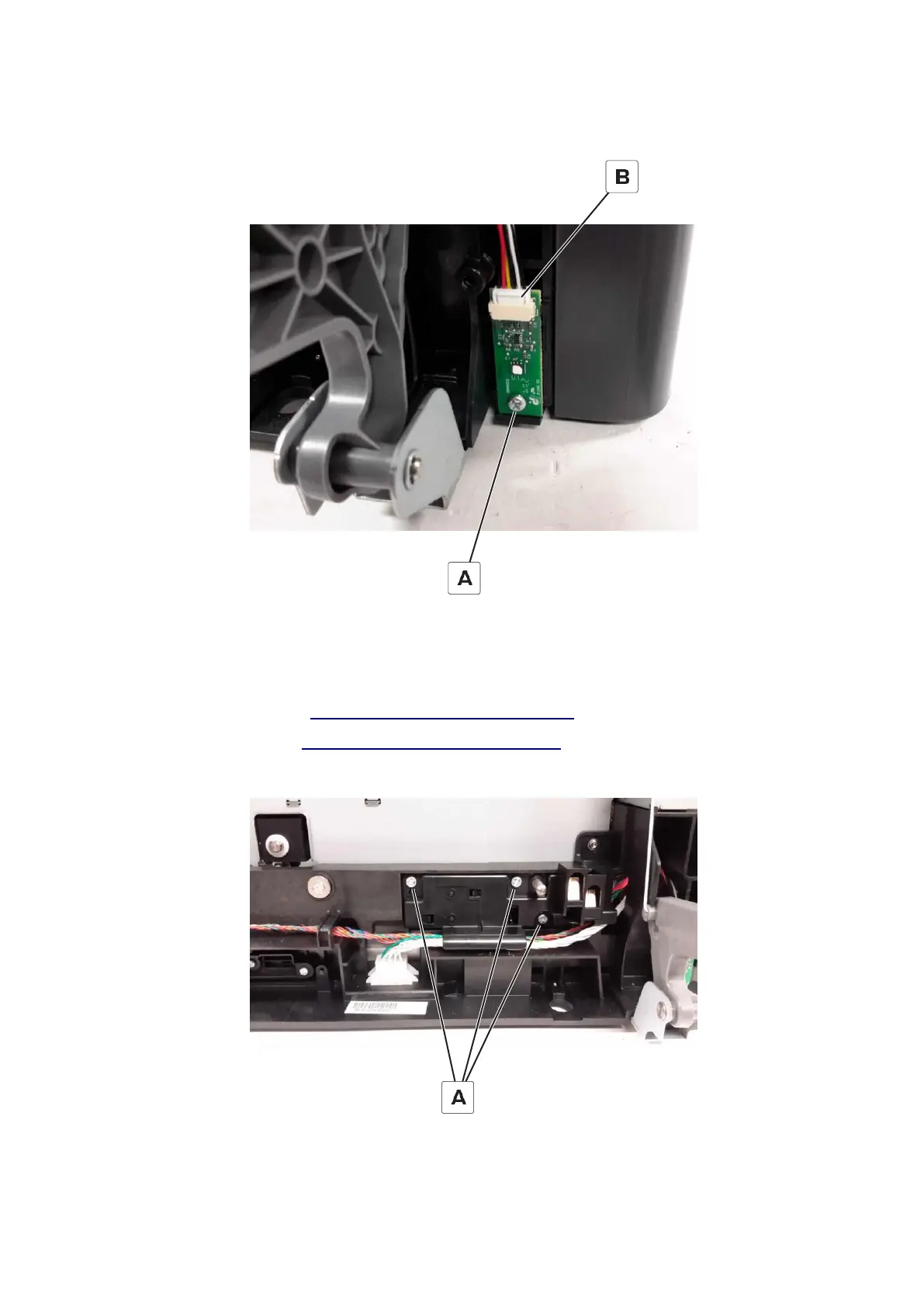

Remove the screw (A), disconnect the cable (B), and then remove the sensor.
Sensor (paper size) removal
1
2
3
4
Remove the waste toner bottle.
Remove the motor cover. See “Motor cover removal” on page 310 .
Remove the right cover. See “Right cover removal” on page 309 .
Remove the three screws (A).
