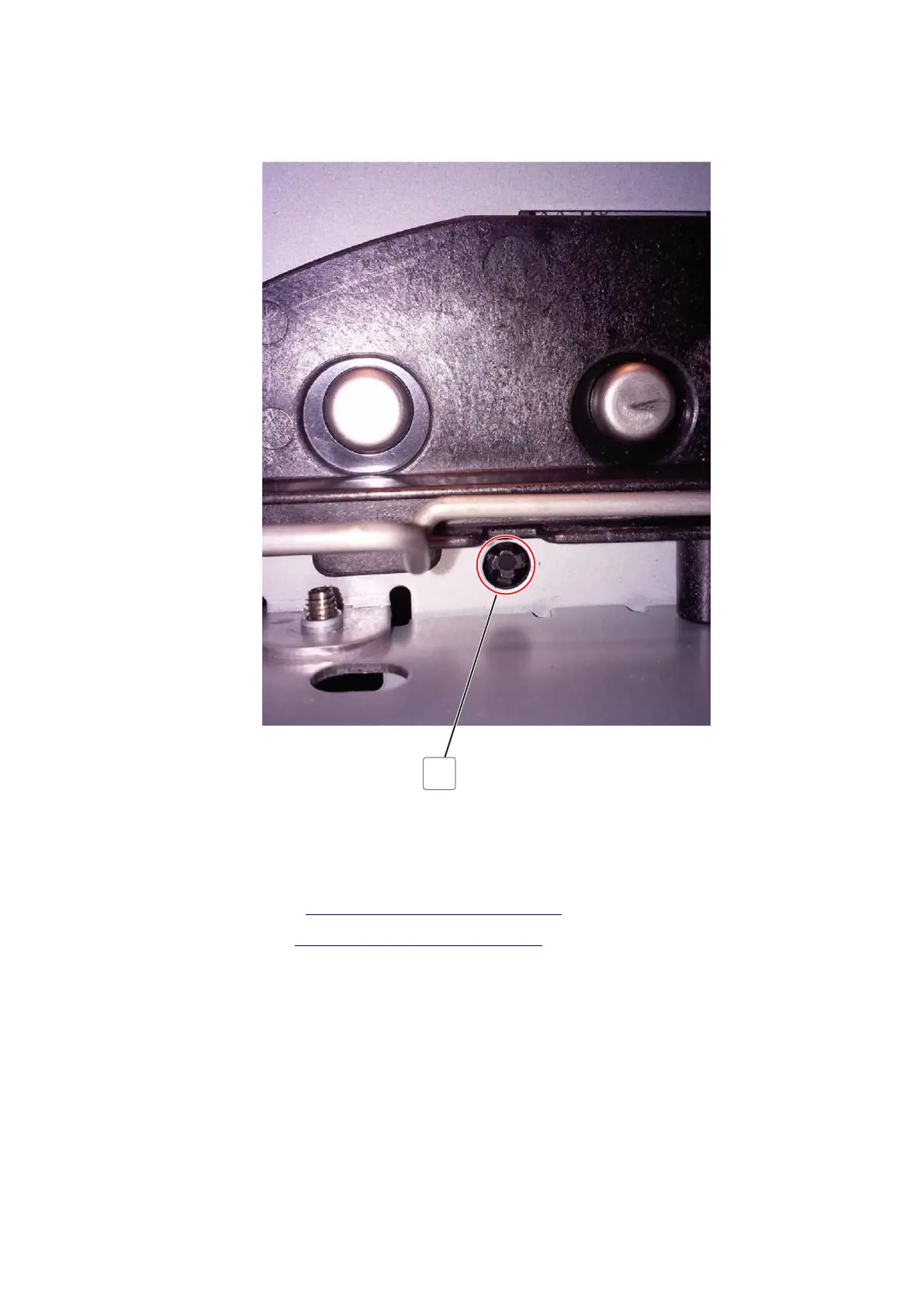

Make sure that the index pin (A) behind the transfer module retract arm is properly aligned.
D
Sensor (MPF paper present) removal
1
2
3
Remove the waste toner bottle.
Remove the motor cover. See “Motor cover removal” on page 310 .
Remove the right cover. See “Right cover removal” on page 309 .
Parts removal
