5028
5

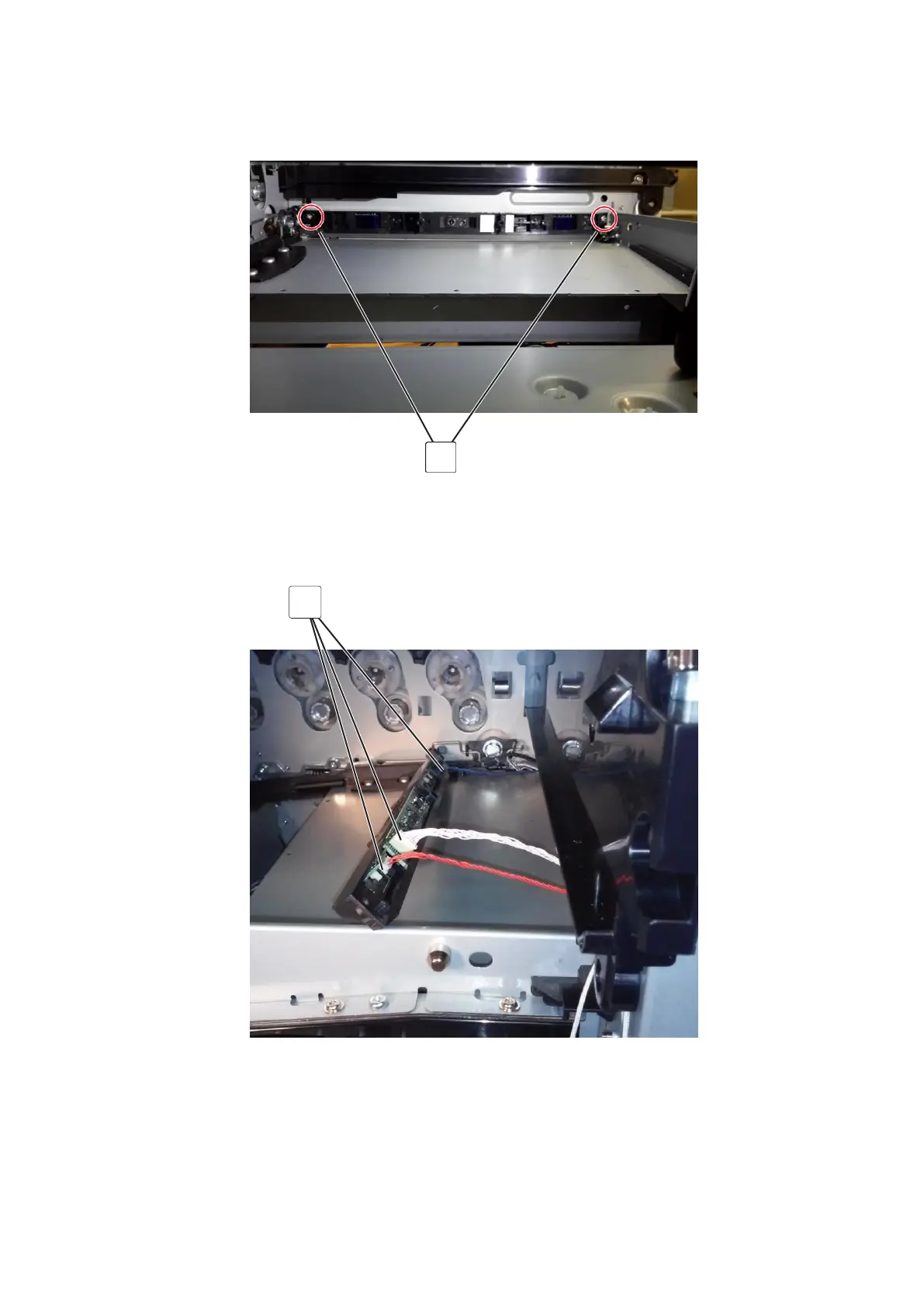

Remove the two screws (B).
B
6
7
Carefully pull the sensor while guiding the black thermistor cable through the hole at the rear of the printer.
Disconnect the three cables (C) from the sensor.
Warning—Potential Damage: Press the tab on the white cable while disconnecting it to avoid damage.
C
Installation note: Remove the protective tape covering the sensor lenses before installing the sensor
assembly.
Parts removal
363
