TPS wiper mechanism removal
1
2
3
4
Remove the waste toner bottle.
Remove the motor cover. See “Motor cover removal” on page 310 .
Remove the right cover. See “Right cover removal” on page 309 .

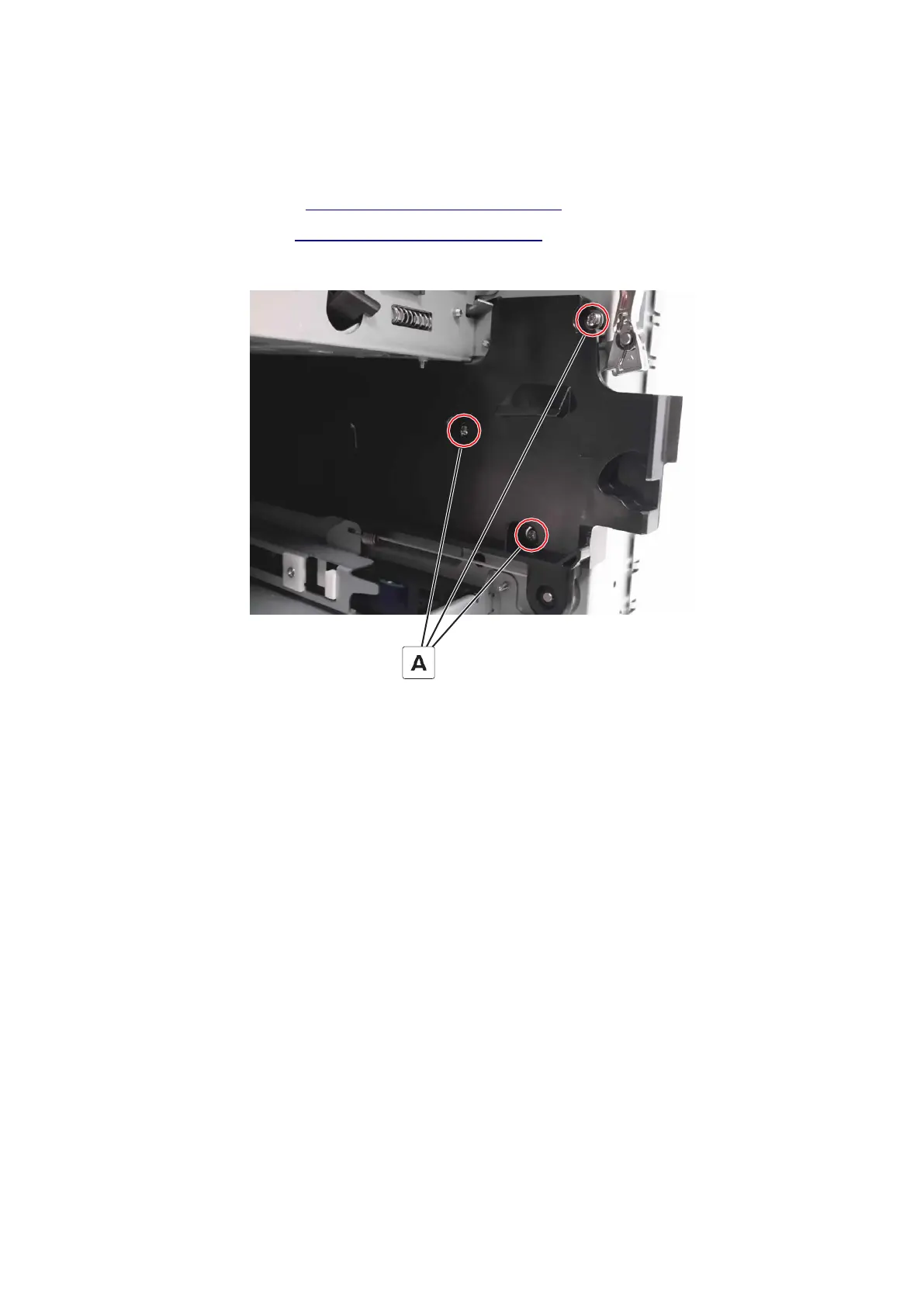

Remove the three screws (A).
Parts removal
