TPS cables removal
1
2
3
4
Remove the controller board shield. See “Controller board shield removal” on page 392 .
Remove the inner controller board shield. See “Inner controller board shield removal” on page 393 .
Remove the controller board. See “Controller board removal” on page 393 .

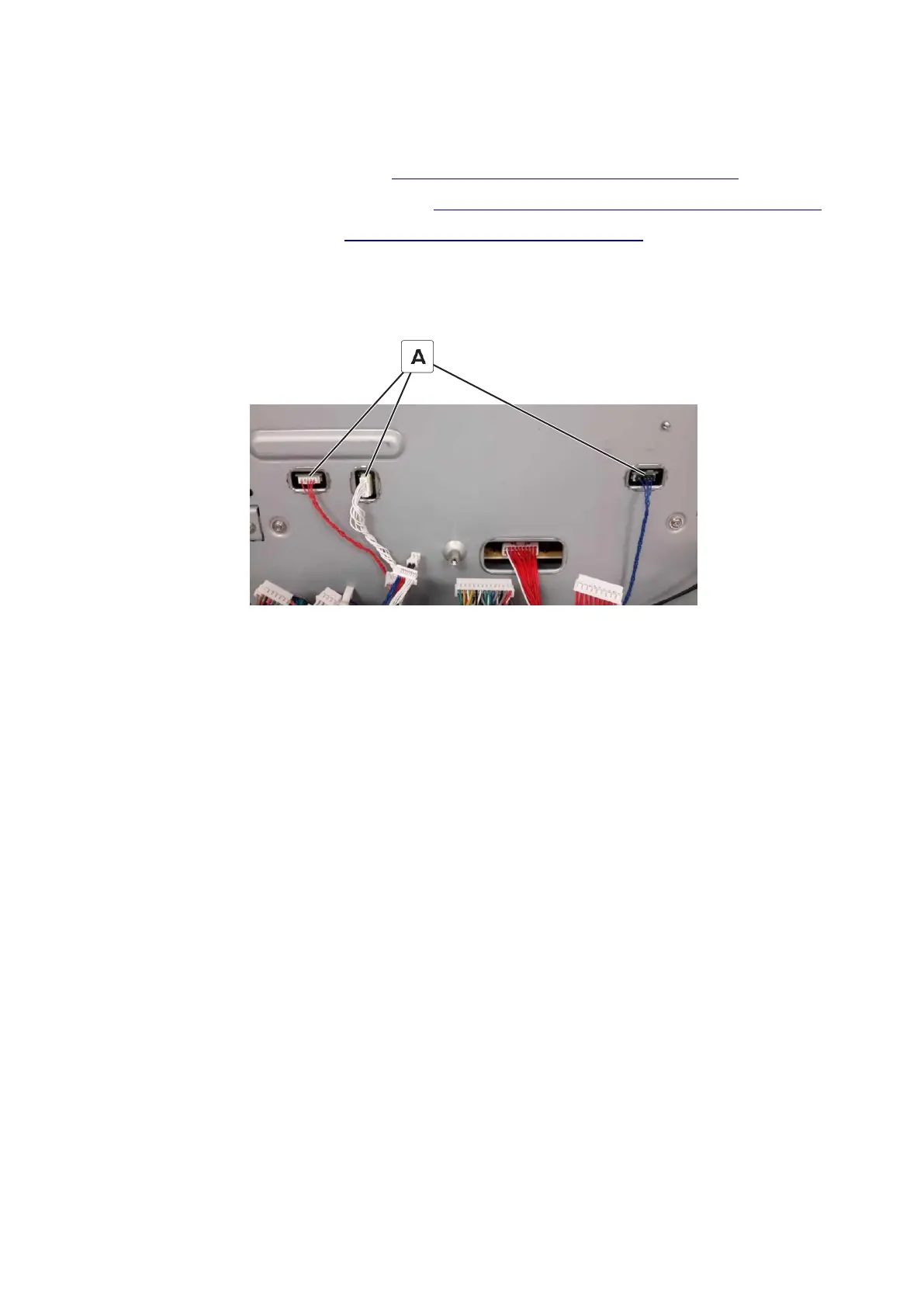

Disconnect the three cables (A) from the sensor.
Warning—Potential Damage: Be careful when disconnecting the cables. Press the tab on the white cable
while disconnecting to avoid damage.
5
Remove the cables.
