550-sheet tray interface cable removal
1
2
3

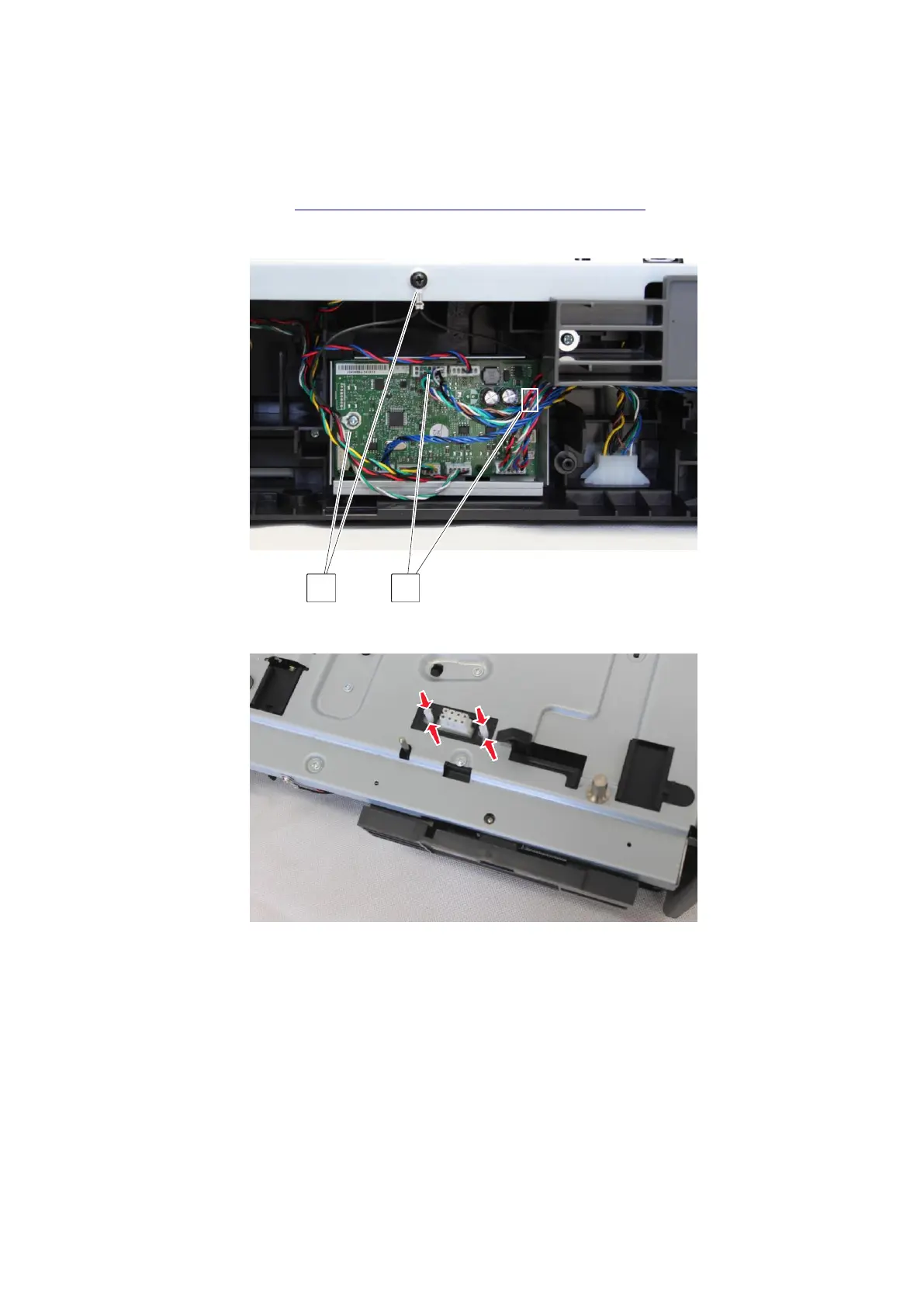

Remove the tray insert.
Remove the right cover. See “550-sheet tray right cover removal” on page 415 .
Disconnect the two cables (A), and then remove the screws (B).
B
A
4
Squeeze, and then push the latches into the tray base to release the cable.
Parts removal
