Sharp MX-C507P - Page 462

5028

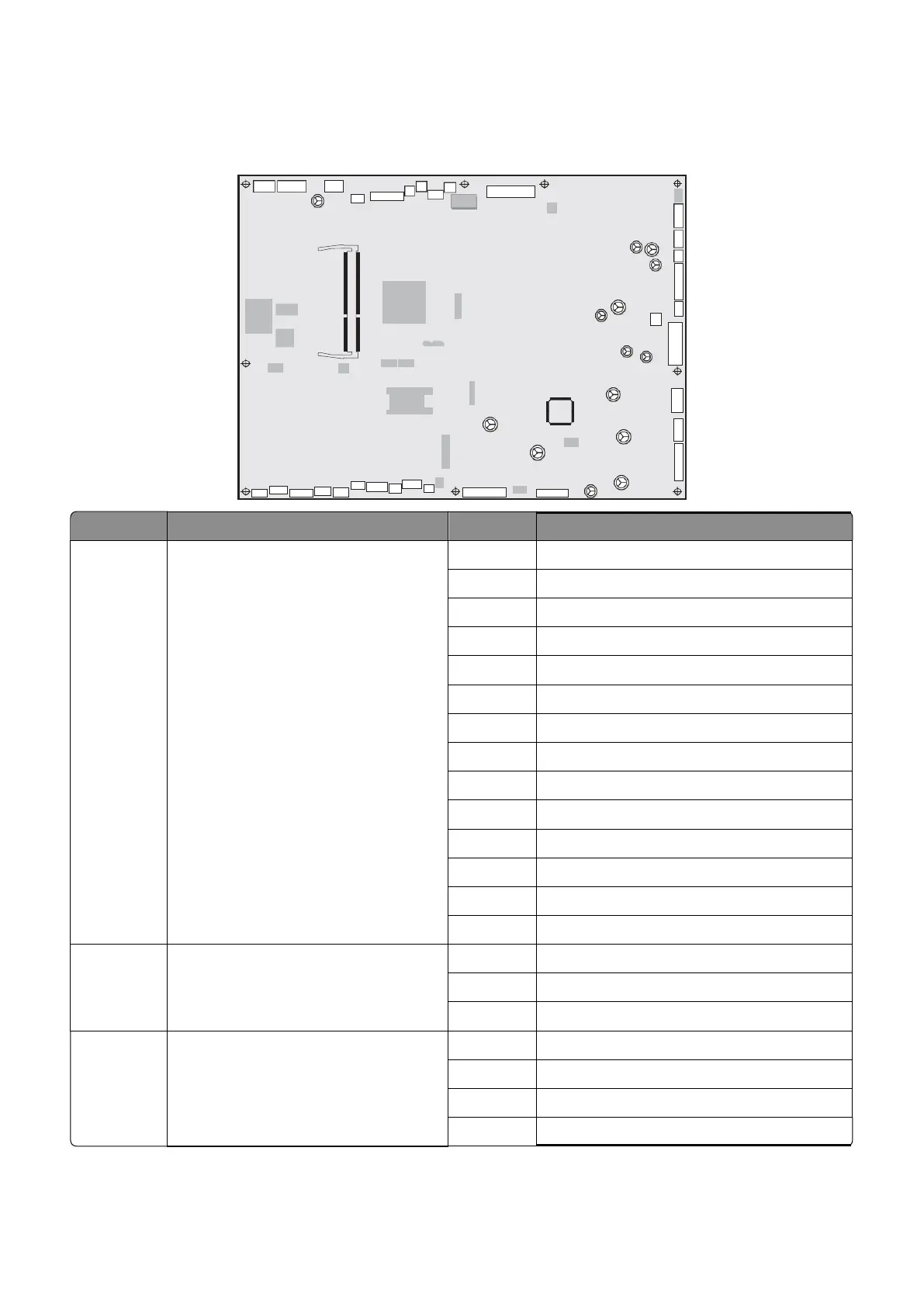

Controller board connectors
JSPKR1
JUIPWR1
JCVR1
JCTM1 JDSNS1
JMIRR1
JPHONE2
JPH1
JLCD1
JFPUSB1
JFSNS
JFAN2
JFAN1
JFUSED1
JETH1
JOUTDC1
JBUSB1
JBOR1
JLVPS1
JUSB1
JCARTP1
JVIPER1
JISP1
JCARTS1
JCARTK1
JTPSAA1
JSC1
JPKSNS1
JWTH1
JSP1
JMTR1
JWT1
JMSNS1 JPSZ1
JBOPT1
JHVPS1
JSHUT1
JTHM1
Component locations
430
Connector
Connects to
Pin no.
Signal
JFSNS1
Fuser / LVPS
1
GND
2
S_FBR1_IN
3
S_FBR2_IN
4
S_FBLT_SNS
5
S_FHE1_IN
6
S_FHE2_IN
7
S_FHE3_IN
8
VS10_FNP
9
S_FNP_IN
10
GND
11
VS10_FXP
12
S_FX_IN
13
GD_FUSER_ID
14
GND
JFAN1
Fuser / LVPS
1
FAN1_FG_IN
2
GND
3
V25_FAN_OUT
JFAN2
Fuser / LVPS
1
GND
2
+25V_FAN
3
FAN2_FG_IN
4
GR_FAN2_PWM
