MX-M1204 MX-M904/M1054/M1204 (MAIN UNIT) 2 – 8
NOTE: Check to confirm that the harness does not enter the
panel.

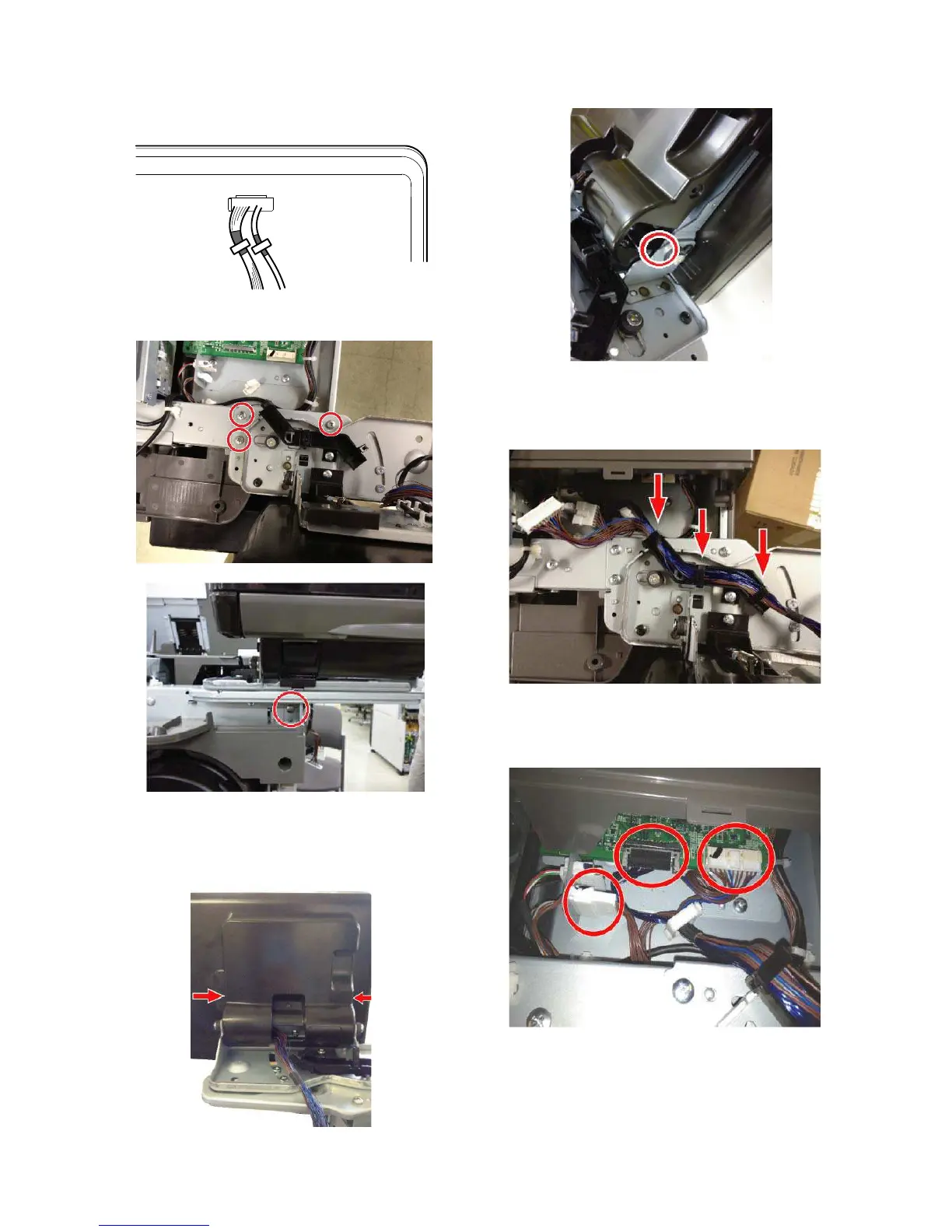

For the reference, refer to the figure below.
4) Attach the operation panel to the machine with the screw.
(Packed items No.5 x4).
5) Attach the panel cover A (Packed items No.8) with the screw.
(Packed items No.4 x2).
NOTE: At that time, pass the harness through the hole in the
cover.
NOTE: Place the cover on the inside of plate.
6) Bind up the harness with clamp as per the following picture.
NOTE: Be careful not to pinch the harness. If it is difficult to
connect the connector, remove the cabinet in the right
side.
7) Pass the harness through the clamp and the wire saddle, and
connect the connector.
NOTE: Be careful not to pinch the lead wires.
To Next Page
