MX-M232D (AR-D36/D37) 5 - 3

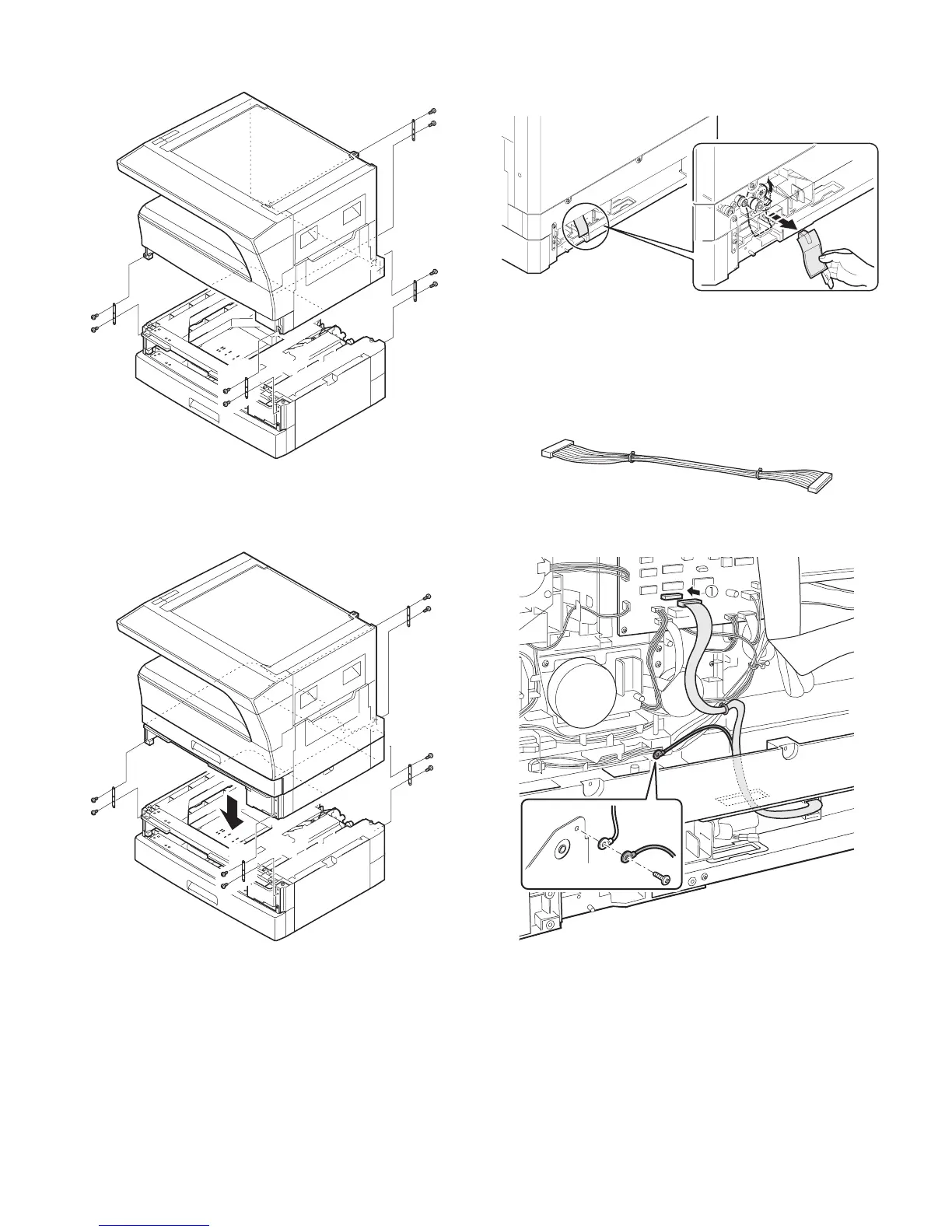

• The machine (1-tray model) + 2x250-sheet paper feed unit

• The machine (2-tray model) + 2x250-sheet paper feed unit

7) Remove the connection gear lock.

Remove the connection gear lock (with the red tug) after setting.

8) Connect the connector

Connect the optional relay harness contained in the 1-tray model (2-tray

model) paper feed unit to the PWB of the machine.

• Optional relay harness

• The machine (1-tray model) + 250-sheet paper feed unit
