7

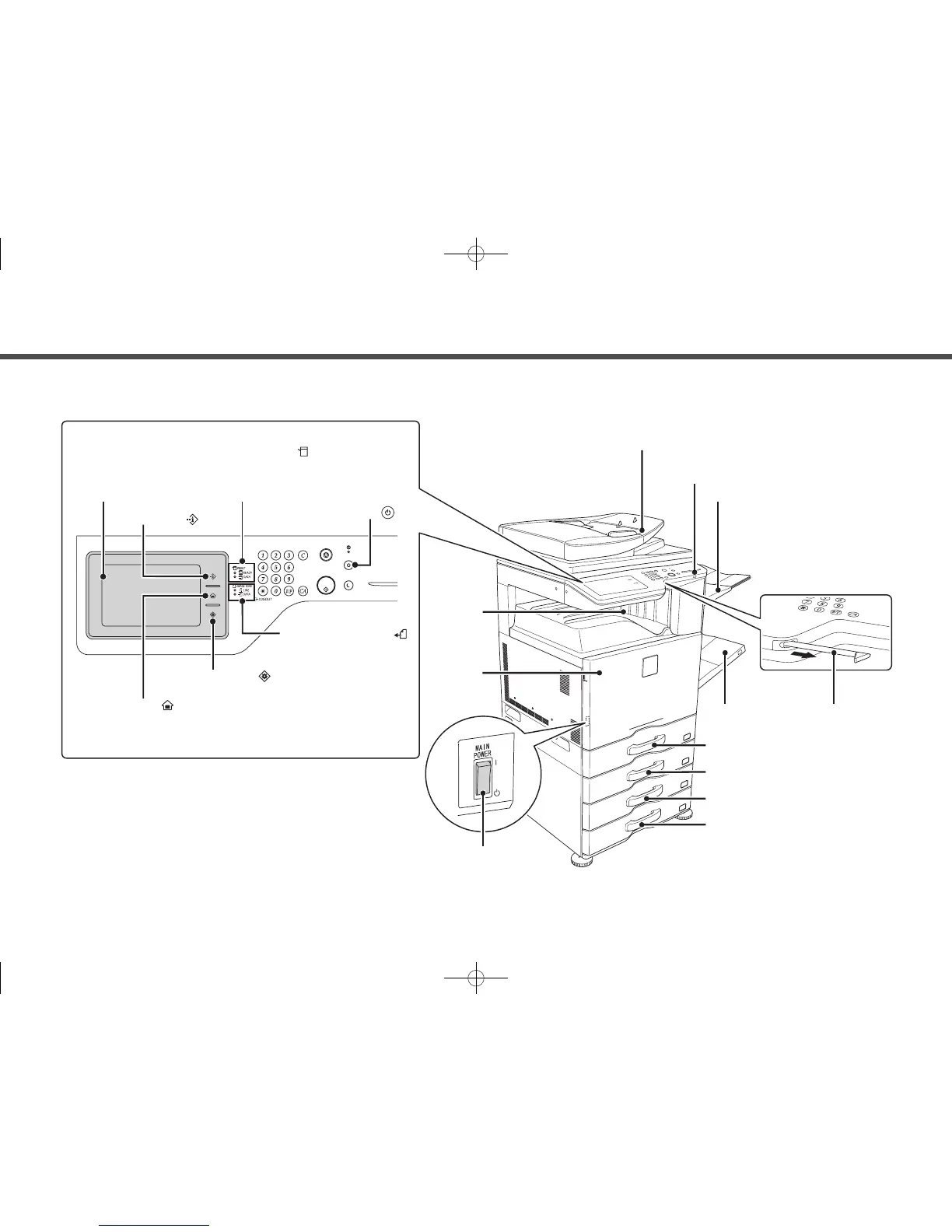

PART NAMES
Main power
switch
Tray 1
Tray 2 (when paper feed tray is installed)*
Tray 3 (when paper feed tray is installed)*
Tray 4 (when paper feed tray is installed)*
Bypass tray
Front cover
Output tray
(Centre tray)
Automatic document feeder
USB connector (A type)
Exit tray unit (right tray)*
[POWER] key (
)
IMAGE SEND mode indicators (
)
• LINE indicator
This lights up during transmission or
reception of a fax or Internet fax. This also
lights during transmission of an image in
scan mode.
• DATA indicator
This blinks when a received fax or Internet
fax cannot be printed because of a
problem such as out of paper.
This lights up when there is a transmission
job that has not been sent.
Operation panel
[JOB STATUS] key (
)
PRINT mode indicators (
)
• READY indicator
Print jobs can be received when this indicator is lit.
• DATA indicator
This blinks while print data is being received and lights steadily
while printing is taking place.
Touch panel
[HOME] key (
)
[SYSTEM SETTINGS] key (
)
Stylus pen
* Peripheral device.
For more information, see the
operation guide (PDF).
