MX-M1204 MX-M904/M1054/M1204 (MAIN UNIT) 2 – 9

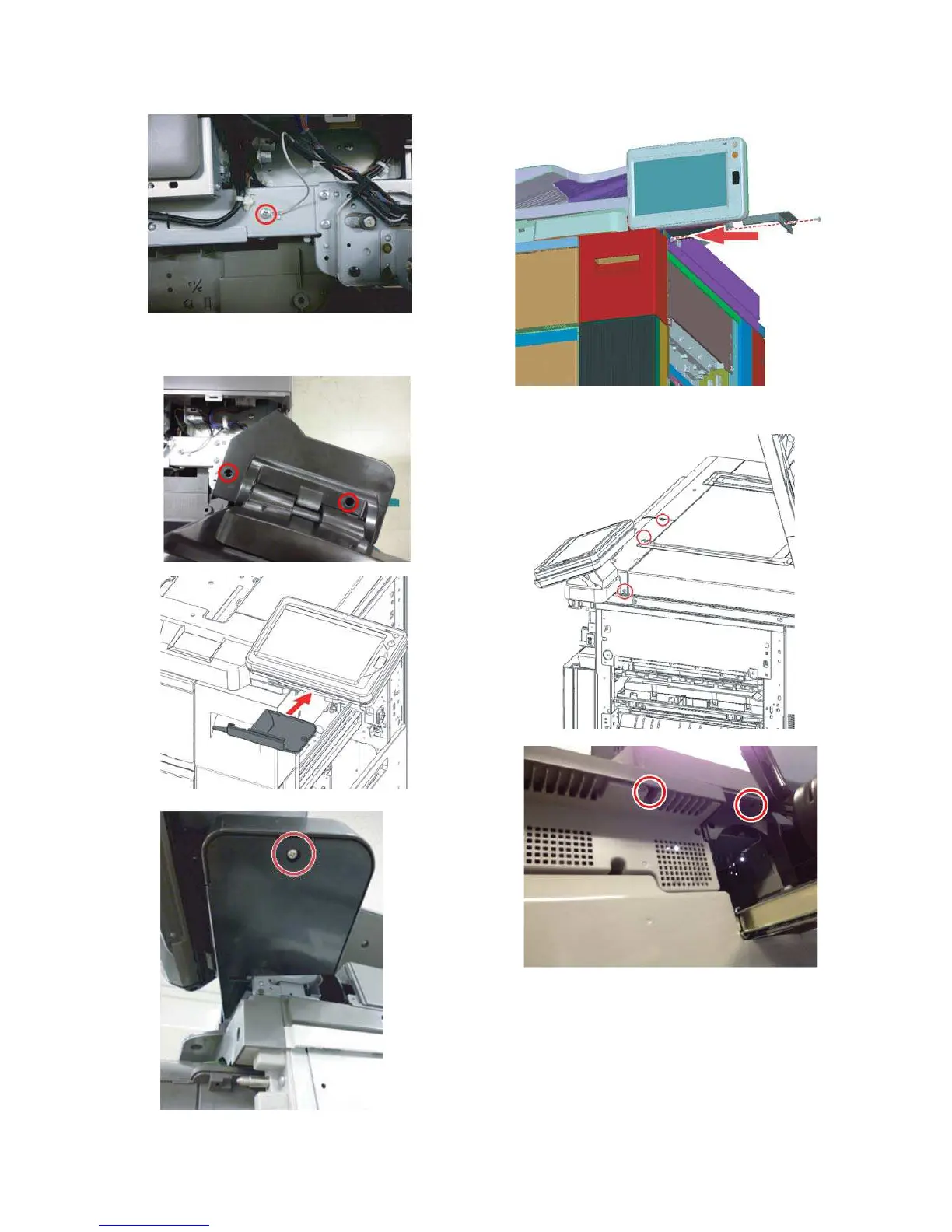

8) Fix the earth wire with screw.
9) Attach the operation Panel cover B (Packed items No.2) with
the screw. (Packed items No.4 x2). And, attach the lower cover
(Packed items No.10) with the screw. (Packed items No.4).
10) Attach the panel cover below (Packed items No.3) with the
screw (Packed items No.4).
11) Attach the operation panel upper cover with the screw.
To Next Page
