Sharp MZ-800 Service Manual

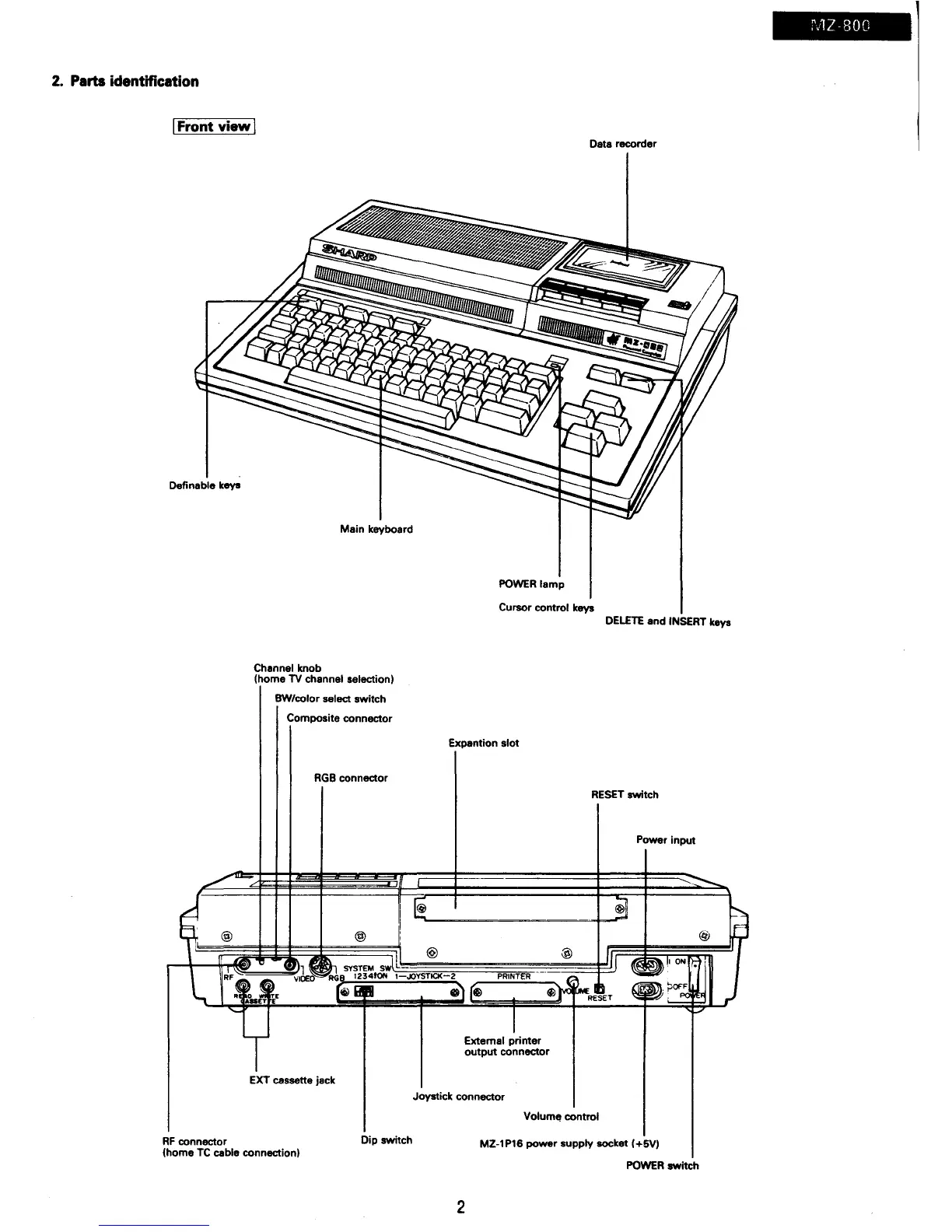

2. Parts identification
I Front view I
Definable keys
RF connector
Main keyboard
Channel knob
(home TV
channel selection)
BW/color select switch
Composite connector
RGB connector
EXT cassette jack
Dip switch
(home
TC cable connection)
Data recorder
POWER lamp
Cursor
control keys
Expantion
slot
External
printer
output connector
Joystick connector
DELETE and INSERT keys
RESET switch
Power input
Volum!! control
2
MZ-1P16 power supply socket (+SV)
POWER switch
~ilZ-800
