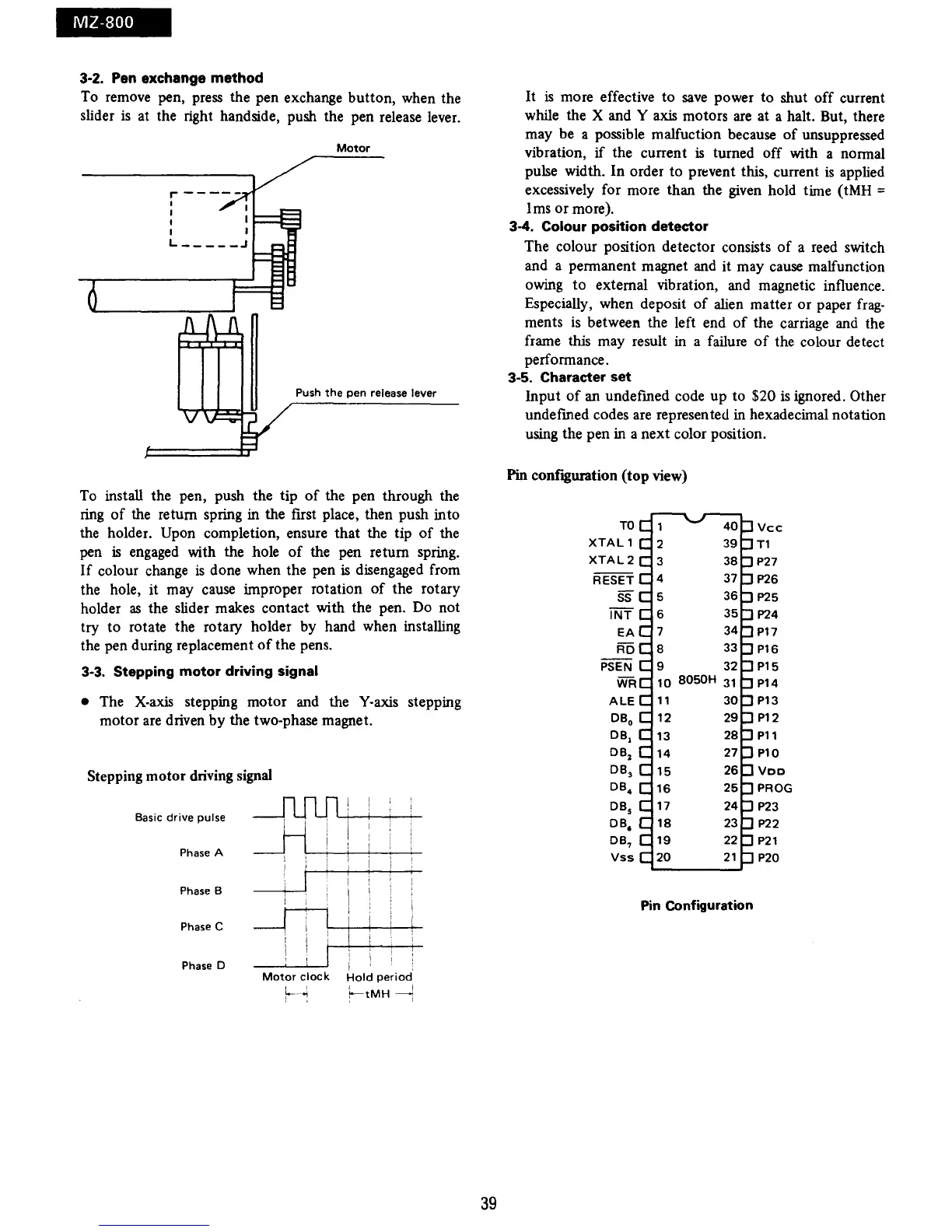

MZ-800
3-2.  Pen exchange
method
To  remove  pen,  press  the  pen exchange button, when the
slider
is
at  the  right  handside,  push  the  pen release  lever.
Motor
Push
the
pen
release lever
To
install  the  pen,  push  the  tip
of
the  pen  through the
ring
of
the  return spring in  the  fIrst  place,  then push into
the  holder.
Upon  completion,  ensure  that  the  tip
of
the
pen
is
engaged  with  the  hole
of
the  pen  return  spring.
If
colour  change
is
done  when the pen
is
disengaged  from
the  hole,  it  may  cause  improper  rotation
of
the  rotary
holder
as
the  slider  makes  contact  with  the  pen.  Do  not
try  to  rotate  the  rotary  holder  by  hand  when  installing
the pen during replacement
of
the pens.
3-3.  Stepping
motor
driving
Signal
•  The
X-axis
stepping  motor  and  the  Y-axis  stepping
motor are driven by the two-phase magnet.
Stepping motor driving signal
Basic drive pulse
Phase A
Phase B
Phase
C
Phase 0
n n n  I  I  "  :
~,
~WW~
~il";
I
'  I  '  ,
i  !  i  :
,  I  '
I
---[[Jr-!
-+--+--+-+-
I  ,
Motor
clock
Hold
period
f-----i
i--tMH
--1
39
It
is
more  effective  to
save
power  to  shut off current
while  the X and
Y axis  motors
are
at  a halt.  But,  there
may  be  a possible  malfuction because
of
unsuppressed
vibration,  if  the  current
is
turned  off  with  a  normal
pulse  width. In order to
prevent this,  current
is
applied
excessively  for  more  than  the
given
hold  time (tMH =
lms or more).
3-4.
Colour
position
detector
The  colour  pOsition  detector consists
of
a reed  switch
and  a  permanent magnet and  it may cause  malfunction
owing  to  external  vibration,  and  magnetic  influence.
Especially,  when  deposit
of
alien  matter or paper
frag-
ments
is
between  the  left  end
of
the  carriage  and  the
frame  this  may  result  in  a  failure
of
the  colour detect
performance.
3-5.  Character
set
Input
of
an undefmed code up to $20
is
ignored. Other
undefmed codes are  represented in hexadecimal notation
using the pen in a next color position.
Pin configuration (top view)
TO
Vcc
XTAL1
T1
XTAL2
P27
RESET
P26
SS
P25
INT
P24
EA
P17
RD
P16
PSEN
P15
WR
P14
ALE
P13
DBo
P12
DB,
P11
DB,
P10
DB3
Voo
DB.
PROG
DBs
P23
DB,
P22
DB,
P21
Vss
P20
Pin Configuration
