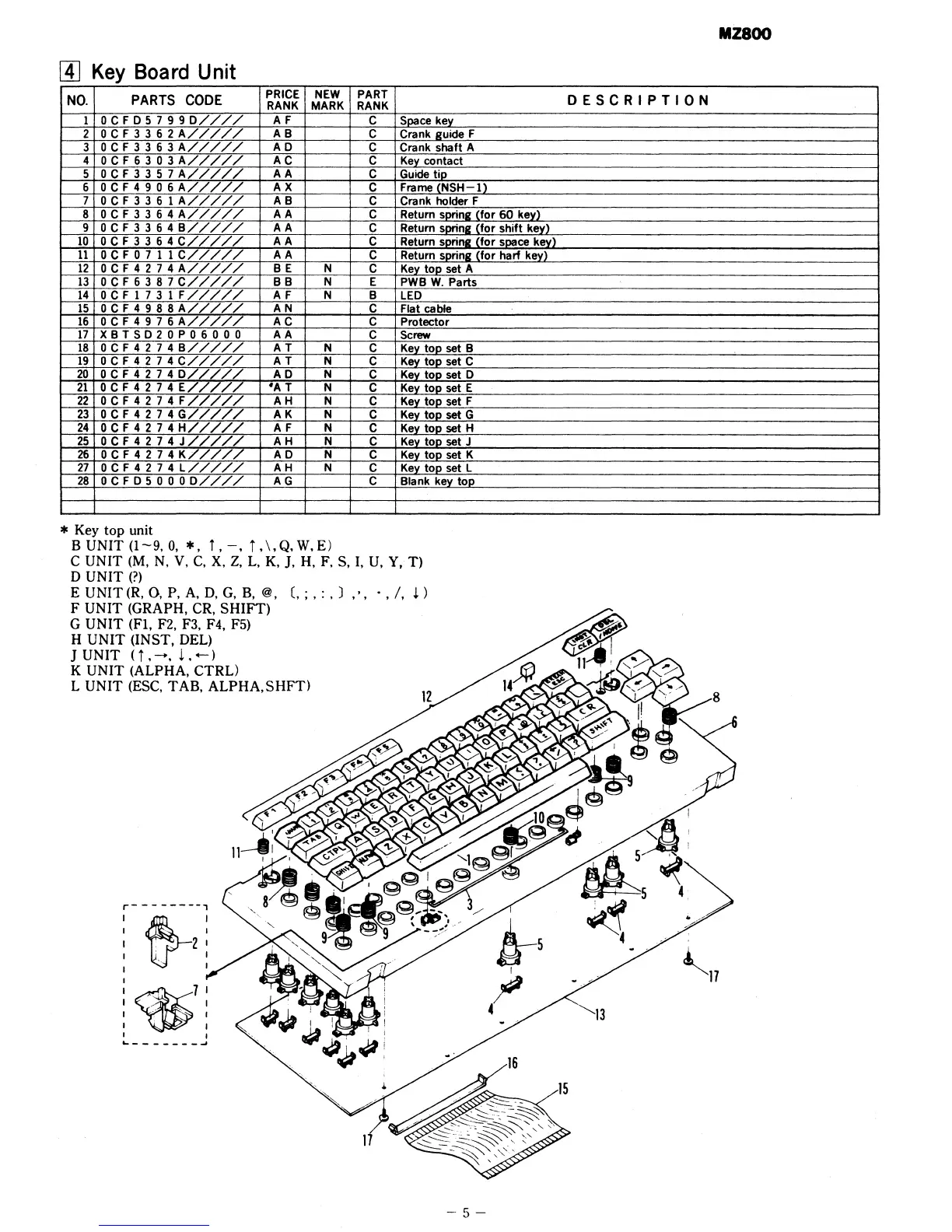

[!] Key Board Unit
NO.
PARTS CODE
PRICE
NEW
PART
RANK MARK
RANK
1
OCFD5799D//// AF
C
Space
key
2
OCF3362A/////
AB
C
Crank guide F
3
OCF3363A///// AD
C Crank shaft A
4
OCF6303A/////
AC C Key_ contact
5
OCF3357A///// AA
C
Guide tip
6
OCF4906A///// AX
C
Frame (NSH-1)
7 OCF3361A///// AB
C Crank holder F
8
OCF3364A///// AA
C
Return spring
9
OCF3364B///// AA
C
Return spring
10
OCF3364C///// AA
C
Return spring
11
OCF0711C///// AA
C
Return spring
12
OCF4274A/////
BE N
C
Key top set A
13 OCF6387C///// BB N
E
PWB W. Parts
14 OCF1731F///// AF N
B
LED
15
OCF4988A///// AN
C
Flat cable
16
OCF4976A/////
AC C Protector
17
XBTSD20P06000 AA
C
Screw
18
OCF4274B/////
AT N
C Key top set B
19 OCF4274C///// AT N
C Key_ tQP set C
20 OCF4274D///// AD N
C
Key top set D
21
OCF4274E/////
°A T
N
C
Key top set E
22 OCF4274F///// AH N
C Key top set F
23
OCF4274G///// AK N
C
Key top set G
24 OCF4274H///// AF N
C Key top set H
25 OCF4274J///// AH N
C
Kev top set J
26
OCF4274K///// AD N
C
Key top set K
27 OCF4274L///// AH N
C
Key top set L
28 OCFD5000D//// AG
C
Blank key top
* Key top unit
B UNIT (1-9, 0, *, i, -, 1. \,Q, W, E)
C UNIT (M, N, V, C, X, Z, L, K, ], H, F, S, I, U, Y, T)
D UNIT (?)
E UNIT (R, 0, P, A, D, G, B, @, c.;,:,)", ., /, l)
F UNIT (GRAPH, CR, SHIFT)
G UNIT (Fl, F2, F3, F4, F5)
H UNIT (INST, DEL)
]
UNIT (i, -+, ~,+-)
K UNIT (ALPHA, CTRL)
L UNIT (ESC, TAB, ALPHA,SHFT)
