- 8 -

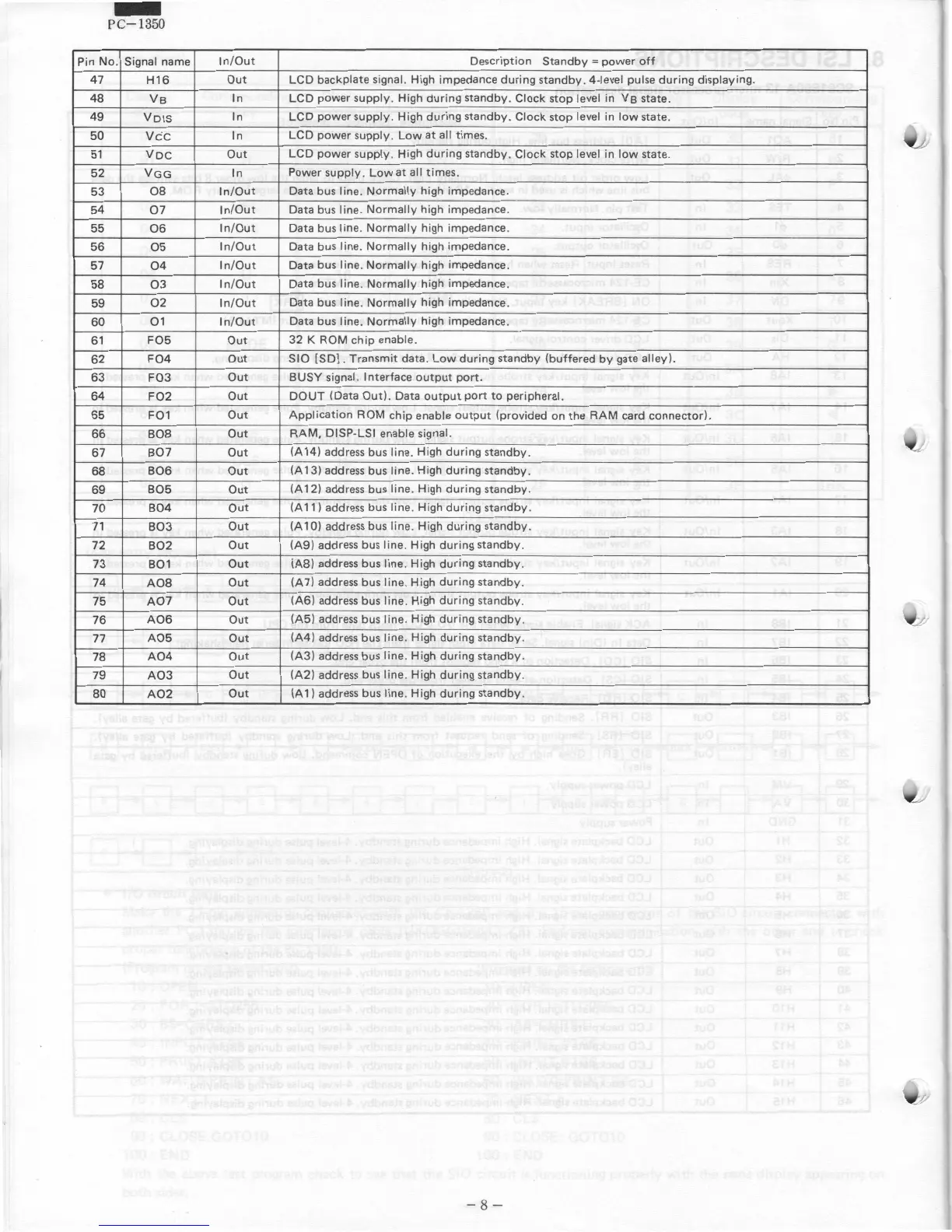

P in N o . S ignal name
In / Out
D es cription Standby ; power off
47
H16 Out
LCD backplat e s i gnal. H i gh i mpedance during s tandby . 4 - level pulse during di s playing .
48
V s
In LCD power supply. High during standby . Clock stop l eve l in Vs state.
4 9
V o rs
In
LCD power supply. High during standby. Clock stop l evel in lo w state.
50
V ee
In
L C D power s upply . Low at all times .
5 1
Vo e
Out LCD power s upply . High dur i ng standby. Clock stop le v el in low state .
52
V GG
In
Power supply . Low at all times .
5 3
08
I n / O ut
Data bus line . Normally hig h imp e dance.
54 07
In / Out
Data bus lin e . No r mal l y h i gh imp e dan c e.
55 06
In / Out
D a ta bus li ne . Norma ll y h i gh imp e dance .
56 05
In / Out
Data bu s li n e . Normally h i gh imp e dance.
57 0 4 In / Out
Data bus line . Normally high impe d ance.
5 8
0 3
In / Out
Data bus l i ne . Normally high impedance.
59 02
In / Out
Data bus line . No r mally high impedance.
60
01 In / Out
Data bus line. Normally high imp e da n ce .
6 1 F05
Out
32 K ROM c hi p enab le .
-
62
F 0 4
Out
SIO [ SD ] . Transm i t data. Low during standby (buffered by gate al l ey).
63 F 0 3
Out
BUSY signal. Interface output port.
64 F02
Out
DOUT (Data Out ) . Data output por t to peripheral .
65
F 0 1 Out Applica t ion ROM c hip enable outpu t (provided on the RAM card connector).
66 808
O u t
RAM, DISP - LSI enabl e signa l.
67 80 7
Out
(A14) addr e ss bus lin e. High during s tandby .
68
80 6
Out
(A13) address bus line . High during standby .
69 805
Out
( A 12) add res s bus I i n e . H i gh du ri ng standby.
7 0 804 Out
(A 11) address bus li ne . H i gh during s tandby .
71 80 3
Out
(A10) addr e ss bus l i ne . High du r ing standby.
72 80 2
Out
(A9) addr e ss bus l ine. High during standby .
7 3
8 0 1 Out
(AS) address b u s line . H i gh during s tandby .
74
A08
Out
(A7) address bus l i ne . High dur i n g st andby .
75 A07
Out
(A6) addr ess bus line . High duri ng s tan dby .
7 6 A 06
Out
(AS) add r ess bus line. H i gh du r ing st andby .
77 A 05
Out
(A4) address bus line . H i gh dur i ng s tandby .
78
A 0 4
Out
(A3) address bus line . H i gh during s tandby .
7 9 A 0 3
Out
(A2) addre ss bus l ine . High dur i ng s tandby .
80 A 0 2
O u t
(A 1) address bus li ne. High during standb y.
-
P C- 1350
