3-5. Specification
78

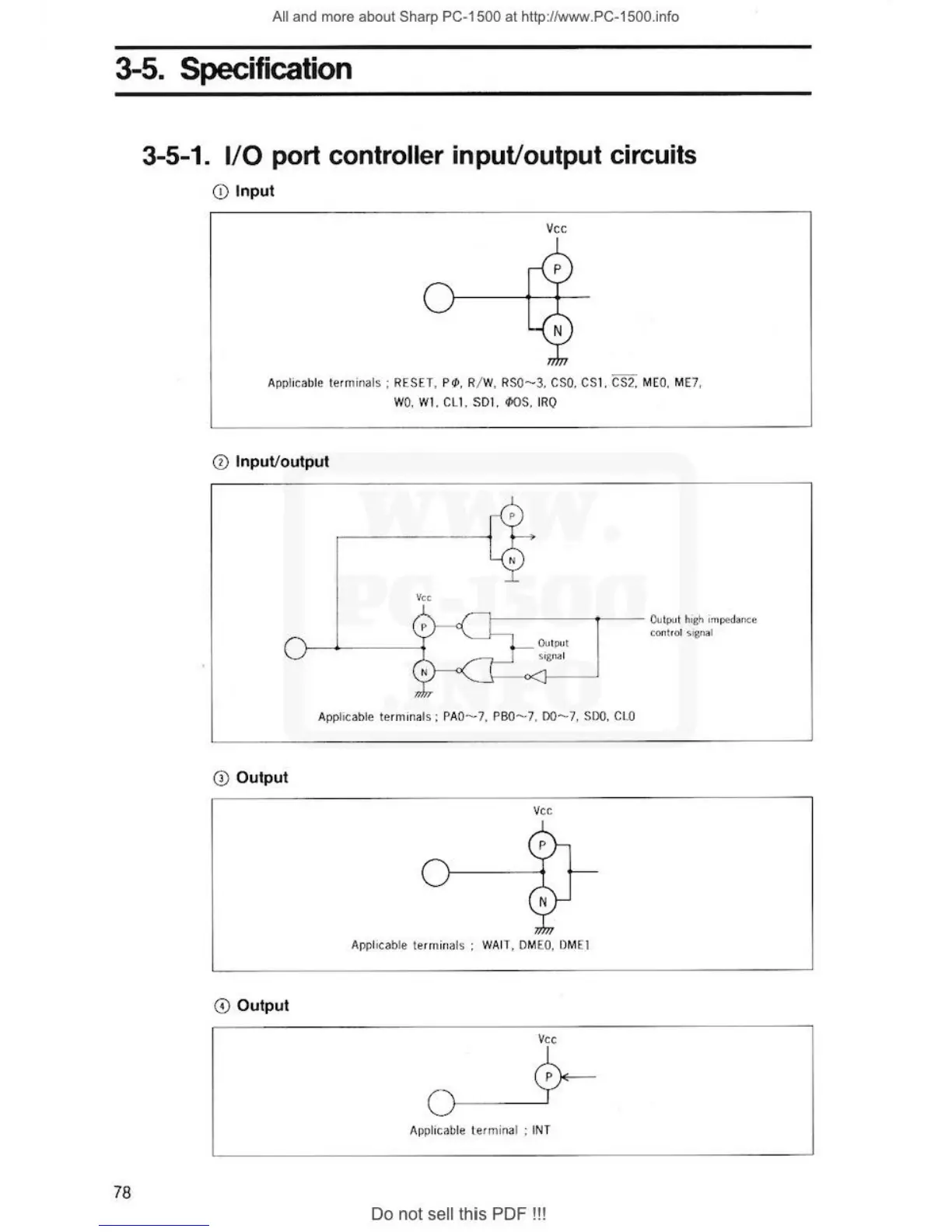

3-5-1. 1/0 port controller input/output circuits
0 Inpu t
Vee
A pp li ca ble terminals ; RESET, Pl/J . R/ W, RS0 - · 3. CSO. CS l. CS2. MEO. M E7 ,
W O. Wl , Cll. S Dl . </JOS . I RQ
® Inpu t/output
Vee
,- - 1------- -+-- - Ou tpul high if n ~an e c
Ou tput
sian .a l
co n tro l srgnal
App li cable termi na ls ; PA 0~7. PB0- ·7, D0-·7, SDO, CLO
CD Output
V ee
Applic ab le terminals : WA IT. DM EO . (JM El
© Output
Vee
Applicable termi na l : INT
