® U se r RAM
It is the user RA M fo r which 8-bit X 2K B H M6 1 I 6 is used. Address selected by SO is
wi thin 4000H to 47FFH .
® 40-pin connector
It is the connect or used for the connec ti on of one of op ti onal memory modules and
progr am modu le, on which provid ed signal terminals for address bu s. data bu~. and
chip select.
@ 60-pin connector
It is the connector used for the connec ti on of op tional pr inter and interface. on which
provided signal
ter rn in ab of add ress bus and data bus for the co ntrol of peripheral s.
@ LCD
The 7 X 156 d ot LF8082G E rnul ti-<l is play is used.

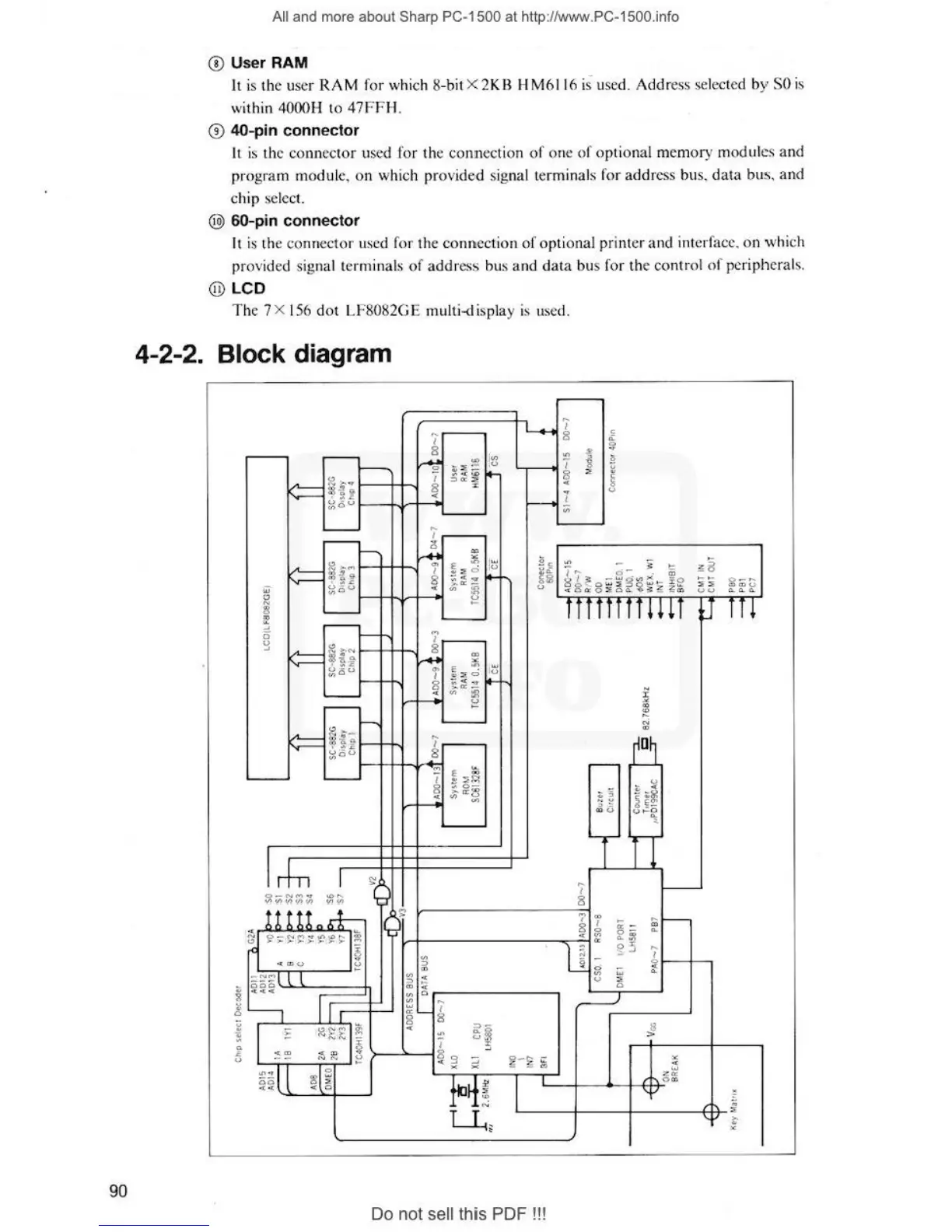

4-2- 2. Block diagram
~
