Connections
Caution
• Be sure to turn off the power and disconnect the plug from the power outlet before connecting/disconnecting cables. Also,
read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
TIPS
• To use the touch panel, the monitor must be connected to a computer using a USB cable.
• The touch panel operates with the standard Window driver.
• The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing LLC in the United States and other countries.

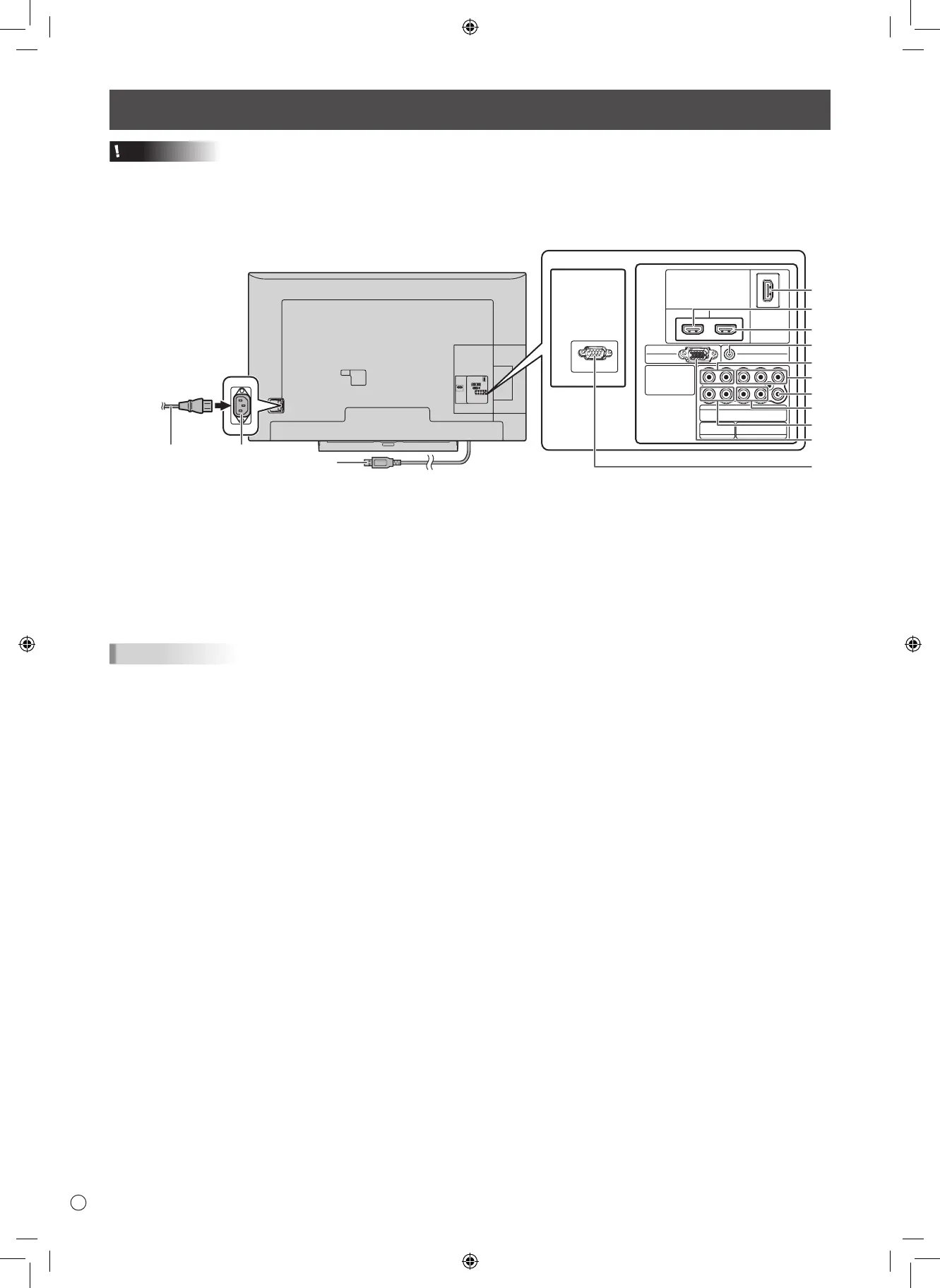

1. AC input terminal
2. Power cord (Supplied)
3. HDMI 3 input terminal (INPUT3)
4. HDMI 2 input terminal (INPUT2)
5. HDMI 1 input terminal (INPUT1)
6. Audio input terminal (for INPUT2/INPUT6)
7. Audio input terminal (for INPUT4)
8. AV component input terminals (INPUT4)
9. AV video input terminal (INPUT5)
10. Audio input terminal (for INPUT5)
11. Audio output terminal
12. D-sub input terminal (INPUT6)
13. RS-232C input terminal
