Sharp PN-CD701 Setup Manual

6
E

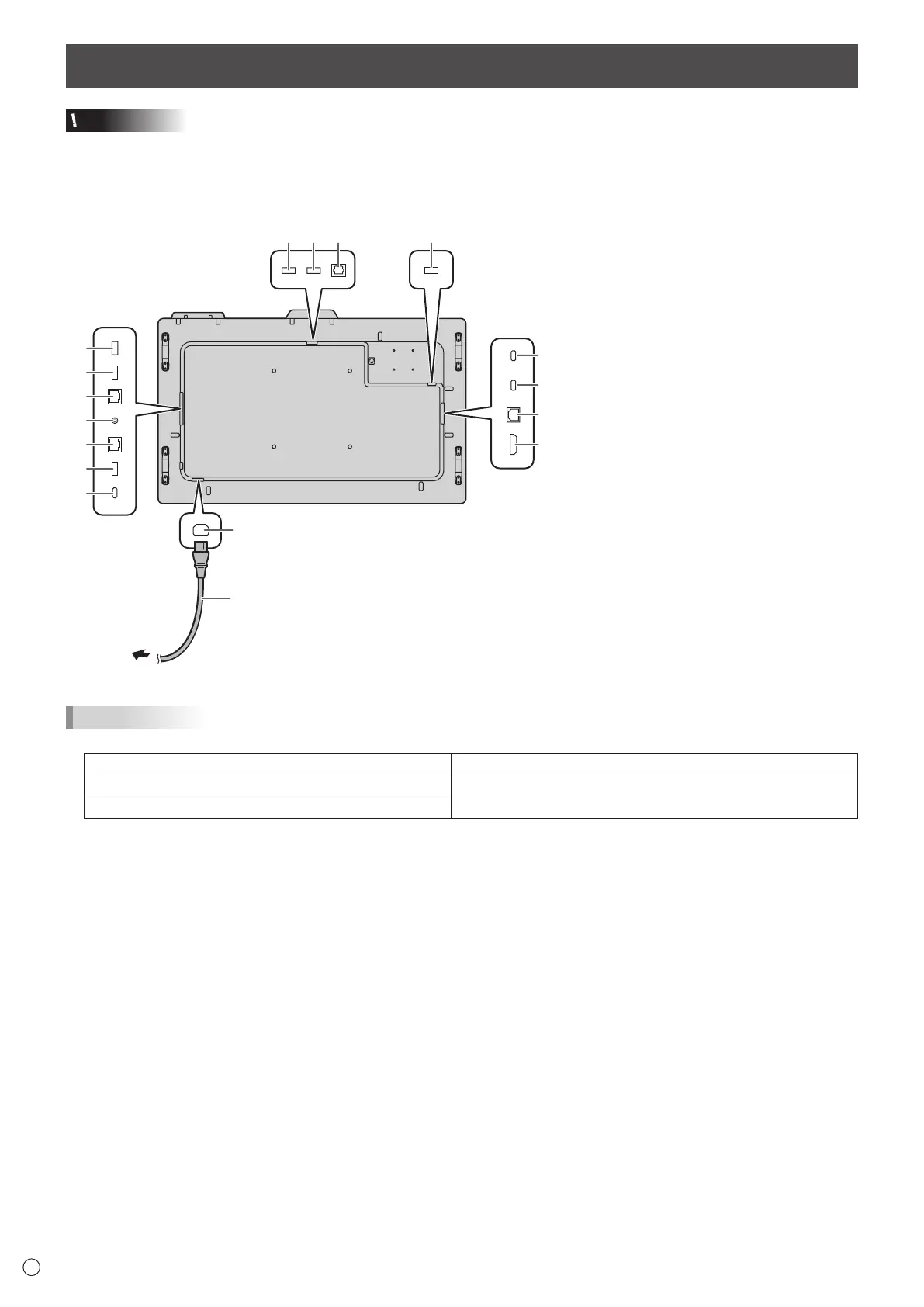

Connections
Caution
• Besuretoturnoffthemainpowerswitchanddisconnecttheplugfromthepoweroutletbeforeconnecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Becarefulnottoconfusetheinputterminalwiththeoutputterminalwhenconnectingcables.Accidentallyreversingcables
connected to the input and output terminals may cause malfunctions and the other problems.
TIPS
• The USB port varies depending on the terminal connected to the computer.
USB Type C 1 input terminal USB Type C 1 input terminal
USB Type C 2 input terminal USB Type C 2 input terminal
HDMI input terminal USB Type B input terminal for touch back
• ThetermsHDMI,HDMIHigh-DefinitionMultimediaInterface,andtheHDMILogoaretrademarksorregisteredtrademarksof
HDMI Licensing Administrator, Inc.
• DisplayPortisaregisteredtrademarkofVideoElectronicsStandardsAssociation.
• Adobe,Acrobat,andAcrobatReaderareeitherregisteredtrademarksortrademarksofAdobeSystemsIncorporatedinthe
United States and/or other countries.
• VESAiseitherregisteredtrademarkortrademarkofVideoElectronicsStandardsAssociationintheUnitedStatesand/or
other countries.
• Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveholders.
1. USB port for external source
(USB 3.0 compliant)
2. USB port for camera 1
3. Optical audio input terminal (S/PDIF)
4. USB port for camera 2
5. USB Type C 1 input terminal
6. USB Type C 2 input terminal
7. USB Type B input terminal for touch
back (pair with HDMI input terminal)
8. HDMI input terminal
9. AC input terminal
10. USB Type C output terminal
11. USB port for storage expansion
(USB 3.0 compliant)
12. LAN 2 terminal
13. Line out Audio output terminal
14. LAN 1 terminal
15. USB port for IoT sensor hub/USB
devices
16. USB port for IoT sensor hub/USB
devices
16
15
14
13
12
11
10
1 32
5
6
7
8
9
4
For power outlet
Power cord (Supplied)

Sharp PN-CD701 Specifications

General

Response time	6 ms
Display diagonal	70 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	176.6 cm
Viewing angle, horizontal	176 °
Number of simultaneous touchpoints	10
RMS rated power	24 W
Number of built-in speakers	2
Wi-Fi	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Windows operating systems supported	Windows 10
AC input voltage	100-240 V
Heat dissipation	801 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	370 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE, CB
Sustainability certificates	RoHS
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	41 mm
Placement supported	Indoor
Bezel width (bottom)	53 mm
Panel mounting interface	400 x 400 mm
Purpose	Corporate
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	90 mm
Width	1623 mm
Height	976.4 mm
Weight	65000 g
