Sharp PN-CD701 Setup Manual

ENGLISH
5
E
Supplied Components
If any components are missing, please contact your dealer.
* The remote control unit is supplied with the PN-ZR02 (optional).
(Remote control sensor box is not used.)
* For environmental protection!
Do not dispose of batteries in household waste. Follow the disposal instructions for your area.
About USB Type C extend cable
• ConnecttheUSBTypeCextendcable(supplied)betweentheUSBTypeCcable(supplied)andtheexternaldevice.
When connecting/disconnecting to the external device, plug/unplug the USB Type C extend cable to prevent damage to the
USB Type C cable.
Specifications
Model PN-CD701
Power requirement AC 100 V - 240 V, 4.2 A, 50/60 Hz
Operating temperature
*
41°F to 95°F (5°C to 35°C)
Operating humidity 20% to 80% (no condensation)
Power consumption 370 W
Dimensions (excluding protrusions) inch (mm)
Approx. 63-15/16 (W) x 3-9/16 (D) x 38-7/16 (H) (1623.5 x 90.0 x 976.5)
Weight lbs. (kg)
Approx. 143.3 (65)
* Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP.
In such cases, please check the temperature condition specified by the optional equipments.
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement
without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from
these values in individual units.

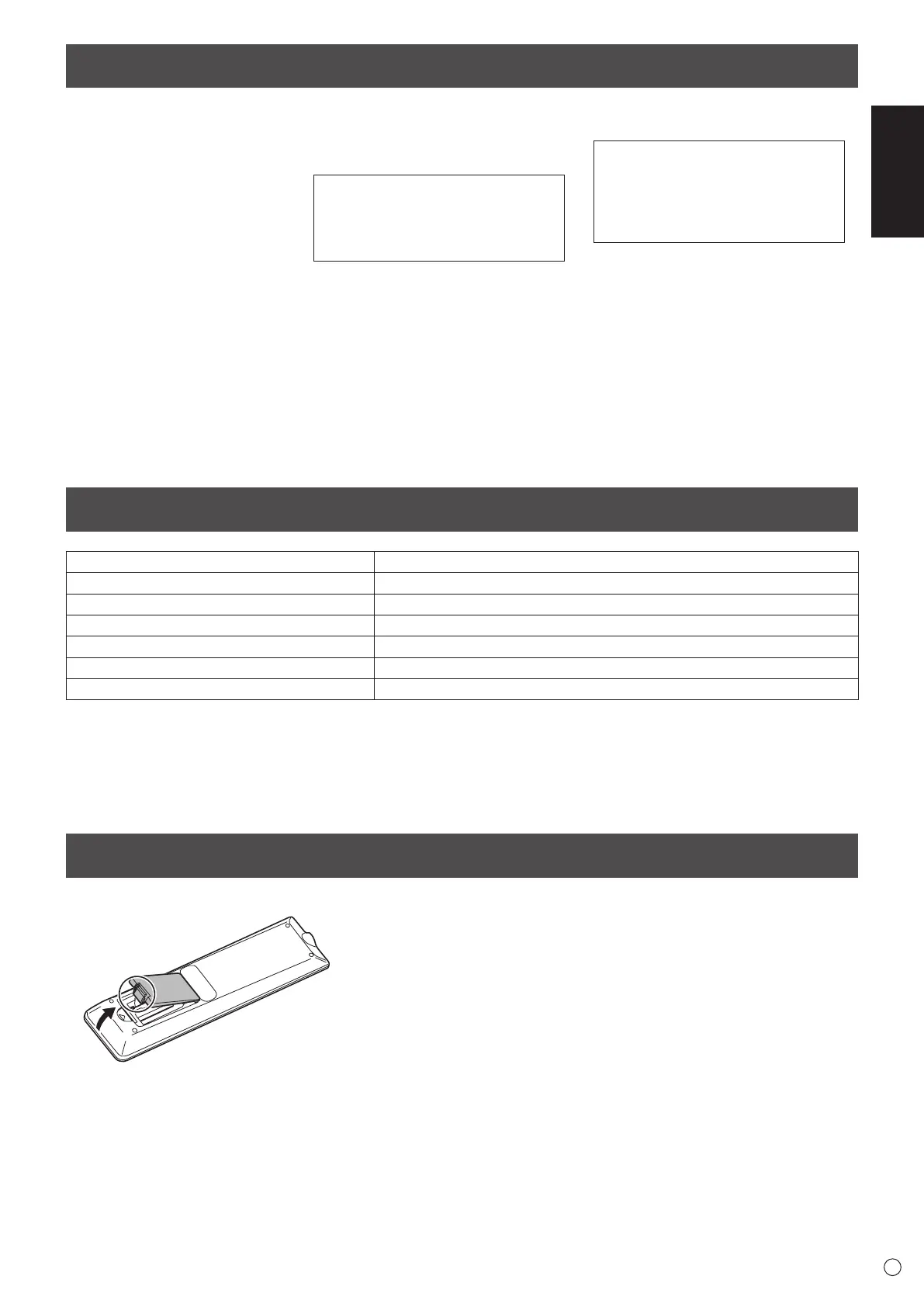

Preparing the Remote Control Unit
1. Placeyourfingeronthepartmarkedwiththe▲,andthenpullthecoveroff.
2. See the instructions in the compartment and put in the batteries (supplied with the PN-ZR02 (optional)) with their
plus (+) and minus (-) sides oriented correctly.
3. Close the cover.

Liquid Crystal Display Monitor: 1

Power cord: 1

HDMI cable: 1

USB Type C cable (26.2 feet [8 m]): 1

USB Type C extend cable: 1

CD-ROM: 1

Setup Manual (this manual): 1

Touch pen: 1

USB A to B cable (for touch back): 1

Cable clamp: 1

Camera: 1

Knurled screw (M3): 2

USB A to B cable (for camera): 1

S/PDIF cable: 1

3.5 mm mini jack to USB A cable: 1

IoT sensor hub: 1

Micro USB cable (for IoT sensor hub): 1

Knurled screw (M3): 2

IoT sensor hub screw (M3): 2

IoT sensor hub mounting brackets (L/R):
x1 each

Sharp PN-CD701 Specifications

General

Response time	6 ms
Display diagonal	70 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	176.6 cm
Viewing angle, horizontal	176 °
Number of simultaneous touchpoints	10
RMS rated power	24 W
Number of built-in speakers	2
Wi-Fi	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Windows operating systems supported	Windows 10
AC input voltage	100-240 V
Heat dissipation	801 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	370 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE, CB
Sustainability certificates	RoHS
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	41 mm
Placement supported	Indoor
Bezel width (bottom)	53 mm
Panel mounting interface	400 x 400 mm
Purpose	Corporate
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	90 mm
Width	1623 mm
Height	976.4 mm
Weight	65000 g
