It is possible to mount an IoT sensor hub in the following position.
IoT sensor hub
mounting bracket
1
*
2
Micro USB cable

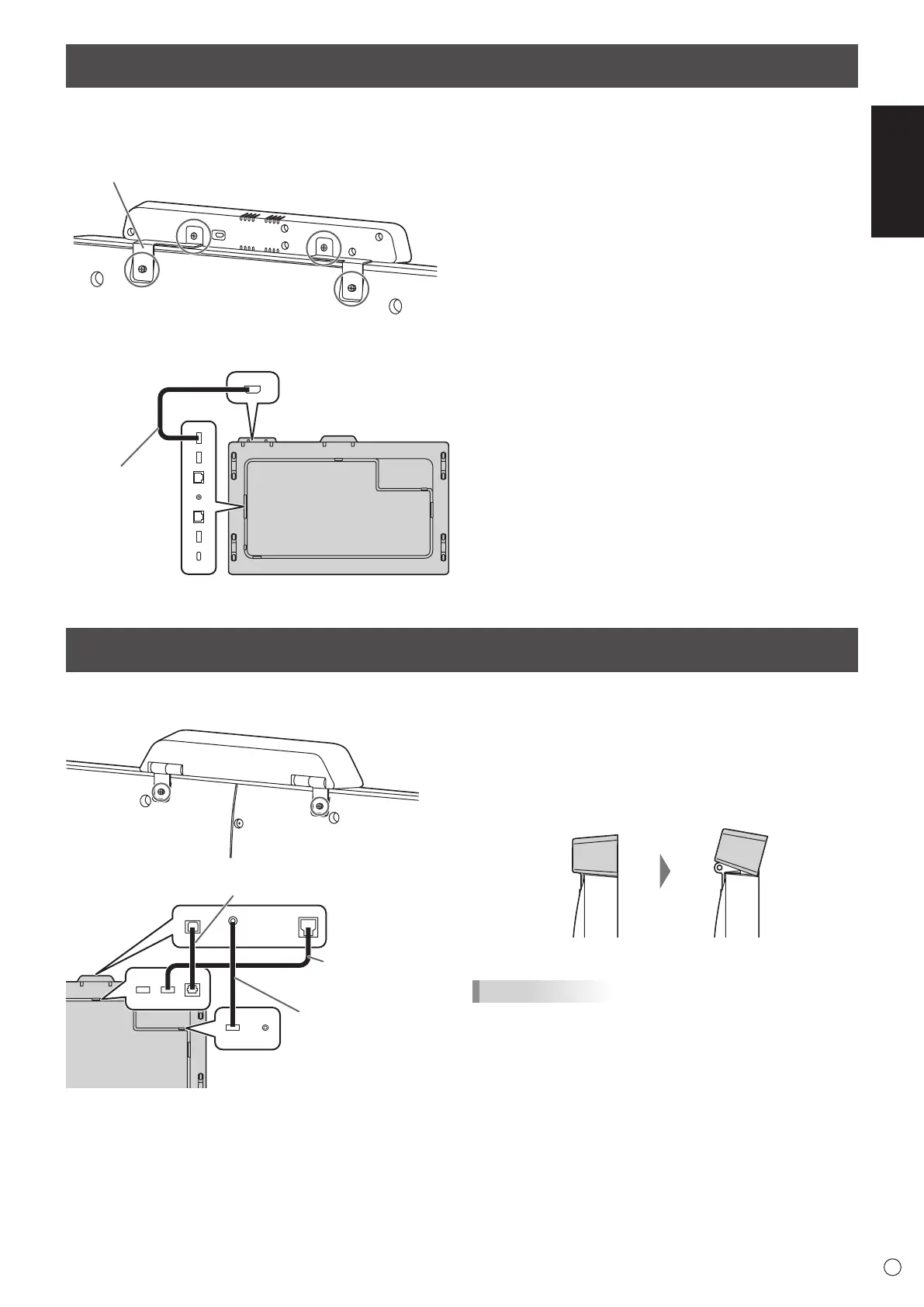

1. Attach the supplied IoT sensor hub mounting brackets
(L/R) to the IoT sensor hub with the supplied IoT
sensor hub screws (M3) (x2).
2. Fix the IoT sensor hub mounting brackets (L/R) to this
monitor with supplied knurled screws (M3) (x2).
* The IoT sensor hub mounting brackets fit into the recess
of this monitor.
It is possible to mount a camera in the following position.
3.5 mm mini jack to
USB A cable (supplied)
USB A to B cable
(supplied)
S/PDIF cable (supplied)
1. Attach the supplied camera with the supplied knurled
screws (M3) (x2).
The camera can be tilted downward.
TIPS
• Thecableclamp(supplied)canbeusedtoclampthe3.5
mm mini jack to USB A cable (supplied).
• Attachthesuppliedcableclamptoaflatsurface.Donot
attach over a vent.
• Removeanydustordirtbeforeattaching.
Mounting an IoT sensor hub
Mounting a camera

Sharp PN-CD701 Specifications

General

Response time	6 ms
Display diagonal	70 \
Display brightness	350 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	176.6 cm
Viewing angle, horizontal	176 °
Number of simultaneous touchpoints	10
RMS rated power	24 W
Number of built-in speakers	2
Wi-Fi	-
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Windows operating systems supported	Windows 10
AC input voltage	100-240 V
Heat dissipation	801 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	370 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	CE, CB
Sustainability certificates	RoHS
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	41 mm
Placement supported	Indoor
Bezel width (bottom)	53 mm
Panel mounting interface	400 x 400 mm
Purpose	Corporate
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	90 mm
Width	1623 mm
Height	976.4 mm
Weight	65000 g
