Sharp PN-E421 User Manual

3
E
n

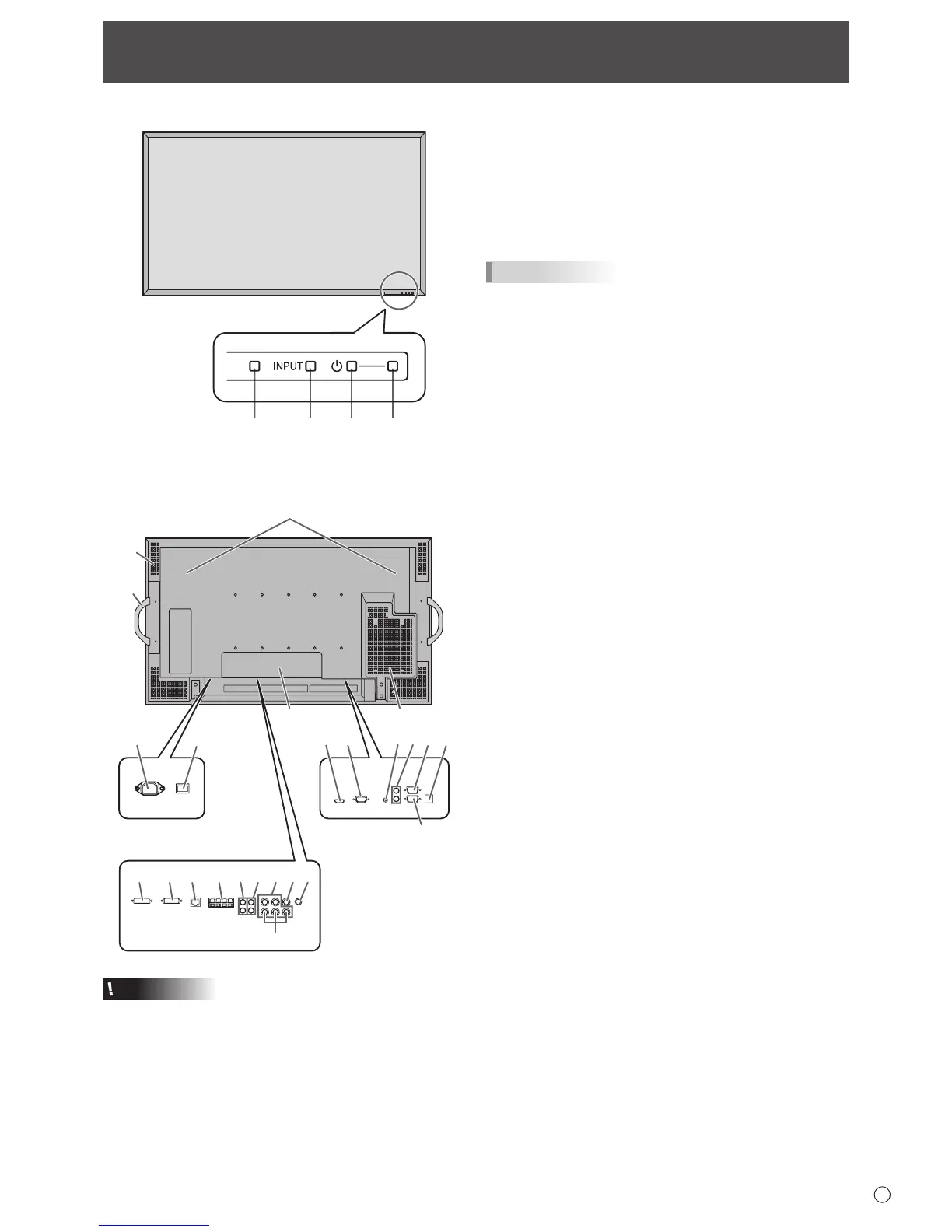

Front view
2 345
1
1. LCD panel
2. Remote control sensor
3. Input switch (See page 5.)
4. Power switch
5. Power LED
TIPS
• Use a pointed object such as a pen tip to press the
switches at the front of the monitor.
Part Names
n
Rear view
When the PN-ZB01 (optional)
is attached
1
18171615 19
79
2
5
64
10 11
22
2120 2423
12
13
14
3
8
1. AC input terminal
2. Main power switch
3. PC/AV HDMI input terminal
4. PC D-sub input terminal
5. Audio input terminal
6. Audio output terminals
7. RS-232C output terminal
8. RS-232C input terminal
9. Optional terminal
This terminal is provided for possible future (optional)
function expansion. Offering of this terminal is not a
guarantee that future expanded functionality will be
provided.
10. Expansion terminal cover
Additional input/output terminals are available by attaching
the PN-ZB01 interface expansion board (optional).
11. Optional attachment section
This section is used to connect optional hardware for
function expansion. Offering this attachment location
is not a guarantee that future compatible hardware
attachments will be released.
12. Speakers
13. Handles
14. Vents
When the PN-ZB01 (optional) is attached
15. PC/AV DVI-D input terminal
16. PC/AV DVI-D output terminal
17. LAN terminal
18. External speaker terminals
19. Audio 1 input terminals
20. Audio 2 input terminals
21. PC RGB input terminals
22. AV component input terminals
23. AV video input terminal
24. AV S-video input terminal
Caution
• Consult your SHARP dealer for attachment/detachment of
optional parts.
• Do not open the expansion terminal cover by yourself.
There are high voltage parts inside the cover which may
cause an electric shock.
