6

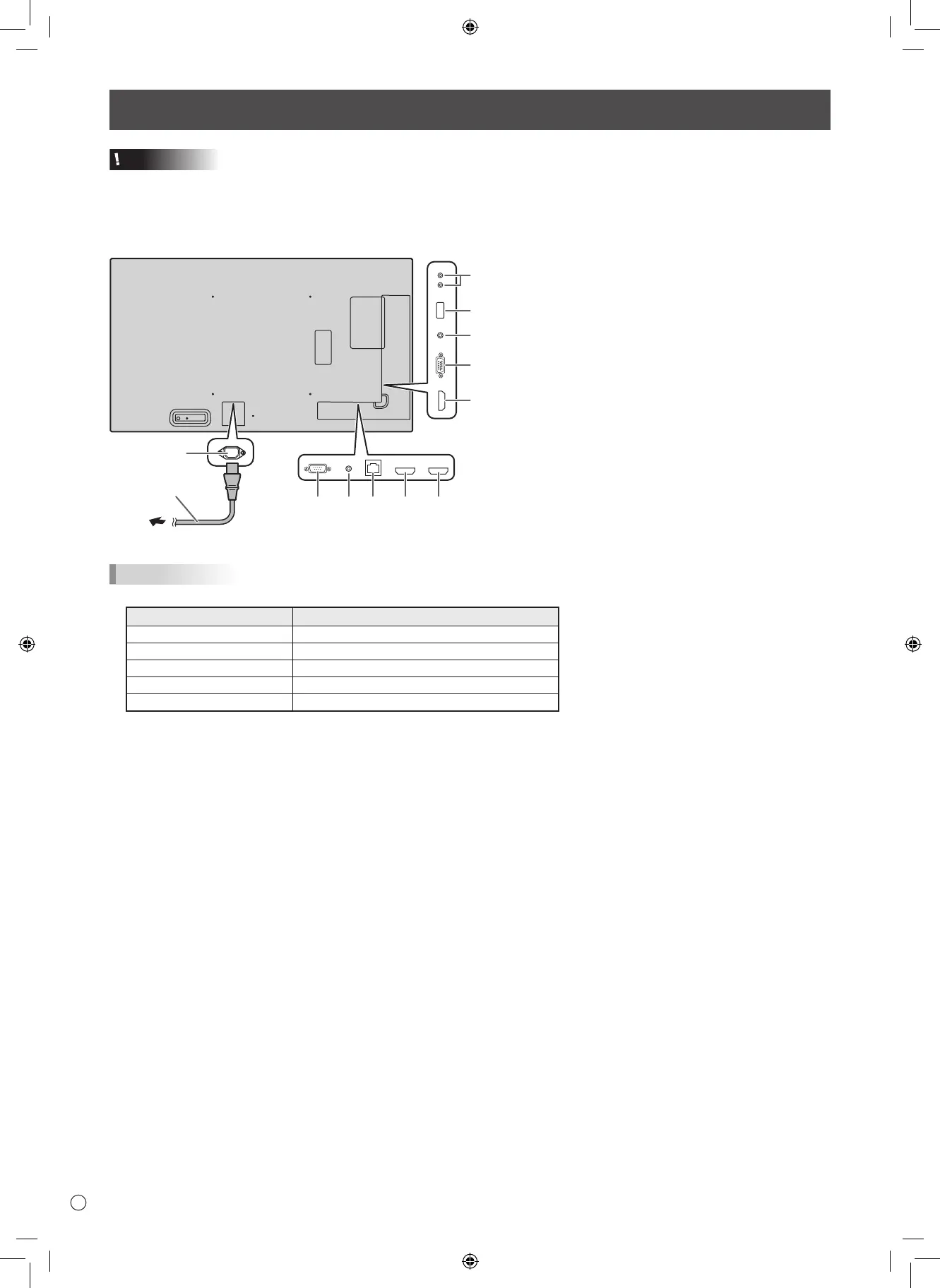

Connections
Caution
• Be sure to turn o the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
Power cord
(Supplied)
9
8
7
23456
1
TIPS
• The audio input terminals used in each input mode are as follows.
Input mode Audio input terminal
HDMI1 HDMI1 input terminal
HDMI2 HDMI2 input terminal
HDMI3 HDMI3 input terminal
D-SUB Audio input terminal
USB USB port
• The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc.
• Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe in the United States and/or
other countries.
• VESA is either registered trademark or trademark of Video Electronics Standards Association in the United States and/or
other countries.
• All other brand and product names are trademarks or registered trademarks of their respective holders.
1. AC input terminal
2. RS-232C input terminal
3. IR output terminal
4. LAN terminal
5. HDMI3 input terminal
6. HDMI2 input terminal
7. Audio output terminals
8. USB port
9. Audio input terminal
10. D-sub input terminal
11. HDMI1 input terminal
To Next Page
