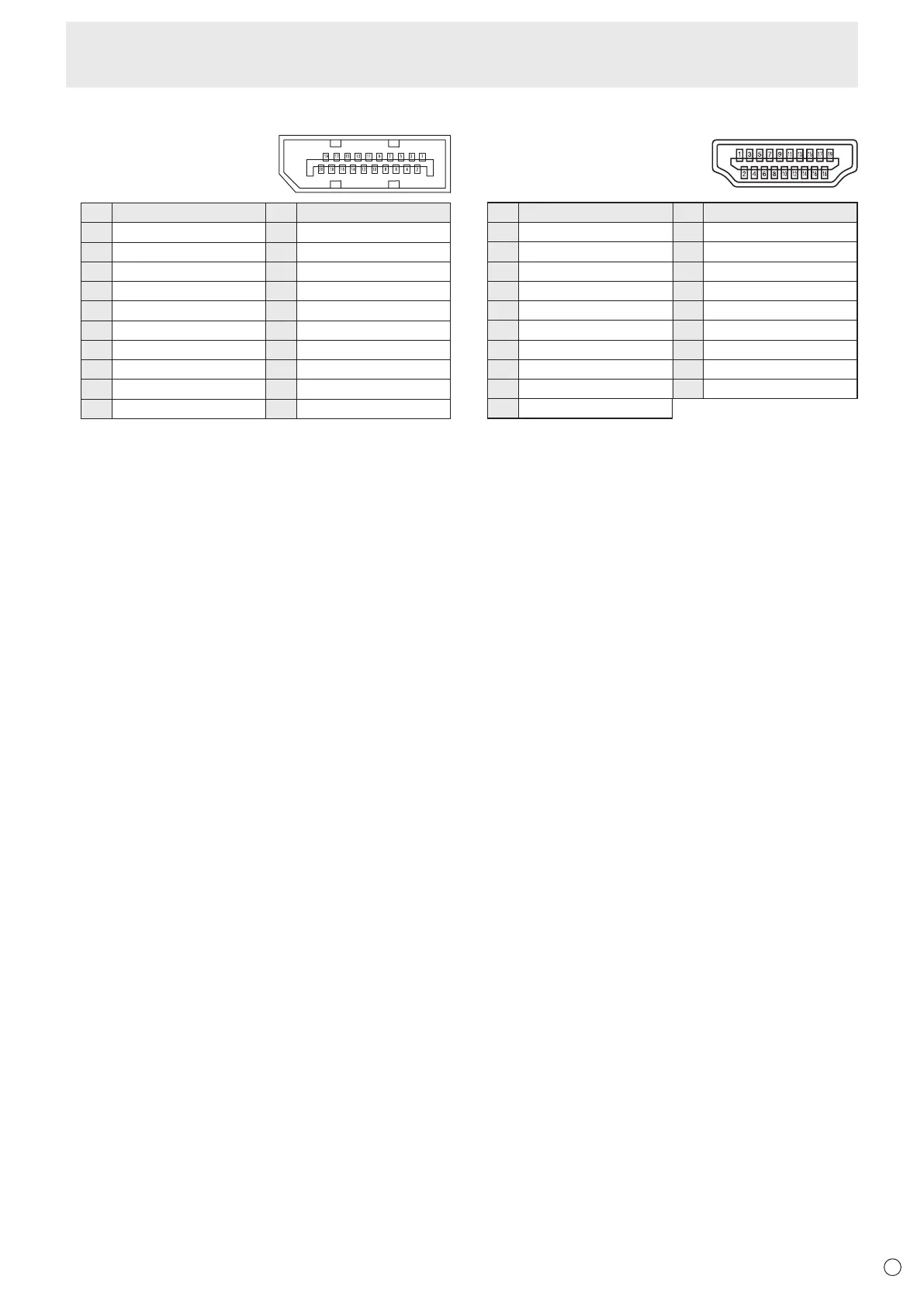

DisplayPort input terminal pins
(DisplayPort 20 pin)
No. Function No. Function
1 MainLane 3- 11 Gnd
2 Gnd 12 MainLane 0+
3 MainLane 3+ 13 Gnd
4 MainLane 2- 14 Gnd
5 Gnd 15 Aux+
6 MainLane 2+ 16 Gnd
7 MainLane 1- 17 Aux-
8 Gnd 18 Hot-plug detection
9 MainLane 1+ 19 Gnd
10 MainLane 0- 20 3.3V
n
PC/AV HDMI input terminal pins
(HDMI
TM
Connector)
No. Function No. Function
1 TMDS data 2+ 11 TMDS clock shield
2 TMDS data 2 shield 12 TMDS clock-
3 TMDS data 2- 13 CEC
4 TMDS data 1+ 14 N.C.
5 TMDS data 1 shield 15 SCL
6 TMDS data 1- 16 SDA
7 TMDS data 0+ 17 DDC/CEC GND
8 TMDS data 0 shield 18 +5V
9 TMDS data 0- 19 Hot-plug detection
10 TMDS clock+
