Connections
Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
• Do not use any cable that has a damaged or deformed terminal. Using such a cable may cause malfunctions.
• Images may not be displayed properly depending on the computer (video cards), cables, or peripheral devices to be
connected.
TIPS
• Set the audio input terminal to be used in AUDIO SELECT on the SETUP menu. The factory settings are shown below.
Input mode Audio input terminal (Factory setting)
DisplayPort DisplayPort input terminal

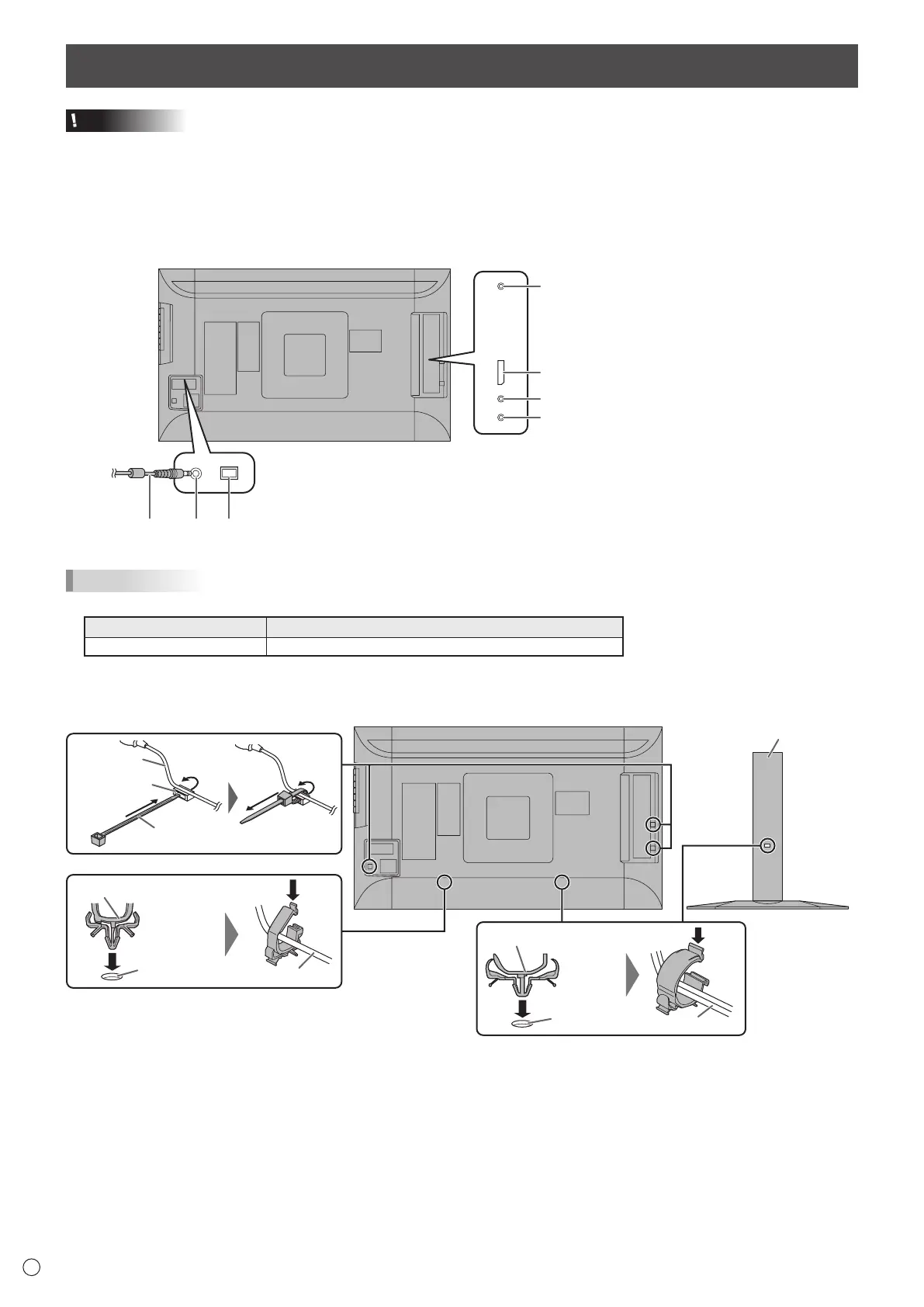

• The cables connected to the terminals on the rear of the monitor can be fastened with the cable clamp.
Attach the cable clamps to the attachment parts on the back of the monitor and the stand, and bind the cables.
Stand
Cable
Cable
Cable clamp (small)
Cable
Cable clamp
Cable clamp (large)
Cable clamp
attachment
Cable clamp
attachment
Cable clamp
attachment
• DisplayPort is a registered trademark of Video Electronics Standards Association.
1. Main power switch
2. AC input terminal
3. Power cord (Supplied)
4. RS-232C input terminal
5. DisplayPort input terminal
6. Audio input terminal
7. Headphone terminal
To Next Page
