Connections
Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
TIPS
• To use the touch panel, connect the USB cable (supplied) to your computer.
• Pen Software can be installed from the supplied CD-ROM.
• When the Information Display Downloader is installed, you can check and download the most recent versions of the software
programs.
• To install and use the software, see the manual for each.
• Download the setup program for the SHARP Display Connect and Touch Viewer with the Information Display Downloader.
• The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing, LLC in the United States and other countries.
• DisplayPort is a registered trademark of Video Electronics Standards Association.
• Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the
United States and/or other countries.

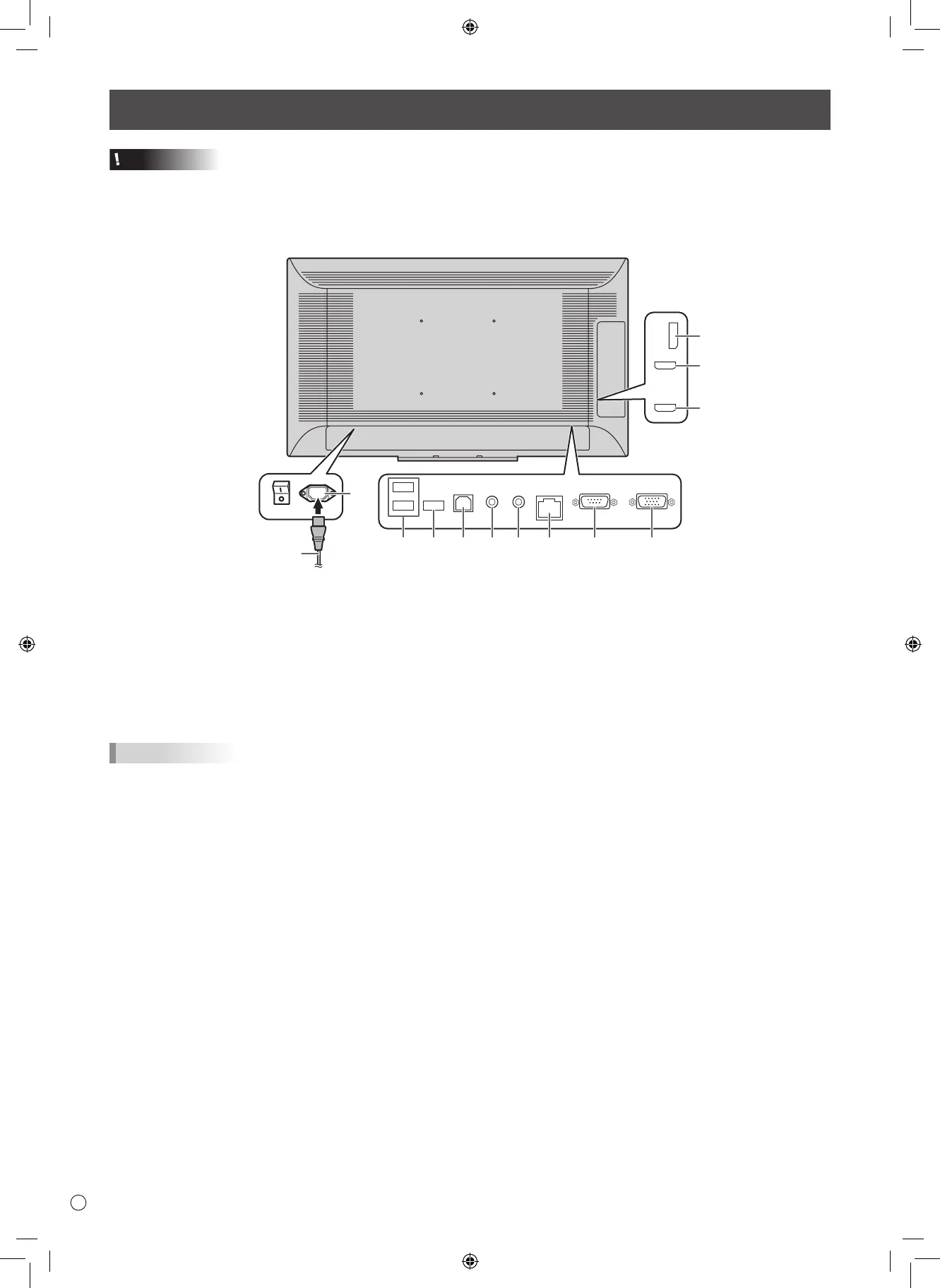

1. AC input terminal
2. USB port
3. USB port (for touch panel)
4. Audio output terminal
5. Audio input terminal
6. LAN terminal
7. RS-232C input terminal
8. D-sub input terminal
9. DisplayPort input terminal
10. HDMI1 input terminal
11. HDMI2 input terminal
* Terminal for rmware updating
Normally not used.
1
9
10
11
2 * 3 4 5 7 86
For power outlet
Power cord
(Supplied)
