PN-R706 Dismantle Instruction
5

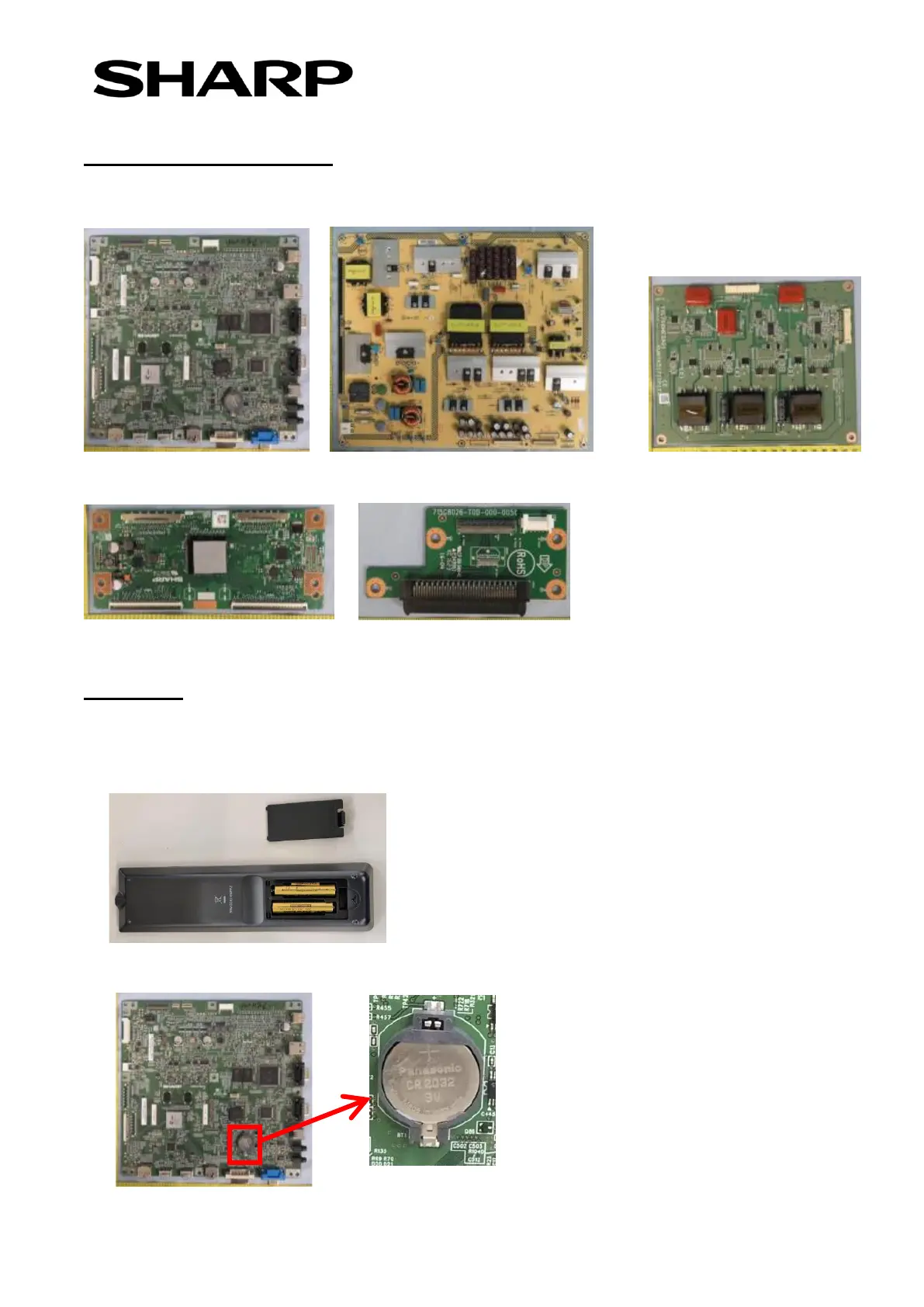

5. Printed circuit boards
All PWBs can be removed by screw driver.
Main I/F PWB (1pcs) Power PWB (1pcs) LED driver PWB (1pcs)
T-CON PWB (1pcs) OPS PWB (1pcs)
6. Battery
This model uses AAA battery for remote control and CR2032 Lithium Coin battery on Main I/F PWB.
-The remote control battery can be easily removed.
-The battery CR2032 on the main I/F PWB can be easily removed from the battery holder.
To Next Page
