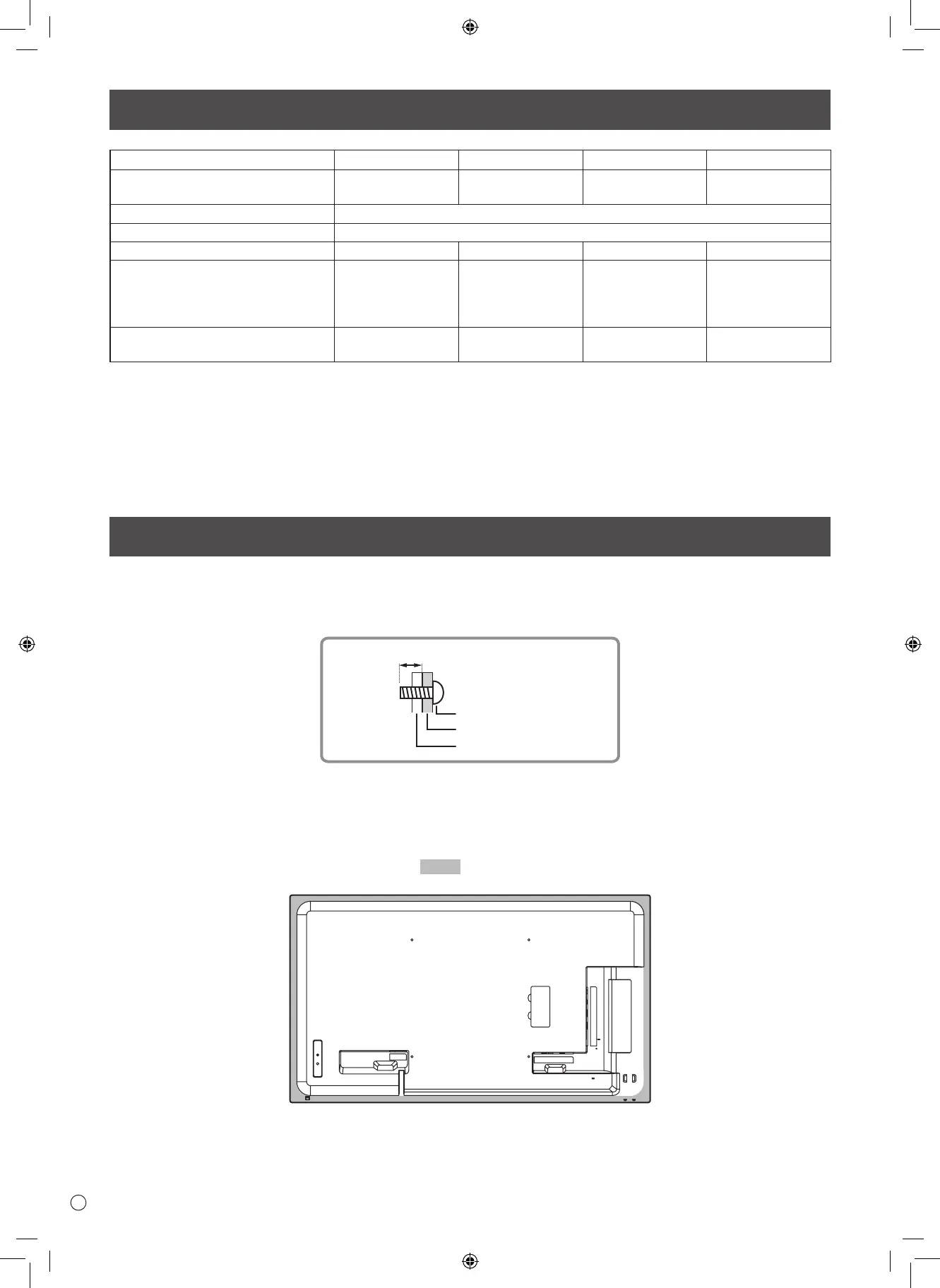

Sharp PN-Y496 - Specifications; Mounting Precautions (for SHARP Dealers and Service Engineers)

8
E
• When installing, removing or moving the monitor, ensure that this is carried out by at least 2 people.
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the
thickness of the mounting bracket.
Screws (M6)
Mounting bracket
Monitor mounting
5/16 - 3/8 inch (8-10 mm)
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials
such as plaster / thin plastic board / wood before starting installation.
• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
Install by the most suitable method for the material and the structure.
• Do not use an impact driver.
• When moving the monitor, hold the parts marked by
below. Do not hold the LCD panel. This may cause product
damage, failure, or injury.
• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.
• If you will use the monitor in a at installation (tilted more than 20° (upward or downward) from a perpendicular state with
respect to the horizontal plane), please contact customer service. Special installation conditions apply in a at installation.
Model
PN-Y556 PN-Y496 PN-Y436 PN-Y326
Power requirement AC 100 - 240 V,
1.2 A, 50/60 Hz
AC 100 - 240 V,
1.0 A, 50/60 Hz
AC 100 - 240 V,
0.9 A, 50/60 Hz
AC 100 - 240 V,
0.8 A, 50/60 Hz
Operating temperature * 32°F to 104°F (0°C to 40°C)
Operating humidity 20% to 80% (no condensation)
Power consumption 105 W 87 W 76 W 69 W
Dimensions (excluding protrusions)
inch (mm)
Approx. 48-9/16 (W) x
1-13/16 (D) x
27-15/16 (H)
(1233.0 x 46.0 x 710.0)
Approx. 43-3/16 (W) x
1-13/16 (D) x
24-15/16 (H)
(
1097.0 x 46.0 x 634.0 )
Approx. 38 (W) x
1-13
/16 (D) x
22 (H)
(96
5.0 x 46.0 x 559.0)
Approx. 28-1/2 (W) x
2-3/16 (D) x
16-11/16 (H)
(724.5 x 56.0 x 424.0)
Weight
lbs. (kg)
Approx. 54.0 (24.5) Approx. 44.1 (20.0) Approx. 33.1 (15.0) Approx. 19.8 (9.0)
* Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases,
please check the temperature condition specied by the optional equipments.
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specication changes for product improvement
without prior notice. The performance specication gures indicated are nominal values of production units. There may be some deviations from
these values in individual units.
Specications
Mounting Precautions (For SHARP dealers and service engineers)
