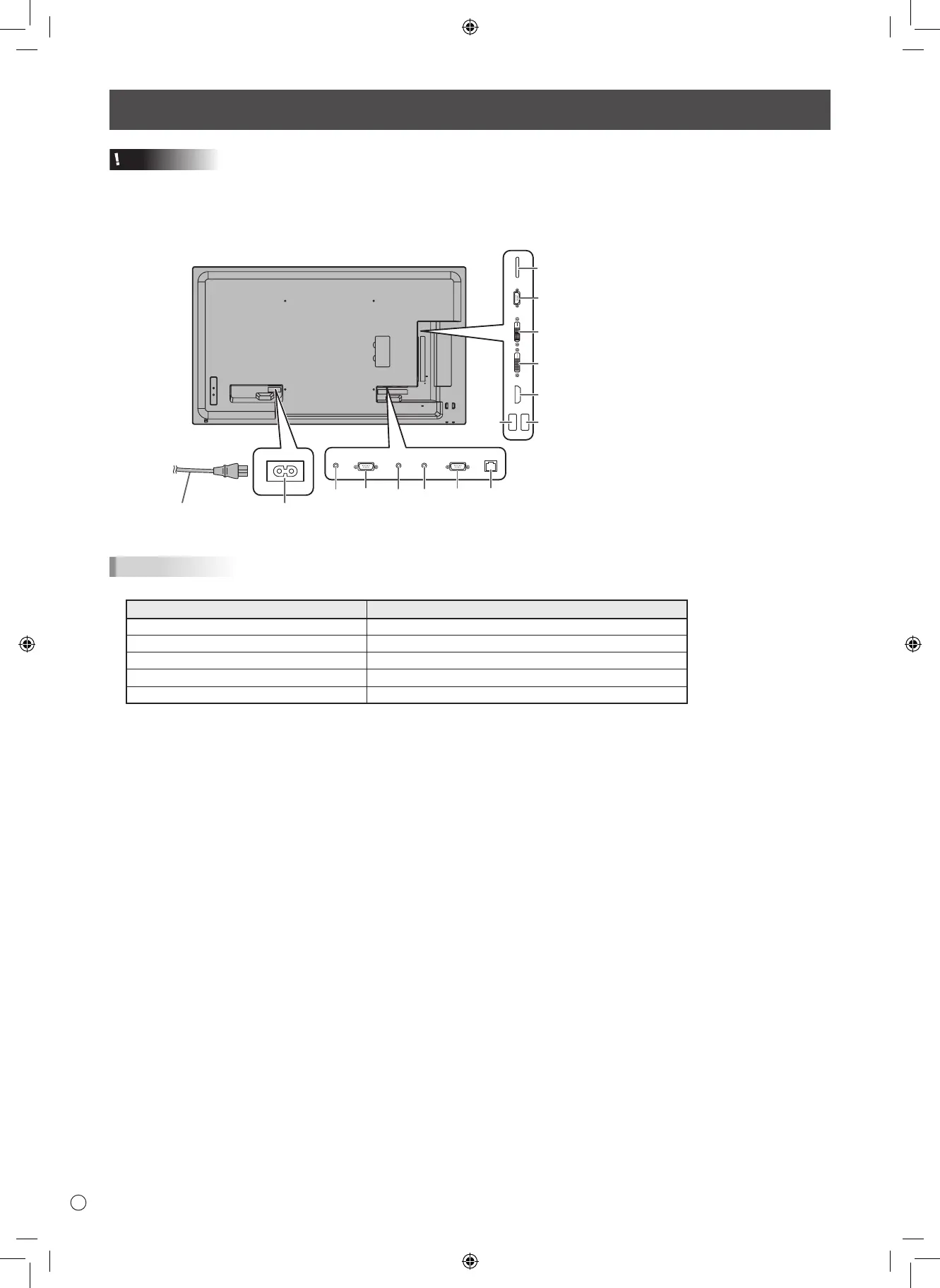

Connections
Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
634 512
10
9
7
11
12
8
13
AC input terminal
Power cord
(Supplied)
For power outlet
TIPS
• The audio input terminals used in each input mode are factory-set as follows.
Input mode Audio input terminal
DVI-D PC audio input terminal
HDMI[PC], HDMI[AV] HDMI input terminal / PC audio input terminal*
D-SUB[RGB] PC audio input terminal
D-SUB[COMPONENT], D-SUB[VIDEO] AV audio input terminal
Media Player USB port / SD card slot
* DVI mode in which the HDMI signal does not include an audio signal.
• The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing LLC, in the United States and other countries.
• Adobe, Acrobat, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United
States and/or other countries.
• SD and SDHC Logos are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
• All other brand and product names are trademarks or registered trademarks of their respective holders.
1. Audio output terminal
2. RS-232C output terminal
3. PC audio input terminal
4. AV audio input terminal
5. RS-232C input terminal
6. LAN terminal
7. SD card slot
8. D-sub input terminal
9. DVI-D output terminal
10. DVI-D input terminal
11. HDMI input terminal
12. USB port
13. Power supply terminal
