Attach the Wall Mount Bracket (not included)

Before you begin the third-party manufacturer instructions, be

sure to do the following things:

1. Place the TV face down on a clean, safe and cushioned surface.

2. Remove the TV stand if you already attached it.

3. Place the spacers (not included) in the corresponding bracket

holes.

CAUTION:

• Whenyouattachthemount,besuretousethespacers

(providedbythethird-partymanufacturer)betweentheTV

and the bracket.

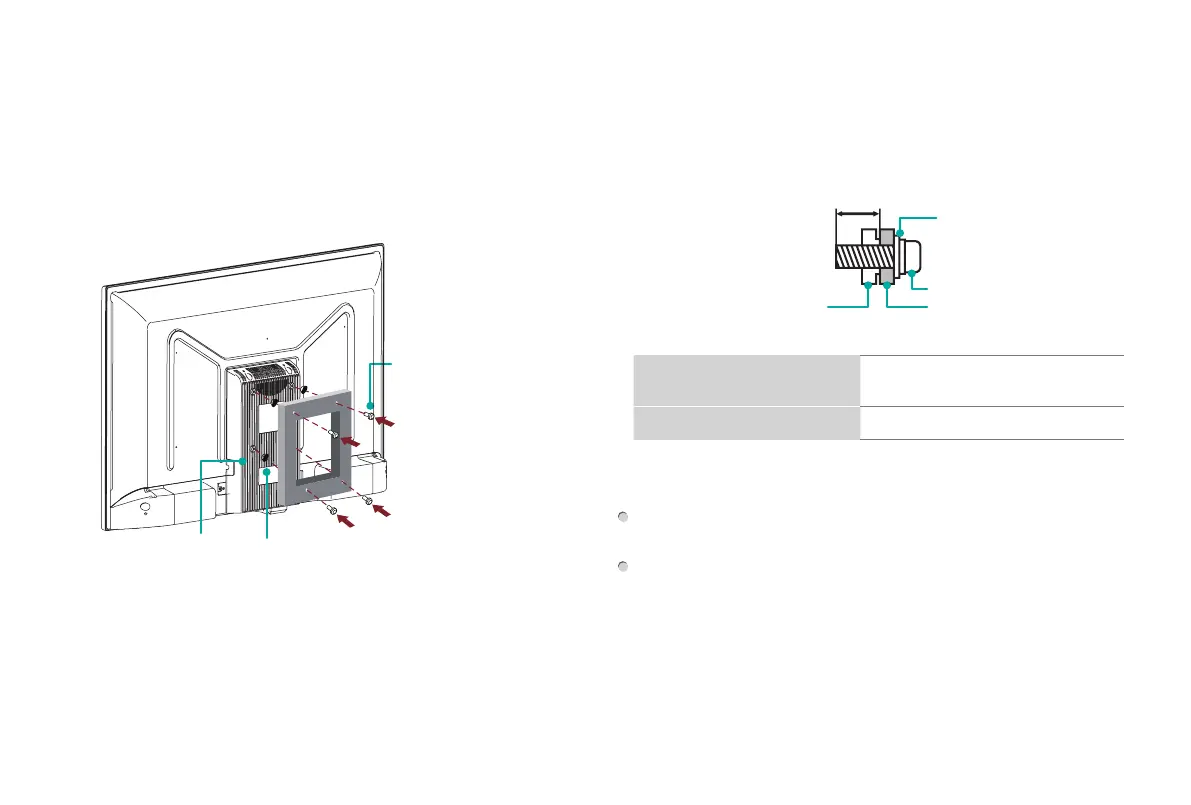

Screw

(not provided)

Bracket

(not provided)

Spacer

(not provided)

• To preventinternaldamagetotheTVandensureitis

mountedsecurely,besuretousefixingscrews(not

provided)thatare8-10mminlengthwhenmeasuredfrom

the attaching surface of the mounting hook.

Rear cover of the TV Spacer

Screw

Wall mount bracket

8.0 - 10.0 mm

Wall mount hole pattern

VESA (mm)

100 × 100

Wall mount screw size (mm) M4

Follow instructions provided with the Wall mount bracket.

To complete the installation, please contact the wall-mount

manufacturer or the retailer from which you purchased the TV.

The selected screws are 8.0 - 10.0 mm in length when

measured from the attaching surface of the rear cover.

NOTE: The diameter and length of the screws differ

dependingonthewallmountbracketmodel.

Sharp Q5000 Series User Manual
