R-201EW
Electrical Requirements
The electrical requirements are a 115 -120 volt 60 Hz, AC only,
15 or 20 amp. fused electrical supply. It is recommended that a separate
circuit serving only this appliance be provided. When installing this
appliance, observe all applicable codes and ordinances.
A short power-supply cord is provided to reduce risks of becoming
entangled in or tripping over a longer cord.
Where a two-pronged wall-receptacle is encountered, it is the personal
responsibility and obligation of the customer to contact a qualified
electrician and have it replaced with a properly grounded three-pronged
wall receptacle or have a grounding adapter properly grounded and
polarized. If the extension cord must be used, it should be a 3-wire, 15
amp. or higher rated cord. Do not drape over a countertop or table where
it can be pulled on by children or tripped over accidentally.
3-Pronged Plug
Grounded
Receptacle Box
Grounding Pin
3-Pronged Receptacle

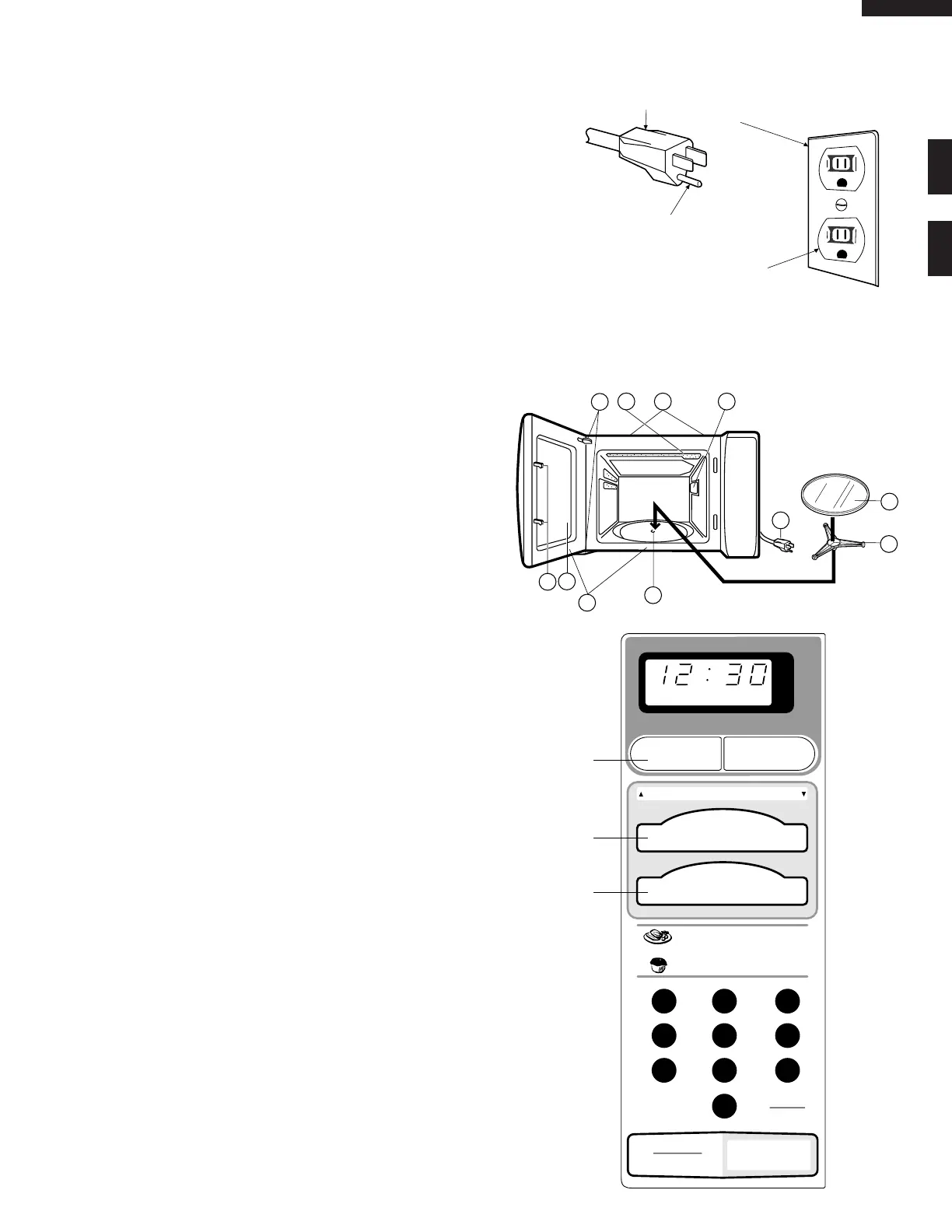

OVEN DIAGRAM
1. Oven door with see-through window
2. Safety door latches
3. Door hinges
4. Door seals and sealing surfaces
5. Turntable motor shaft
6. Removable turntable support
7. Removable turntable
8. Ventilation openings (Rear)
9. Oven lamp
10. Wave guide cover
11. Power supply cord
TOUCH CONTROL PANEL
CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE ROUND GROUNDING PRONG FROM
THIS PLUG.
NOTE:
The directed features are disabled after one minute
when the oven is not in use. These features are automati-
cally enabled when the door is opened and closed or the
STOP/ CLEAR pad is pressed.
8
10
11
9
1
2
5
7
3
4
6
123
456
78
O
9
DEF. LBS. QTY.
CHECK
ON
MINUTE
PLUS
EXPRESS
DEFROST
See NOTE
See NOTE
See NOTE
SNACKS
COOKING
POPCORN
BAKED
POTATO
DINNER
PLATE
REHEAT
ROLLE/MUFFIN
3-4 min.
10-15 sec.
REHEAT 1 medium
POWER
LEVEL
TIMER
CLOCK
STOP
CLEAR
START
FRESH
VEGETABLES
BEVERAGE
TO ADJUST QUANTITY TOUCH SAME PAD AGAIN
