Sharp R-22AT Service Manual

50
R-22AT
R-23AM
R-24AT
6
45
1
2
3
6
45
1
2
3
A
B
C
D
E
F
G
H
A
B
C
D
E
F
G
H
R200 VRD-B12EF472J Resistor 4.7k ohm 1/4W 1 AA
R201 VRD-B12EF682J Resistor 6.8k ohm 1/4W 1 AA
R300 VRD-B12EF105J Resistor 1.0M ohm 1/4W 1 AA
(J2) VRD-B12EF822J Resistor 8.2k ohm 1/4W [R-24AT] 1 AB
(J3) VRD-B12EF363J Resistor 36k ohm 1/4W [R-24AT] 1 AA
RY1 RRLY-A078DRE0 Relay (OJ-SH-118LM) 1 AG
RY3-4 RRLY-A087DRE0 Relay (VS18MB) 2 AN
SP1 RALM-A014DRE0 Buzzer (PKM22EPT) 1 AG
T1 RTRNPA081DRE0 Touch control transformer 1 AU
CT1-2 RTRN-A060DRE0 Current transformer 2 AH
VRS1 RH-VZA010DRE0 Varistor (TNR15G471K) 1 AE
ZD1 VHEHZ12C1//-1 Zener diode (HZ12C1) 1 AA
ZD2 VHEHZ4C3///-1 Zener diode (HZ4C3) 1 AA
3- 2 FPNLCB469WRK0 Control panel frame with key unit assembly 1 BA
3- 2-1 FUNTKA964WRE0 Key unit 1 AW
3- 2-2 HDECAA195WRP0 Decoration metal fittings 1 AP
3- 2-3 PCUSUA451WRP0 Cushion 1 AB
3- 3 LANGTA243WRW0 Control panel mounting angle 1 AF
3- 4 XEPSD30P10XS0 Screw; control unit mounting 6 AA
3- 5 XEPSD40P12000 Screw; control panel mounting angle mounting 1 AA
3- 6 XHTSD40P08RV0 Screw; decoration panel mounting 1 AA
3- 7 XCTSD40P08000 Screw; decoration panel mounting for earth 1 AA

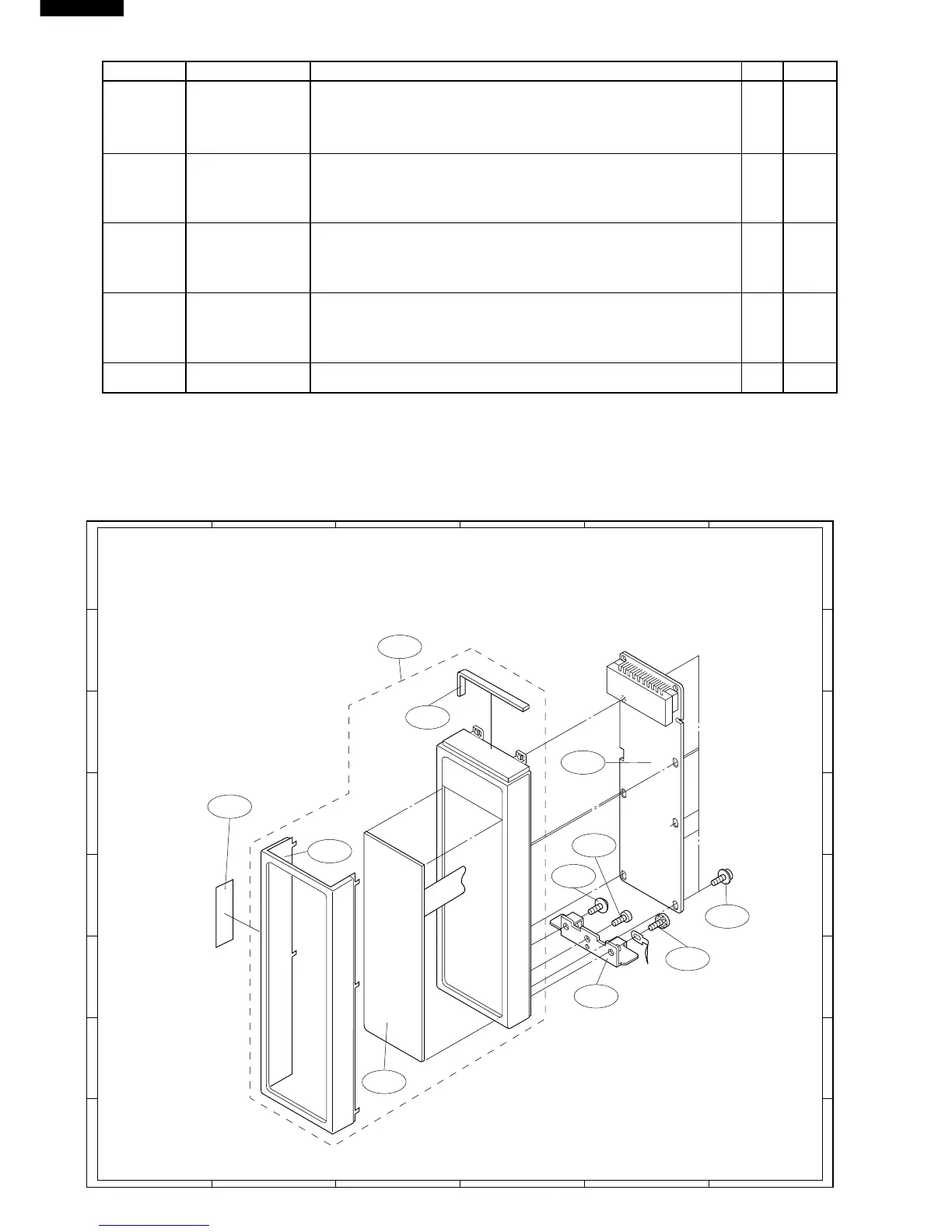

CONTROL PANEL PARTS
R-22AT, R-24AT
3-6
3-4
3-5
3-7
3-3
3-2-1
3-2-2
3-2
3-1
3-2-3
6-9
REF. NO. PART NO. DESCRIPTION Q'TY CODE
HOW TO ORDER REPLACEMENT PARTS
To have your order filled prompty and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION
