R-230F
28
HOW TO ORDER REPLACEMENT PARTS
To have your order filled prompty and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION
Note: The parts marked "∆" may cause undue microwave exposure.
The parts marked "*" are used in voltage more than 250V.
REF. NO. PART NO. DESCRIPTION Q'TY CODE
∆
∆
∆
∆
∆
OVENPARTS
4- 1 PHOK-A122WRFZ Latch hook 1 AM
4- 2 LBNDKA038WRP0 Capacitor holder 1 AF
4- 3 NFANJA029WRE0 Fan blade 1 AK
4- 4 PDUC-A777WRPZ Fan duct 1 AP
4- 5 FOVN-A483WRTZ Oven cavity 1 BF
4- 6 GCOVHA425WRPZ Turntable motor cover 1 AK
4- 7 MLEVPA241WRFZ Switch lever 1 AG
4- 8 PCOVPA276WRE0 Waveguide cover 1 AM
4- 9 PCUSUA237WRP0 Cushion 2 AF
4-10 PPACGA176WREZ TTM packing 1 AC
4-11 PCUSUA278WRP0 Cushion 1 AB
4-12 PCUSGA389WRP0 Cushion 1 AG
4-13 PCUSGA568WREZ Cushion 1 AC
DOORPARTS
5- 1 FDORFA348WRTZ Door panel assembly 1 BC
5- 2 GWAKPA836WRRZ Door frame 1 AW
5- 3 HPNL-A764WREZ Door screen 1 AP
5- 4 LSTPPA205WRFZ Latch head 1 AF
5- 5 MSPRTA187WRE0 Spring 1 AC
5- 6 PSHEPA782WREZ Sealer film 1 AG
5- 7 GCOVHA424WRFZ Choke cover 1 AK
MISCELLANEOUS
6- 1 NTNT-A094WRE0 Turntable 1 AN
6- 2 FROLPA099WRKZ Turntable support 1 AP
6- 3 TCAUHA214WRR0 K caution label 1 AC
6- 4 FW-VZB889WREZ Main wire harness 1 AV
6- 5 TINSEA921WRRZ Instruction book 1 AL
6- 6 FW-VZB888WREZ Switch harness 1 AU
6- 7 TSPCND167WRRZ Rating label 1 AE
SCREWS,NUTS AND WASHERS
7- 1 XHPSD40P08K00 screw : 4 mm x 8 mm 5 AC
7- 2 XHTSD40P08RV0 Screw : 4mm x 8mm 4 AA
7- 3 XOTSD40P08000 Screw : 4mm x 8mm 7 AA
7- 4 LX-CZ0052WRE0 Special screw 2 AA
7- 5 LX-EZA042WRE0 Special screw 2 AB
7- 6 XHPSD30P06000 Screw : 3mm x 6mm 1 AA
7- 7 XHPSD40P08000 Screw : 4mm x 8mm 3 AA
7- 8 XOTSD40P12RV0 Screw : 4mm x 12mm 5 AA
7- 9 XOTSE40P08000 Screw : 4mm x 8mm 2 AA

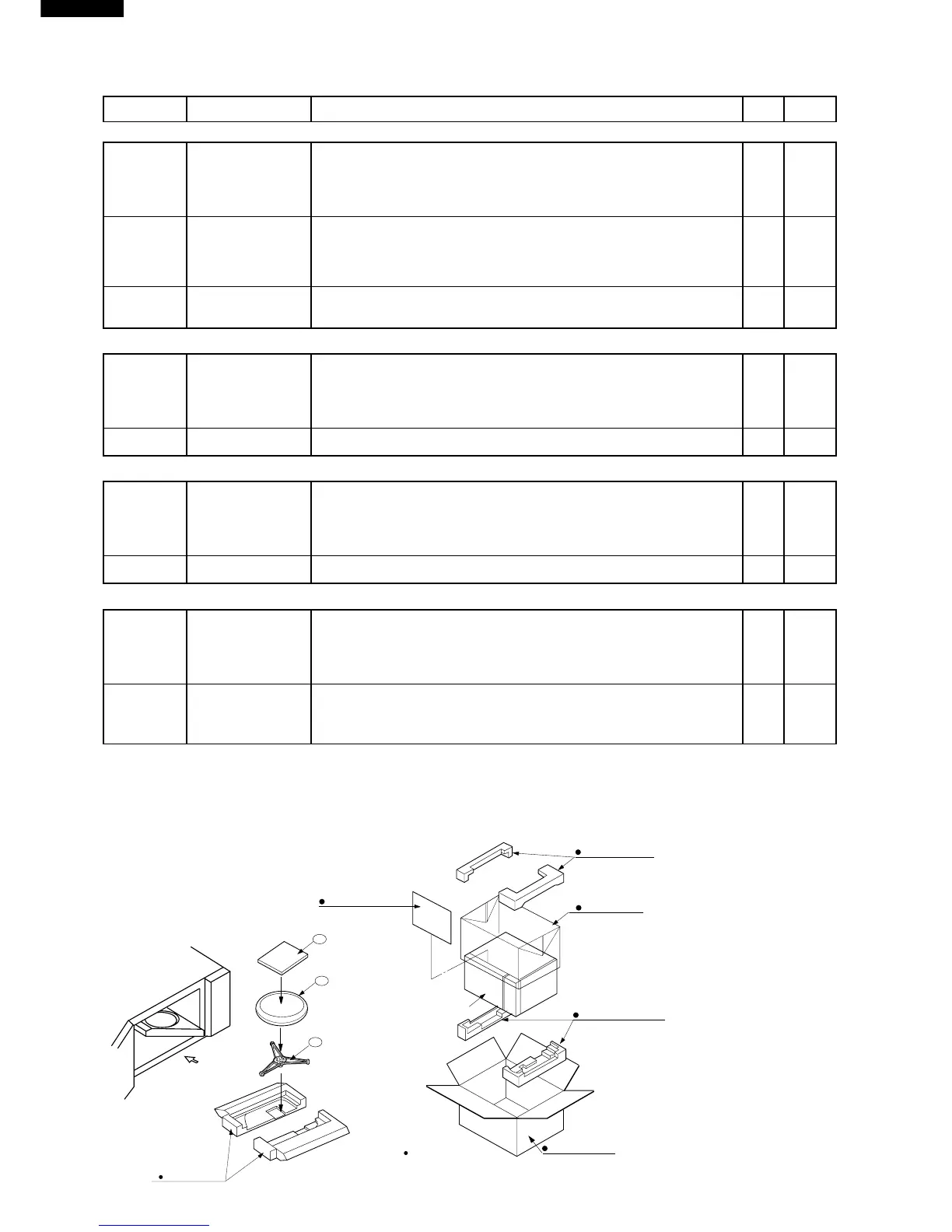

PACKING AND ACCESSORIES
6-1 TURNTABLE TRAY
6-5 INSTRUCTION BOOK
6-2 TURNRTABLE SUPPORT
INTO THE
OVEN CAVITY
Not replaceable items.
TRAY PAD ASSY
(CPADBA296WRKZ)
PACKING CASE
MICROWAVE OVEN
TOP PAD ASSEMBLY
FPADBA459WRKZ
WRAP COVER
SSAKHA014WRE0
SPAKCD698WREZ
BOTTOM PAD ASSEMBLY
FPADBA460WRKZ
DOOR PROTECT SHEET
SPADPA580WRE0
