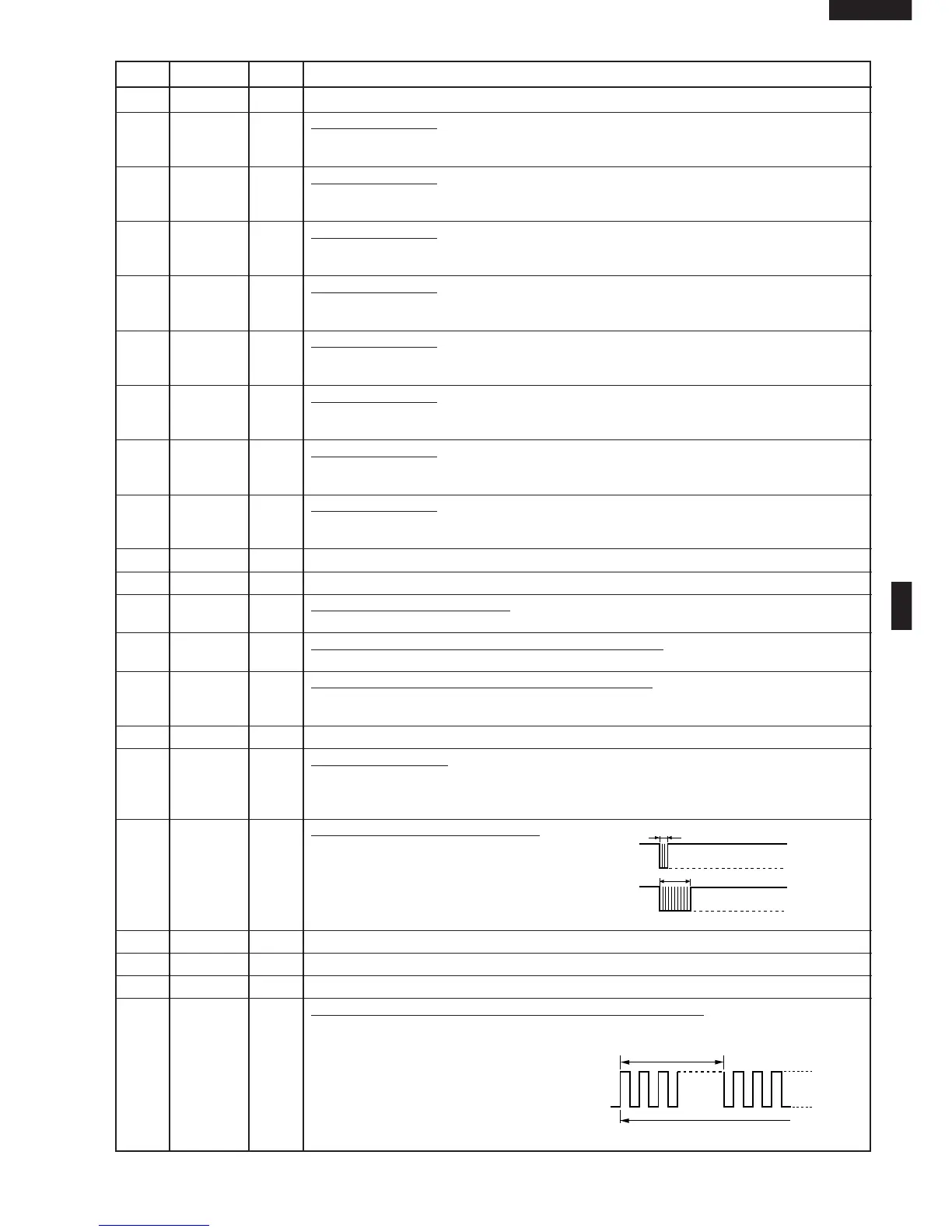

R-380D
17
3 AVSS IN Connected to VC.
4 P10 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to AN9, AN10, AN11, P41 and
P42 terminal while one of G8 line keys on key matrix is touched.
5 P11 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to AN9, AN10, AN11, P41 and
P42 terminal while one of G7 line keys on key matrix is touched.
6 P12 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to AN9, AN10, AN11, P41 and
P42 terminal while one of G6 line keys on key matrix is touched.
7 P13 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to AN9, AN10, AN11, P41 and
P42 terminal while one of G5 line keys on key matrix is touched.
8 P14 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to AN9, AN10, AN11, P41 and
P42 terminal while one of G4 line keys on key matrix is touched.
9 P15 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to AN8, AN9, AN10, AN11,
P41 and P42 terminal while one of G3 line keys on key matrix is touched.
10 P16 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to AN9, AN10, AN11, P41 and
P42 terminal while one of G2 line keys on key matrix is touched.
11 P17 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to AN9, AN10, AN11, P41 and
P42 terminal while one of G1 line keys on key matrix is touched.
12 X1 IN Connected to GND.
13 X2 OUT Terminal not used.
14 VSS IN Power source voltage: -5.0V.
VC voltage of power source circuit input.
15 OSC2 OUT Internal clock oscillation frequency control output.
Output to control oscillation input of OSC2.
16 OSC1 IN Internal clock oscillation frequency input setting.
The internal clock frequency is set by inserting the ceramic filter oscillation circuit with
respect to OSC1 terminal.
17 TEST IN Connected to VC.
18 RES IN Auto clear terminal.
Signal is input to reset the LSI to the initial state when power is applied. Temporarily set
"L" level the moment power is applied, at this time the LSI is reset. Thereafter set at "H"
level.
19 P20 OUT Signal to sound buzzer (2.0 kHz).
A: key touch sound.
B: Completion sound.
20 P21 OUT Terminal not used.
21 P22 IN/OUT Terminal not used.
22 P23 OUT Terminal not used.
23 P24 OUT Oven lamp, fan motor and turntable motor driving signal
To turn on and off shut off relay (RY1). The square waveform voltage is delivered to the
RY1 driving circuit and RY2 control circuit.
Pin No. Signal I/O Description
A
B
0.12 sec.
2.4 sec.
H : GND
L : -5V
H : GND
L : -5V
To Next Page
