Sharp R-530EK-T User Manual

R530EWT
5
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[3] DOOR AND CONTROL PANEL PARTS for R-530ES-T
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
5-3 MSPRTA084WRE0 AB Latch spring
* 5-4 FDORFB075MRT0 AZ Door panel
5-5 PSHEPB016MRE0 AK Sealer film
* 5-6 GCOVHA523WRFZ AV Choke cover
5-7 XEPS730P06XS0 AB Door screw
5-8 PGLSPA713WREZ AV Door glass (R-530EK-T)
5-8 PGLSPA714WREZ AT Door glass (R-530EW-T)
5-9 LSTPPA256WRFZ AG Door glass stopper
MISCELLANEOUS
6-1 FW-VZC149WREZ AX Main wire harnes
6-6 TINSEB148WRRZ AM Operation manual
6-8 TCADCA933WRRZ AM Recipe card
[3] DOOR AND CONTROL PANEL PARTS for R-530ES-T
CONTROL PANEL PARTS
3-1 DPWB-A559DRKZ BR Control unit
3-2 FPNLCB962WRKZ BB Panel sub assembly
3-2-1 FUNTKB281MRE0 AU Key unit
3-2-2 HDECAA347WRPZ AP Panel decoration
3-3 JBTN-B445WRFZ AK Open button
3-5 MSPRCA157WREZ AF Open button spring
3-6 XEPS730P08XS0 AB Screw; 3mm x 8mm
DOOR PARTS
* 5-1 FCOV-A017WRKZ BH Door frame assembly
* 5-2 LSTPPA139WRF0 AE Latch head
5-3 MSPRTA084WRE0 AB Latch spring

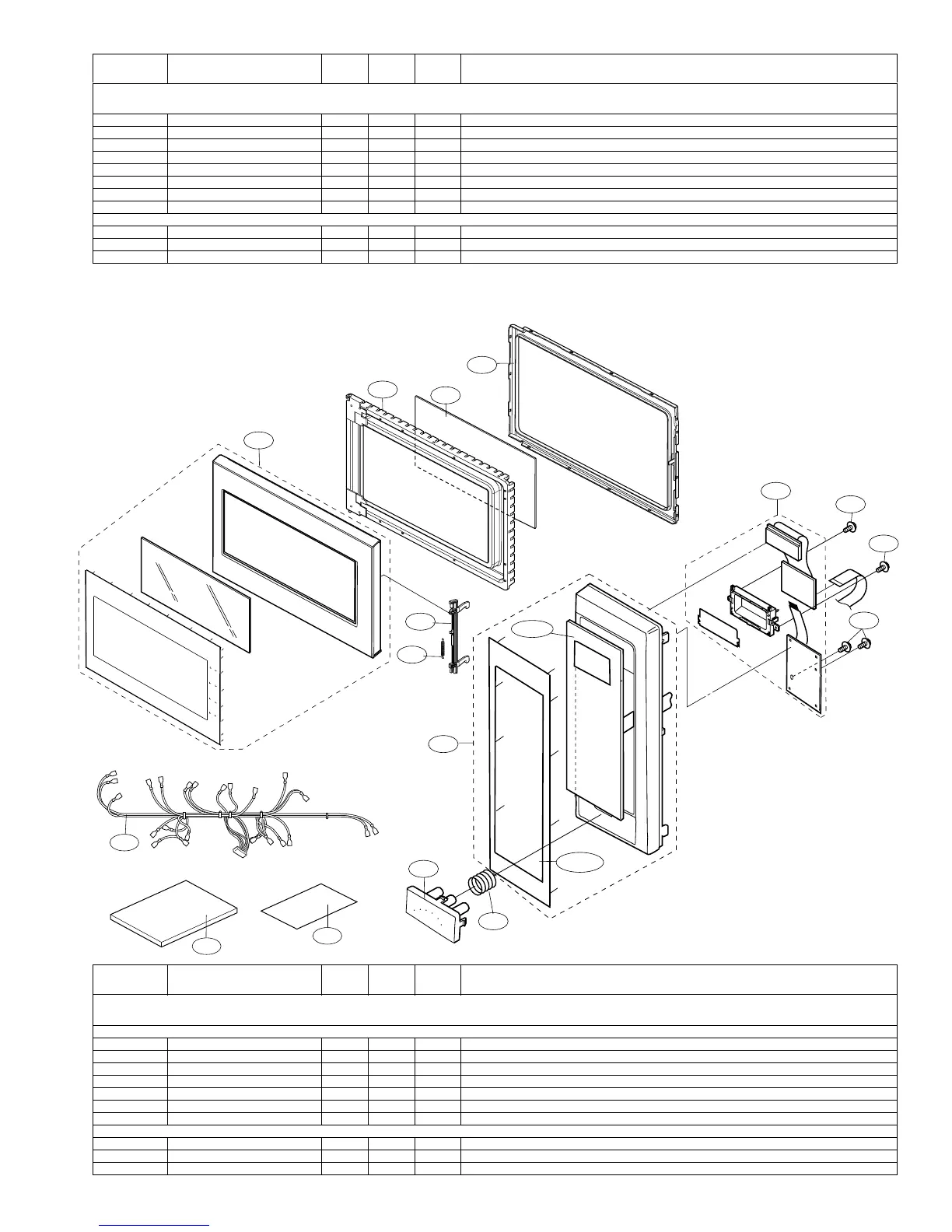

[2] DOOR AND CONTROL PANEL PARTS for R-530EK-T/530EW-T
Actual wire harness may be different from illustration.
for R-530ES-T
6-1
6-6
6-8
5-1
5-3
5-2
5-6
5-4
5-5
3-2-1
3-5
3-3
3-2
3-2-2
3-6
3-6
3-1
3-6
