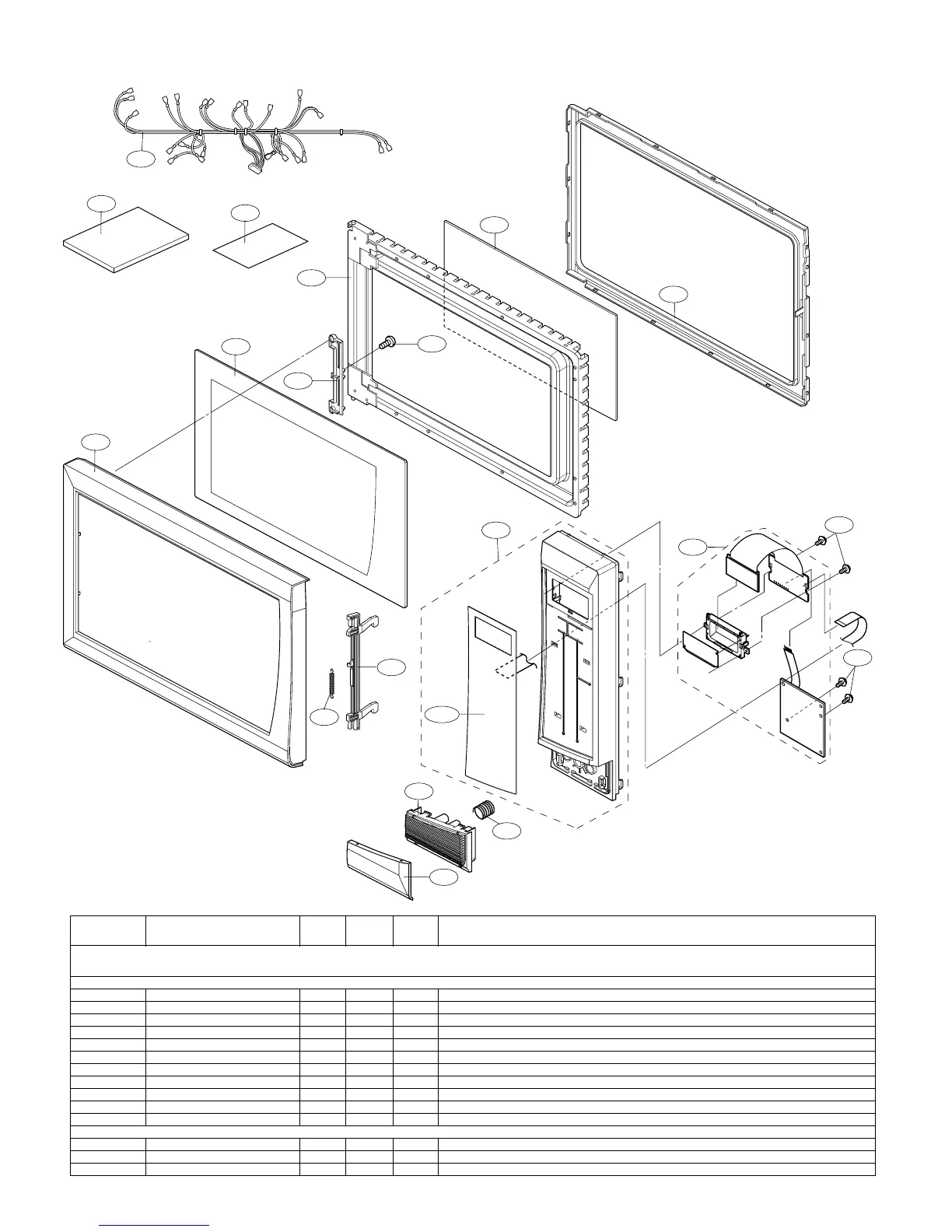

[2] DOOR AND CONTROL PANEL PARTS for R-530EK-T/530EW-T
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[2] DOOR AND CONTROL PANEL PARTS for R-530EK-T/530EW-T
CONTROL PANEL PARTS
3-1 DPWB-A558DRKZ BR Control unit
3-2 FPNLCB959WRKZ BA Panel sub assy (R-530EK-T)
3-2 FPNLCB960WRKZ BA Panel sub assy (R-530EW-T)
3-2-1 FUNTKB297MRE0 AT Key unit (R-530EK-T)
3-2-1 FUNTKB298MRE0 AT Key unit (R-530EW-T)
3-3 JBTN-B442WRFZ AH Open button (R-530EK-T)
3-3 JBTN-B443WRFZ AH Open button (R-530EW-T)
3-4 HDECQA370WRFZ AL Open button decoration (R-530EK-T)
3-4 HDECQA371WRFZ AL Open button decoration (R-530EW-T)
3-5 MSPRCA157WREZ AF Open button spring
3-6 XEPS730P08XS0 AB Screw; 3mm x 8mm
DOOR PARTS
* 5-1 GWAKPB129WRRZ AX Door frame (R-530EK-T)
* 5-1 GWAKPB131WRRZ AX Door frame (R-530EW-T)
* 5-2 LSTPPA139WRF0 AE Latch head
Actual wire harness may be different from illustration.
for R-530EK-T/530EW-T
6-1
5-5
5-6
3-2-1
3-3
3-5
3-4
5-4
5-9
5-2
3-2
3-6
3-6
3-1
5-7
5-1
6-6
6-8
5-3
5-8
