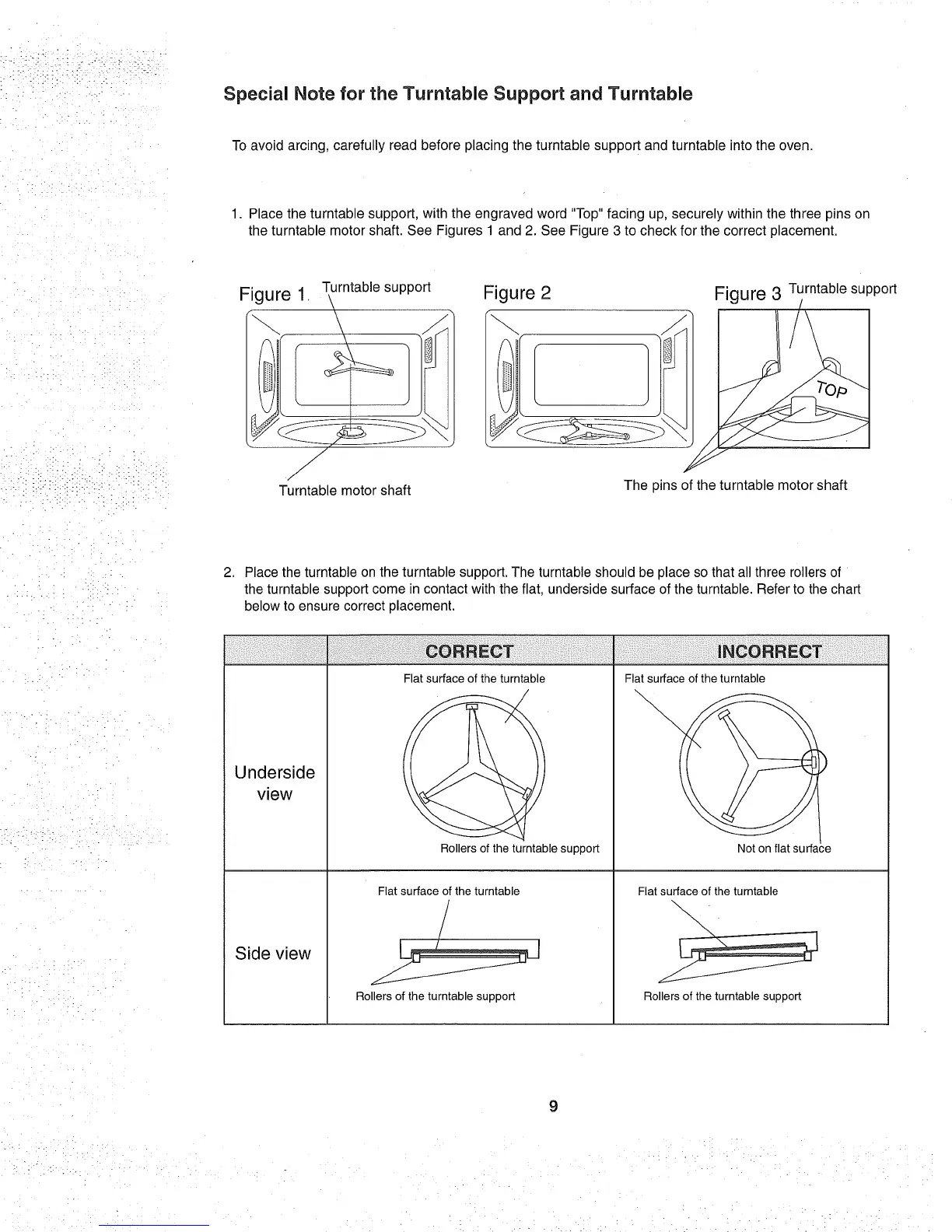

Special Note for the Turntable Support and Turntable
To avoid arcing, carefully read before ;)lacing the turntable support and turntable into the oven.
1. Place the turntable support, with the engraved word "Top" facing up, securely within the three pins on
the turntable motor shaft. See Figures 1 anc_2. See Figure 3 to check for the correct placement.
Turntable support
Figure 1 \
7
7
J
/
Turntable motor shaft
Figure 2 Figure 3 Turntable support
The pins of the turntable motor shaft
2. Place the turntable on the turntable support. The turntable should be place so that all three rollers of
the turntable support come irqcontact with the flat. underside surface of the turntable. Refer to the chart
below to ensure correct placement.
Underside
view
Side view
Flat surface of the turntable
Rollersof the turntablesupport
Flat surface of the turntable
Rollersof the turntablesupport
Flat surface of the turntable
Not on flat surface
Flat surface of the turntable
Rollers of the turntable support
