R-9320
R-9450

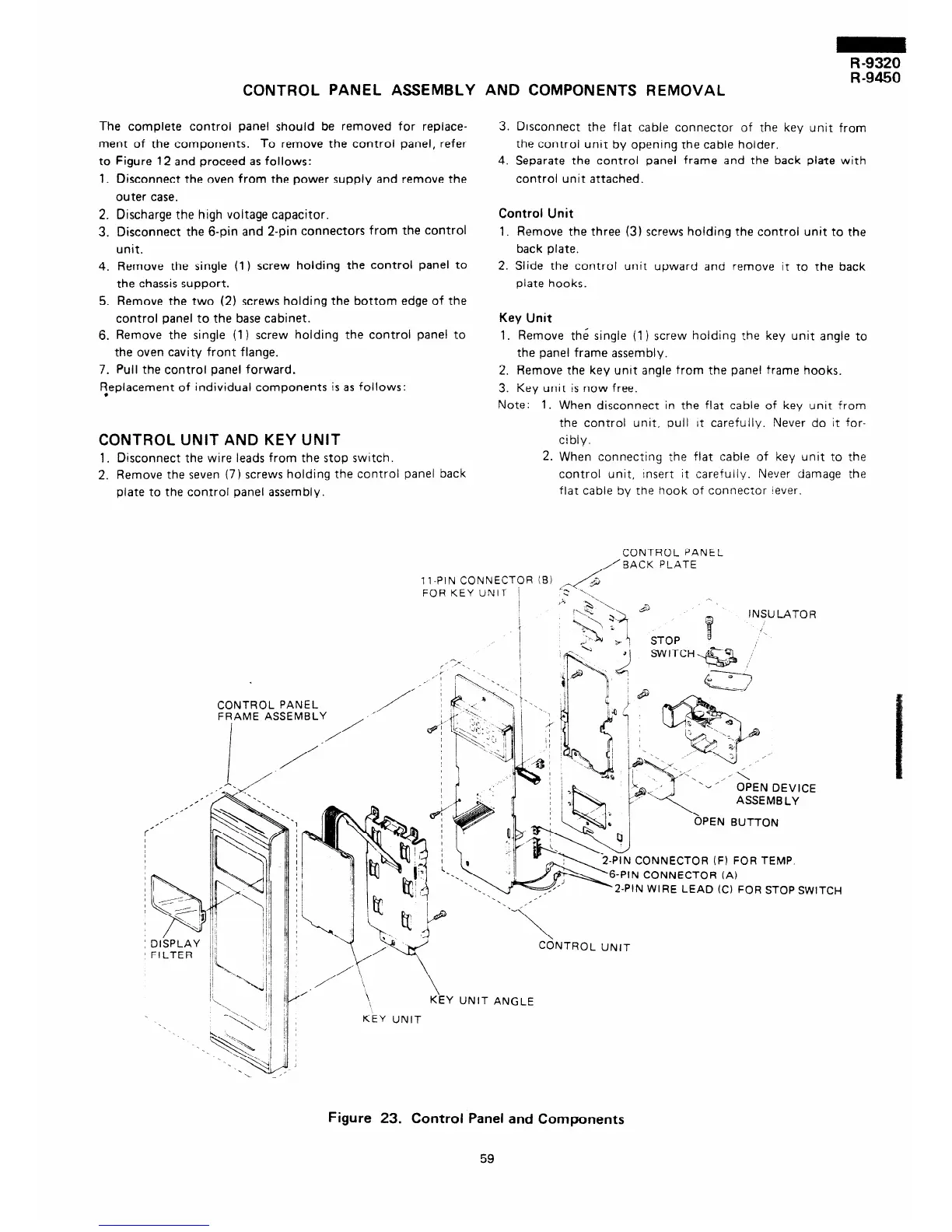

CONTROL PANEL ASSEMBLY AND COMPONENTS REMOVAL
The complete control panel should be removed for replace-
ment of the components. To remove the control panel, refer
to Figure 12 and proceed as follows:
1. Disconnect the oven from the power supply and remove the
outer case.
2. Discharge the high voltage capacitor.
3. Disconnect the 6-pin and 2-pin connectors from the control
unit.
4. Remove the single (1) screw holding the control panel to
the chassis support.
5. Remove the two (2) screws holding the bottom edge of the
control panel to the base cabinet.
6. Remove the single (1 ) screw holding the control panel to
the oven cavity front flange.
7. Pull the control panel forward.
Feplacement of individual components is as foiiows:
CONTROL UNIT AND KEY UNIT
1. Disconnect the wire leads from the stop switch.
2. Remove the seven (7) screws holding the control panel back
plate to the control panel assembly.
3. Disconnect the flat cable connector of the key unit from
the control unit by opening the cable holder.
4. Separate the control panel frame and the back plate with
control unit attached.
Control Unit
2. Slide the control unit upward and remove it to the back
plate hooks.
1. Remove the three (3) screws holding the control unit to the
back plate.
Key Unit
1. Remove the single (1 ) screw holding the key unit angle to
the panel frame assembly.
2. Remove the key unit angle from the panel frame hooks.
3. Key unit is now free.
Note: 1. When disconnect in the fiat cable of key unit from
the control unit, oull It carefully. Never do it for-
ci bly.
2. When connecting the flat cable of key unit to the
control unit, Insert it carefuily. Never damage the
flat cable by the hook of connector lever.
11 -PIN CONNECTOR !B)
cnra KFV I iNiT i
CONTROL PANEL
BACK PLATE
INSULATOR
I\
CONTROL PANEL
FRAME ASSEMBLY
,
1
,’
/
I
‘-’ OPENDEVICE
ASSEMBLY
&EN BUTTON
CONNECTOR (F) FOR TEMP.
N CONNECTOR (A)
-2.PIN WIRE LEAD (C) FOR STOP SWI
‘\
‘\
,,’
‘w’
1
CONTROL UNIT
‘,
K’EY UNIT ANGLE
/
KEY UNIT
‘.
TCH
Figure 23. Control Panel and Components
59
