DOOR REPLACEMENT AND ADJUSTMENT
DOOR REPLACEMENT
1. Disconnect the oven power supply, remove the outer case
and discharge the high voltage capacitor.
2. Remove the four (4) screws holding the door hinge to the
oven cavity.
The door assembly is now free from the oven cavity.
3. On reinstalling new door assembly, secure the door as-
sembly with the four (4) mounting screws to the oven
cavity.
Make sure the door is parallel with the bottom line of the
oven face plate and the latch heads pass through the latch
holes correctly.
Note:
After any service to the door, and approved microwave
survey meter should be used to assure in compliance
with proper microwave radiation standards.
(Refer to Microwave Measurement Procedure.)
DOOR ADJUSTMENT
When removing and/or loosening hinge such as in the case of a
door replacement, the following adjustment cri
teria are taken.
Door is adjusted to meet the following three
conditions by
keeping screws of hinge loose.
1.
2.
3
4
Adjust door latch heads at a position where they smoothly
catch the latch hooks through the latch holes.
Refer to
upper and lower latch switches adjustment.
Deviation of the door alignment from the horizontal line
of the cavity face plate is to be less than 1 .Omm.
The door is positioned with its face depressed toward the
cavity face plate.
Reinstall the outer case and check the microwave leakage
around the door with an approved microwave survey meter.
(Refer to Microwave Measurement Procedure.)
TORX SCREW DRIVER
TOR X SCR EW
(SIZE T-20)
Figure 24. Torx Screw Driver and Torx Screw
OUTER CASE CABINET
HINGE MOUNTING PLATE
& I-
i
~
/
,//
/
‘/
c
\
/
/
/
OVEN FACE PLATE

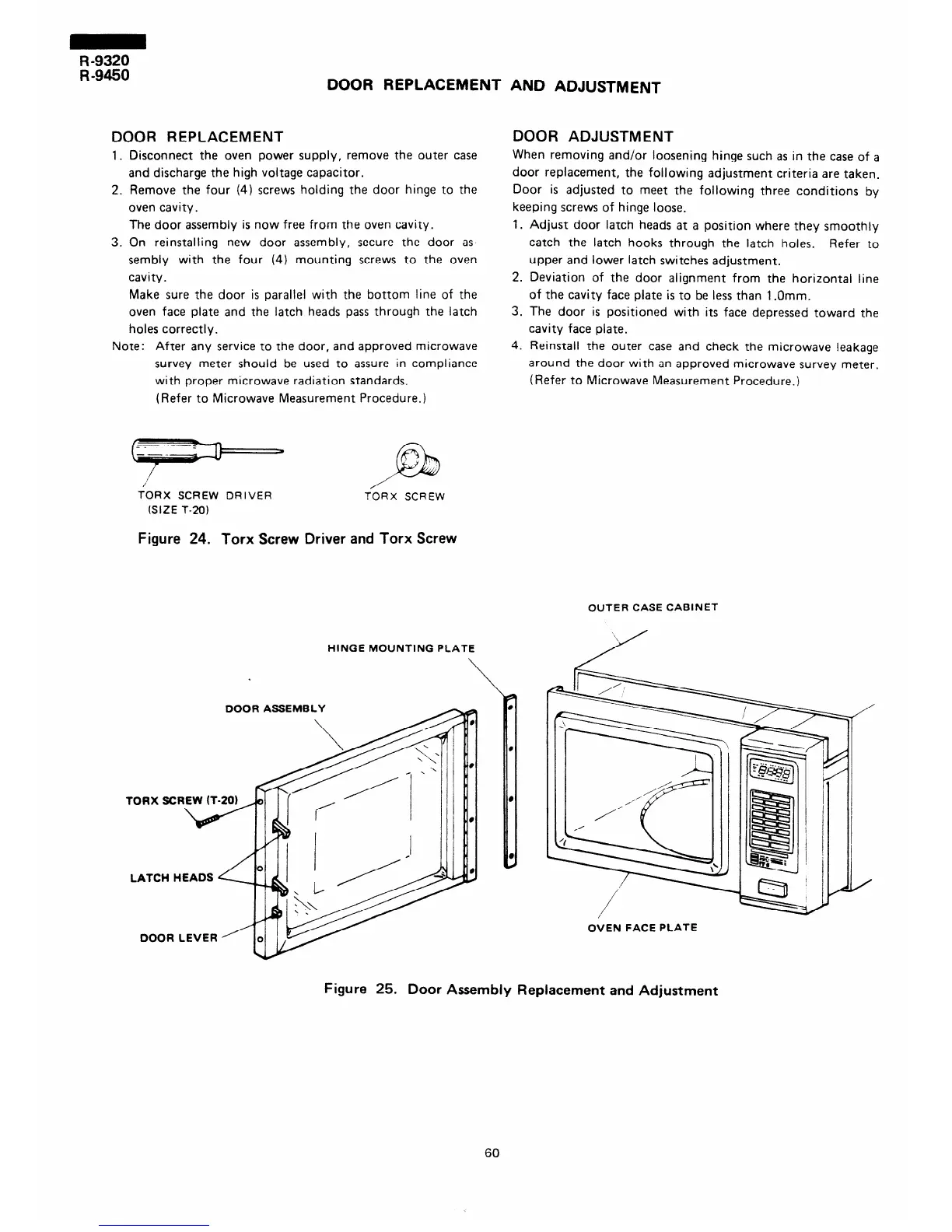

Figure 25. Door Assembly Replacement and Adjustment
