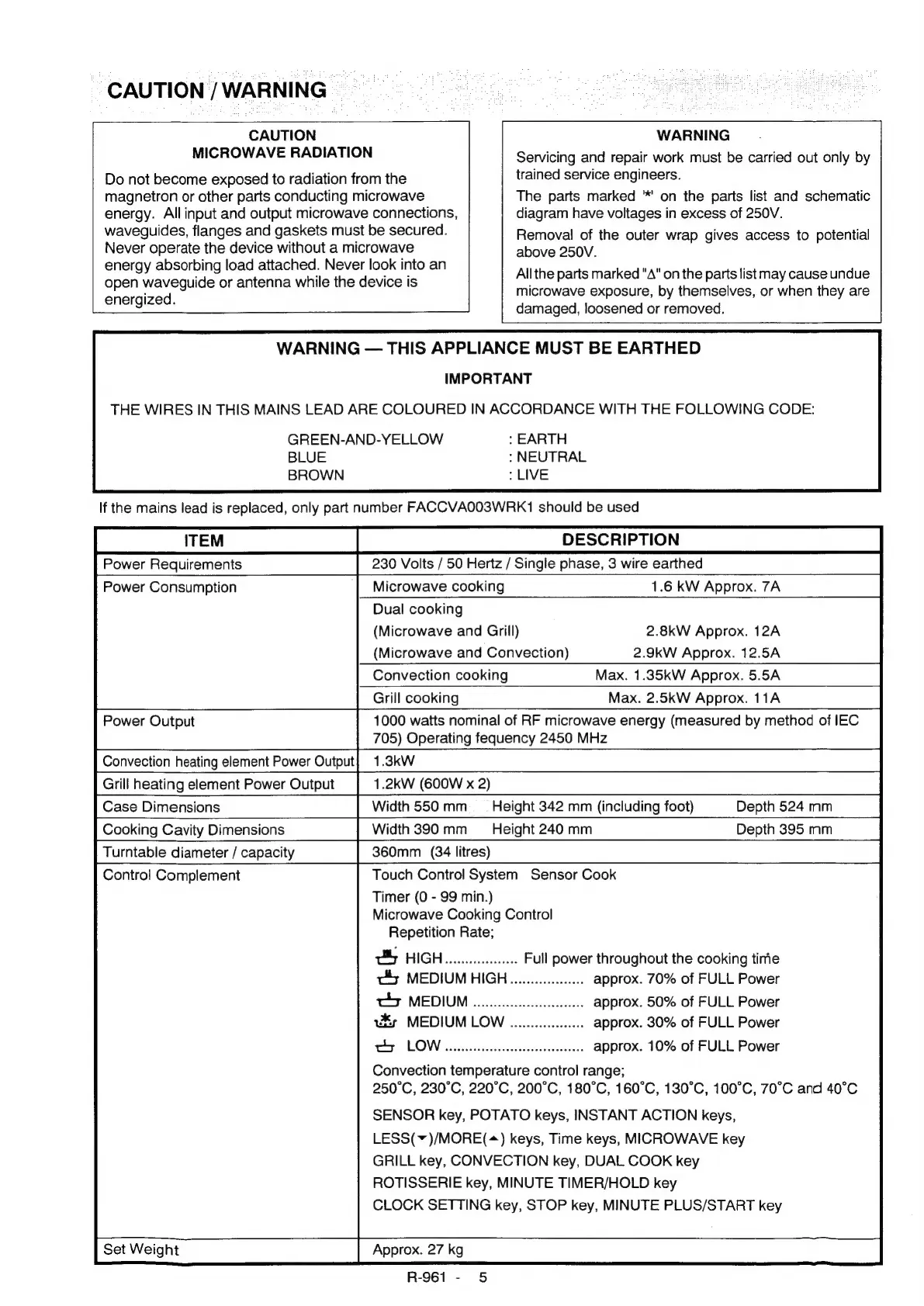

CAUTION / WARNING
CAUTION
MICROWAVE RADIATION
Do not become exposed to radiation from the
magnetron or other parts conducting microwave
energy. Allinput and output microwave connections,
waveguides, flanges and gaskets must be secured.
Never operate the device without a microwave
energy absorbing load attached. Never look into an
open waveguide or antenna while the device is
WARNING
Servicing and repair work must be carried out only by
trained service engineers.
The parts marked ™ on the parts list and schematic
diagram have voltages in excess of 250V.
Removal of the outer wrap gives access to potential
above 250V.
Allthe parts marked "A" on the parts list may cause undue
microwave exposure, by themselves, or when they are
energized.
damaged, loosened or removed.
WARNING — THIS APPLIANCE MUST BE EARTHED
IMPORTANT
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
GREEN-AND-YELLOW : EARTH
BLUE : NEUTRAL
BROWN > LIVE
If the mains lead is replaced, only part number FACCVAO03WRK1 should be used
ITEM DESCRIPTION
230 Volts / 50 Hertz / Single phase, 3 wire earthed
Power Consumption Microwave cooking 1.6 kW Approx. 7A
Dual cooking
(Microwave and Grill)
(Microwave and Convection)
Convection cooking Max. 1.35kW Approx. 5.5A
Grill cooking Max. 2.5kW Approx. 11A
Power Output 1000 watts nominal of RF microwave energy (measured by method of IEC
705) Operating fequency 2450 MHz
Convection heating element Power Output
Grill heating element Power Output 1.2kW (600W x 2)
Width 550 mm _— Height 342 mm (including foot) Depth 524 mm
Cooking Cavity Dimensions Width 390 mm _ Height 240 mm Depth 395 mm
Turntable diameter / capacity 360mm (34 litres)
Control Complement Touch Control System Sensor Cook
Timer (0 - 99 min.)
Microwave Cooking Control
Repetition Rate;
2.8kW Approx. 12A
2.9kW Approx. 12.5A
Full power throughout the cooking timie
approx. 70% of FULL Power
approx. 50% of FULL Power
approx. 30% of FULL Power
approx. 10% of FULL Power
Convection temperature control range;
250°C, 230°C, 220°C, 200°C, 180°C, 160°C, 130°C, 100°C, 70°C and 40°C
SENSOR key, POTATO keys, INSTANT ACTION keys,
LESS(~)/MORE(4) keys, Time keys, MICROWAVE key
GRILL key, CONVECTION key, DUAL COOK key
ROTISSERIE key, MINUTE TIMER/HOLD key
CLOCK SETTING key, STOP key, MINUTE PLUS/START key
Set Weight Approx. 27 kg
R-961 - 5
