Sharp R-961 (W) - Wiring Diagram

WIRING DIAGRAMS
SCHEMATIC
NOTE: CONDITION OF OVEN
1.DOOR CLOSED.
2." : "OR CLOCK APPEARS ON DISPLAY. NOTE: * indicates components with potentials above 250 V.
MAGNETRON
THERMAL
CUT-OUT
THERMAL CUT-OUT
POWER,
Tf]. HEATER
HV. RECTIFIER *
NOISE SUPPRESSION COIL
* ASYMMETRIC
RECTIFIER

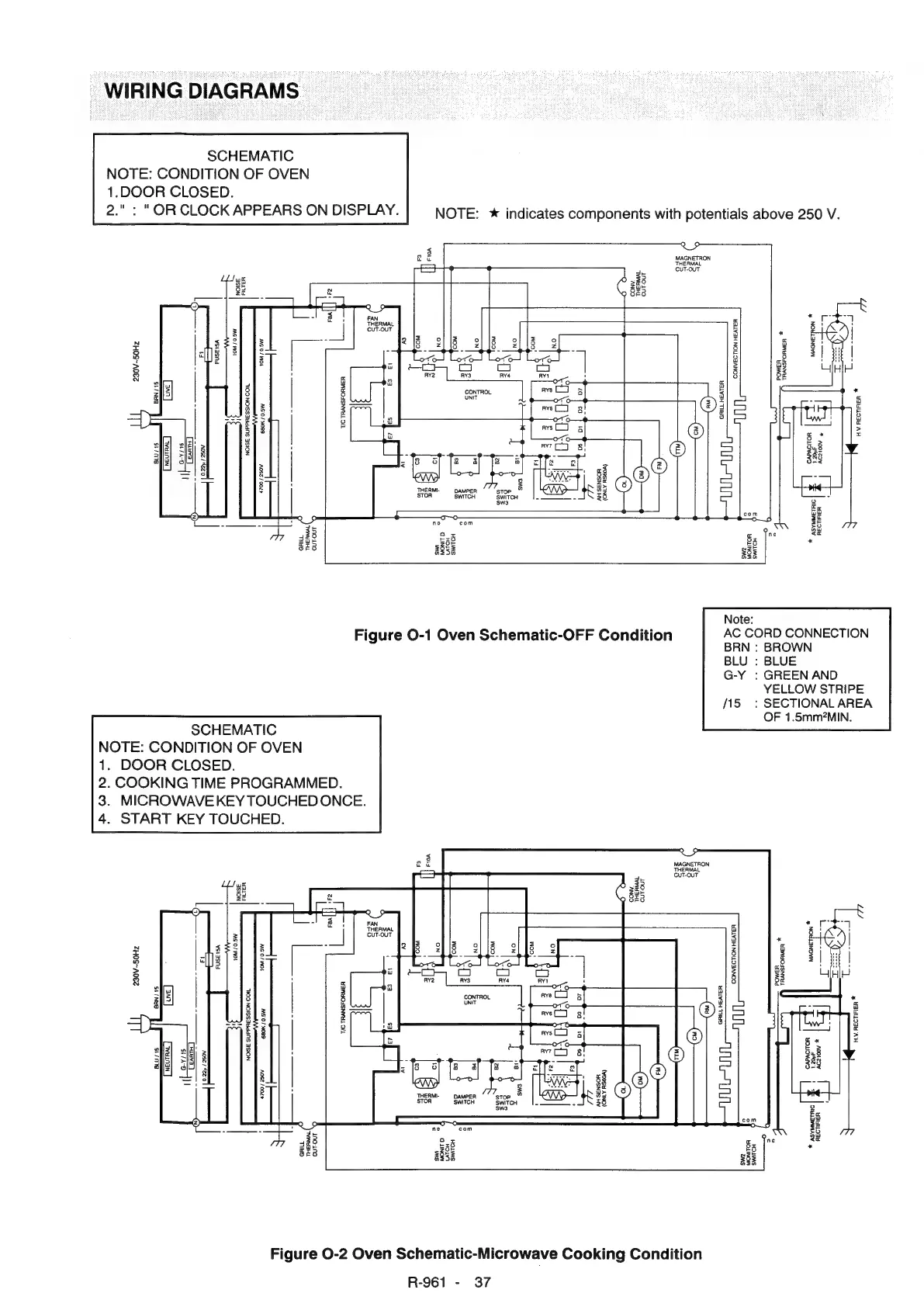

Figure O-1 Oven Schematic-OFF Condition AC CORD CONNECTION
BRN : BROWN
BLU : BLUE
G-Y : GREEN AND
YELLOW STRIPE
/15 : SECTIONAL AREA
OF 1.5mm2MIN.
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. COOKING TIME PROGRAMMED.
3. MICROWAVE KEY TOUCHED ONCE.
4. START KEY TOUCHED.
MAGNETRON
THERMAL,
CUT-OUT
THERMAL,
CUT-OUT
10M /0.5W
TRANSFORMER
230V~S0Hz POWER.
T/C TRANSFORMER,
HV. RECTIFIER *
NOISE SUPPRESSION COIL
Figure O-2 Oven Schematic-Microwave Cooking Condition
