R990K(W)
4 – 1
R990K(W)
Service Manual

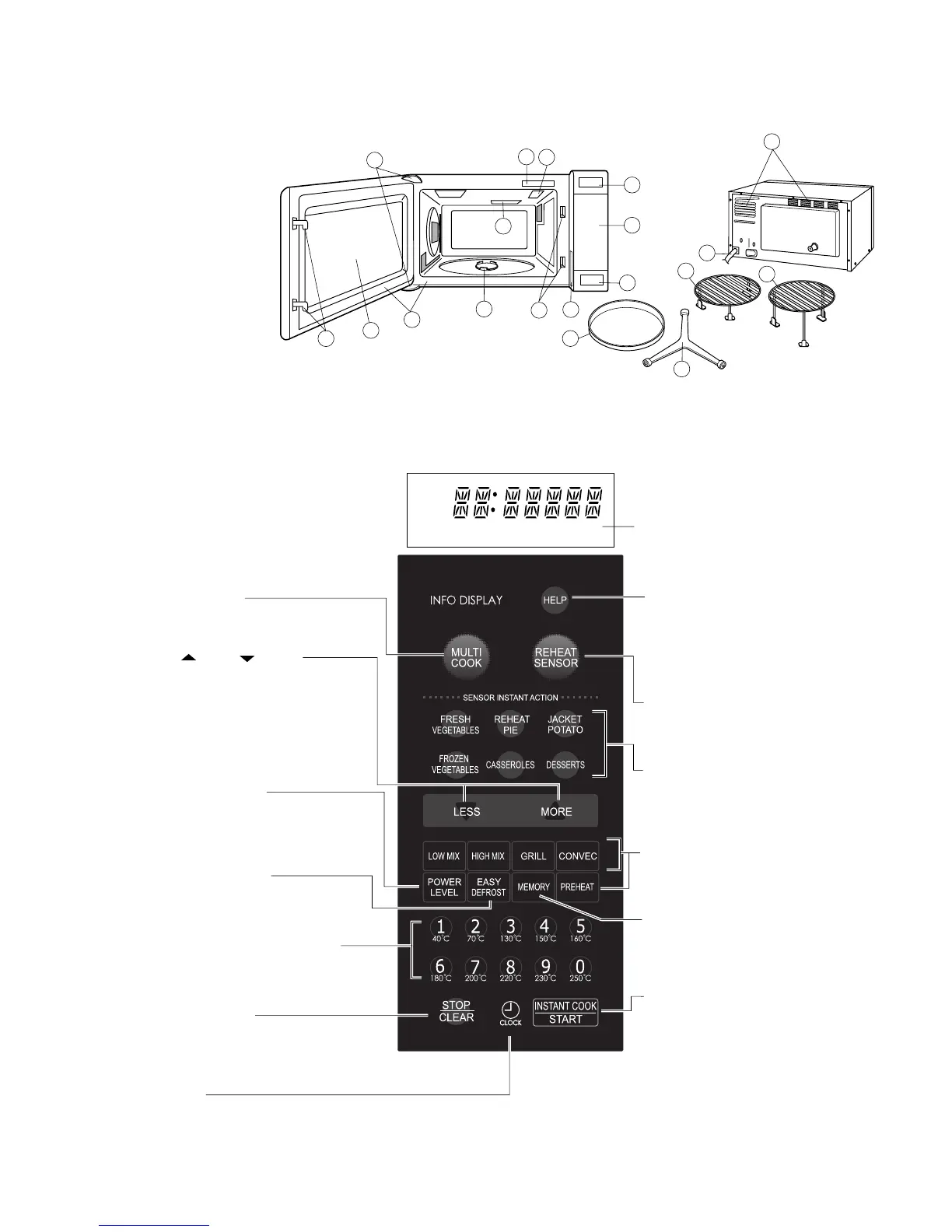

CHAPTER 4. APPEARANCE VIEW
[1] OVEN
1. Ventilation opening
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seal and sealing surfaces
7. Door open button
8. Touch control panel
9. Digital readout
10.Wave guide cover
11.Coupling
12.Menu label
13.Rating label 14. low rack 15. High rack 16. Power supply cord 17. Turntable 18. Roller stay
[2] TOUCH CONTROL PANEL
NOTE: Some one-touch cooking features such as "INSTANT" Cook are disabled after one minute when the ovenis not in use. These fea-
tures are automatically enabled when the door is opened and closed or the STOP/CLEAR pad is pressed.
1
10
2
12
9
8
7
5
17
18
14
15
13
11
4
6
3
4
16
MULTI COOK PAD
Press to select Multi Cook
mode.
MORE ( ), LESS ( ) PADS
Press to increase/decrease the time in
one minute increments during cooking or
to alter the doneness for the Sensor In-
stant Action, Reheat Sensor, Multi Cook
or Easy Defrost modes.
POWER LEVEL PAD
Press to select microwave power setting.
If not pressed, HIGH is automatically se-
lected.
EASY DEFROST PAD
Press to defrost meat by entering weight
only.
NUMBER AND TEMPERATURE PADS
Press to enter cooking times, clock time, con-
vection temperature or to select the Multi
Cook menus.
STOP/CLEAR PAD
Press to clear during programming.
Press once to stop operation of oven dur-
ing cooking; press twice to cancel cook-
ing program.
CLOCK PAD
Press to set Clock
HELP PAD
Press to select auto start, in-
formation guide on/off, child
lock, demonstration modes or
info on pad.
Press to get cooking informa-
tion.
REHEAT SENSOR PAD
Press to select 3 popular Reheat
menu.
SENSOR INSTANT ACTION
PADS
Press once to cook or reheat 6
popular menus. (See NOTE)
CONVECTION COOKING
FUNCTION PADS
Press to cook for each func-
tion.
MEMORY PAD
Press to enter the frequently
used cooking program.
Press to recall the memorized
program.
INSTANT COOK/START PAD
Press once to cook for 1 minute
at HIGH or increase by 1 mi-
nute multiples each time this
pad is pressed during Micro-
wave, Convection, Grill or Mix
cooking.
(See NOTE)
Indicator
MIX CONV
DEFROST
SENSOR
COOK KG HELP
