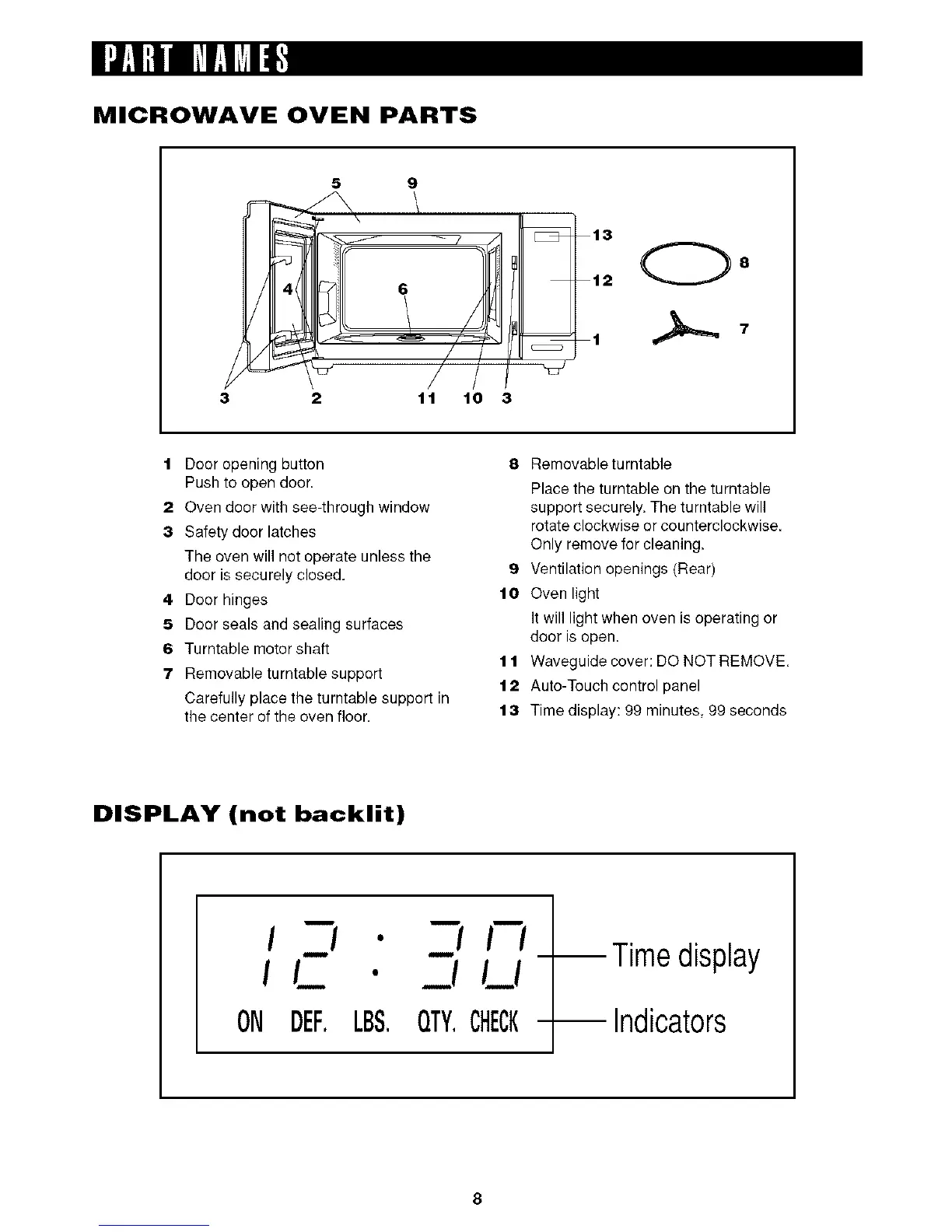

MICROWAVE OVEN PARTS
P_
4_
f
3
9
11 10 3
8
1 Door opening button
Push to open door.
2 Oven door with see-through window
3 Safety door latches
The oven will not operate unless the
door is securely closed.
4 Door hinges
5 Door seals and sealing surfaces
6 Turntable motor shaft
7 Removable turntable support
Carefully place the turntable support in
the center of the oven floor.
8 Removable turntable
Place the turntable on the turntable
support securely. The turntable will
rotate clockwise or counterclockwise.
Only remove for cleaning.
9 Ventilation openings (Rear)
10 Oven light
It will light when oven is operating or
door is open.
11 Waveguide cover: DO NOT REMOVE.
12 Auto-Touch control panel
13 Time display: 99 minutes 99 seconds
DISPLAY (not backlit)
I
!
I • I
I i
/_ • _! /_!
ON DEF, LBS, QTY,CHECK
Timedisplay
Indicators
8
